DAKEFPV F405 WING Fixed-Wing Flight Controller

£56.99
£56.99
Please hurry! Only 1 left in stock
Subtotal: £56.99
10 customers are viewing this product

2-Year Warranty

Quality parts, fully tested before dispatch.

30-Day Returns

Hassle-free returns if you change your mind.

Dispatched in 24h

In stock now — fast, tracked worldwide shipping.
DAKEFPV F405 WING Fixed-Wing Flight Controller

Vendor: RCCRAFTER

DAKEFPV F405 WING Fixed-Wing Flight Controller

£56.99

Vendor: RCCRAFTER

DAKEFPV F405 WING Fixed-Wing Flight Controller

£56.99

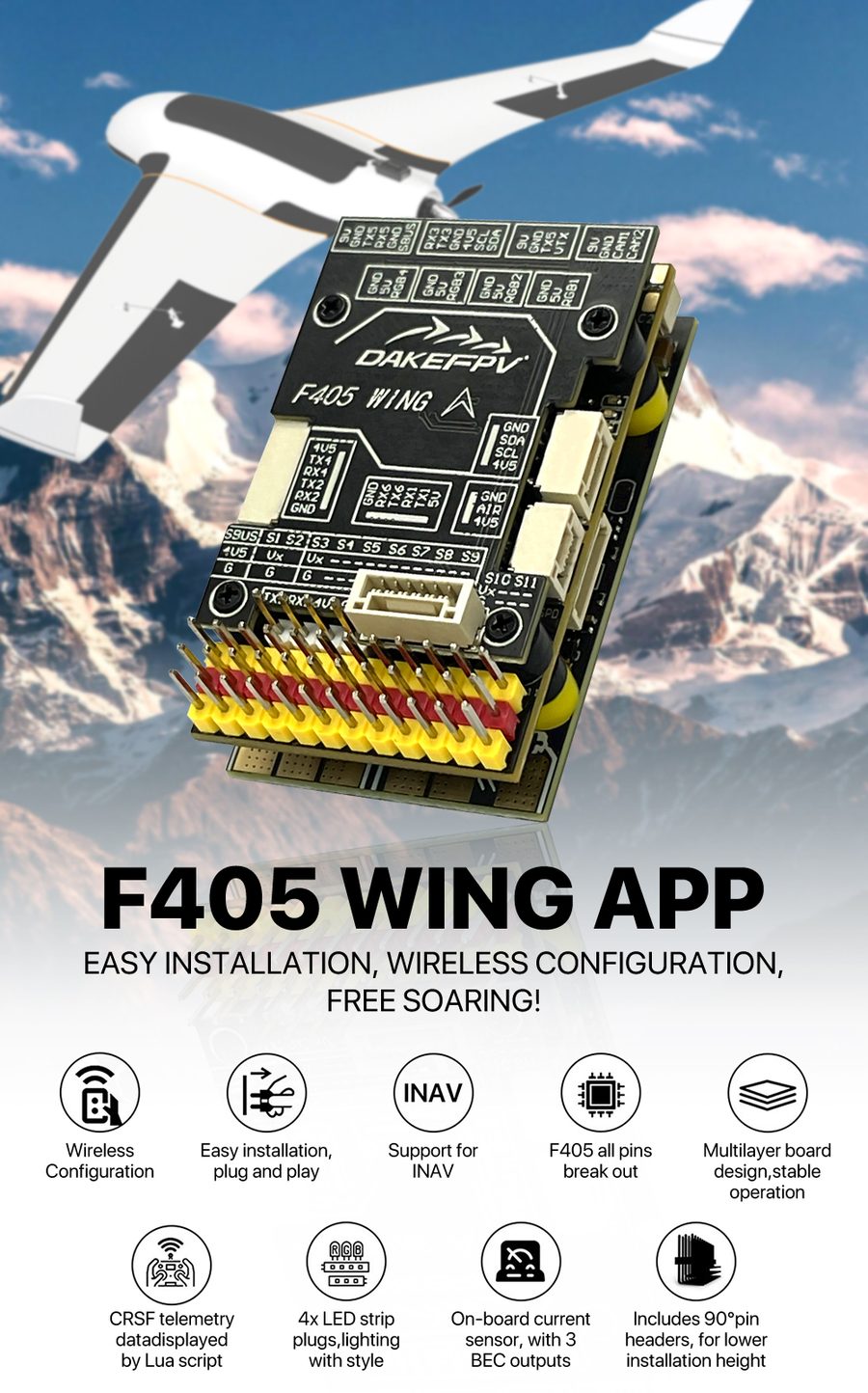

Features:

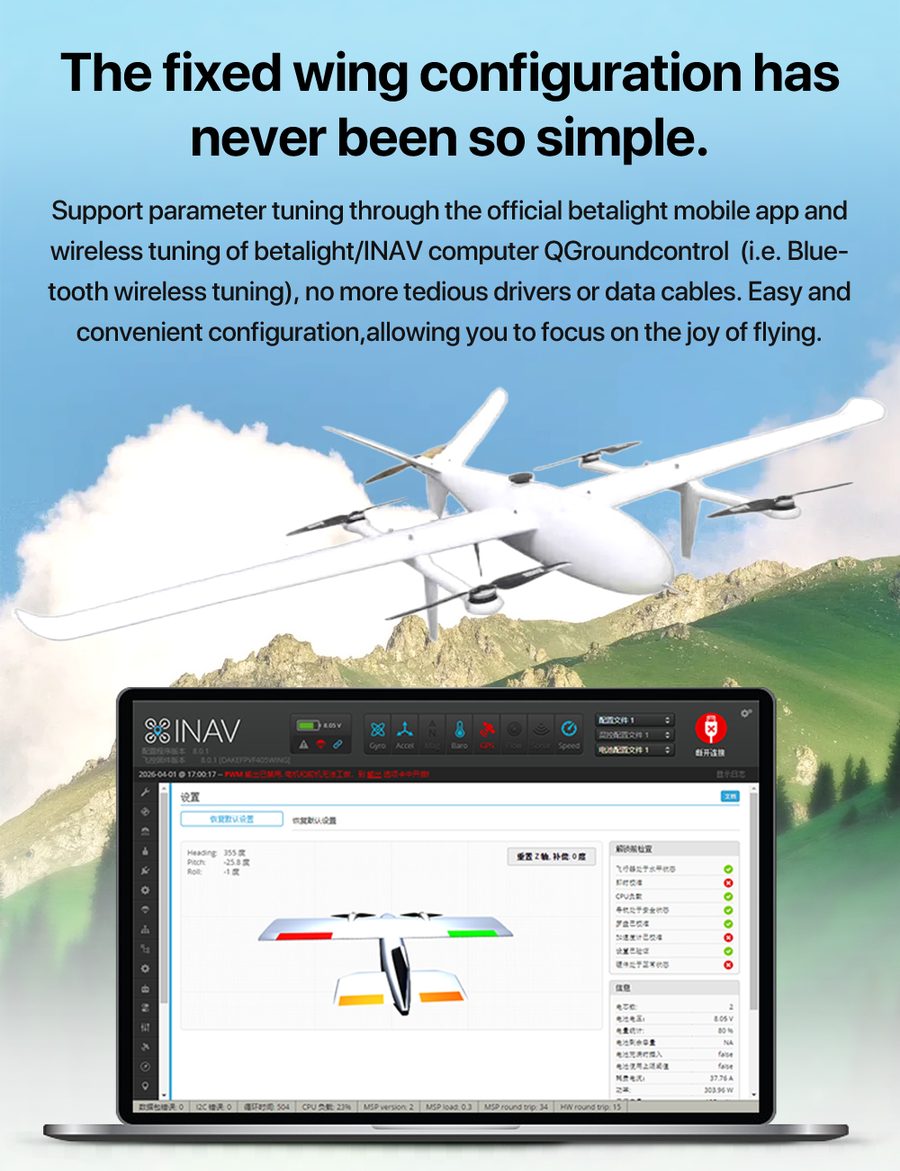

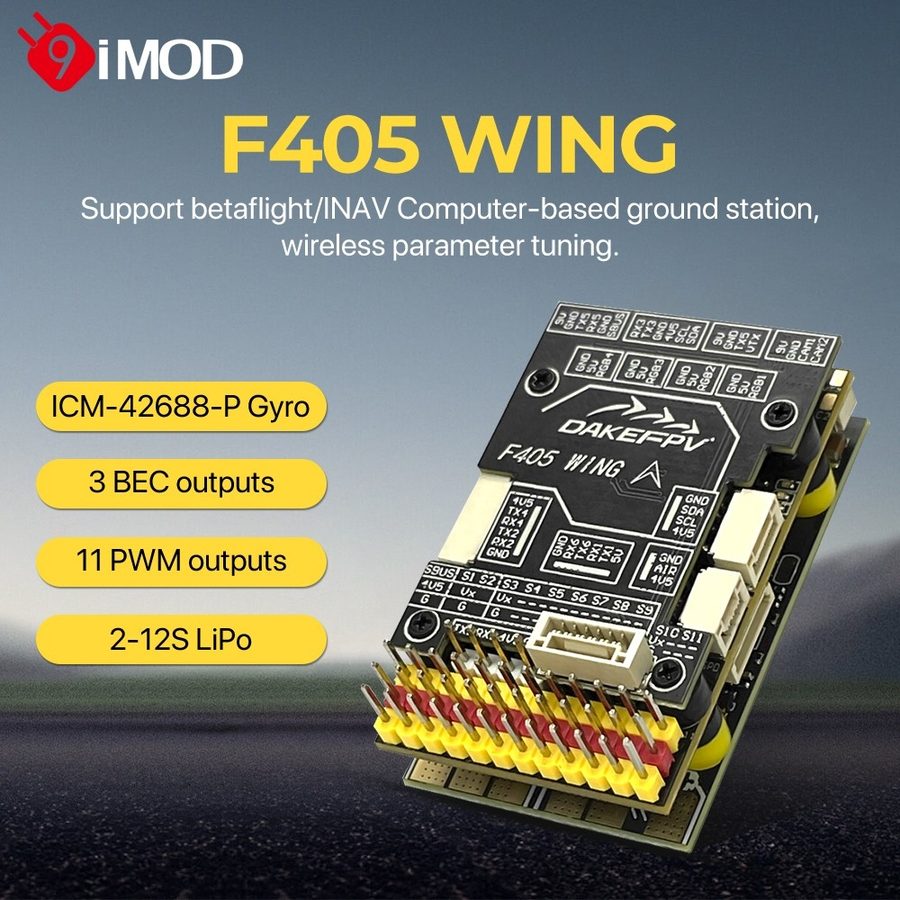

1. Support betaflight/INAV computer-based ground station, wireless parameter tuning
2. Image transmission, GPS, Camera, receiver and other accessories can be directly connected for use, making image transmission and installation easier
3. Onboard current sensor, image transmission supports 9V voltage output

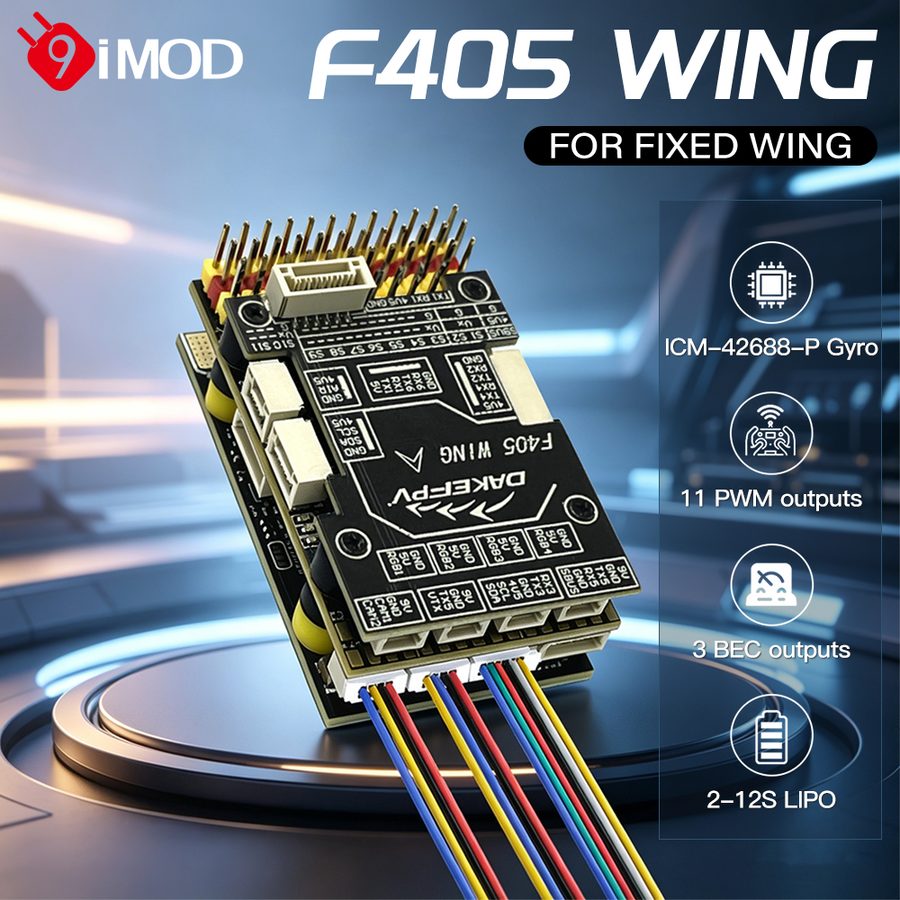

4. Up to 11 PWM outputs can be configured for motor and servo control.
5. 4x LED strip help to make your plane shine. With-connectors, no need to solder.
6. Simply plug the ELRS/TBS receiver into the flight controller's UART1 port and enable lua script in OpenTX/EdgeTX to display telemetry data.
7. Suitable for a variety of fixed-wing planes

Description:
Supports Betaflight & INAV wireless tuning, features built-in current sensor, 9V VTX output, 11 configurable PWM channels, plug-and-play LED strips and easy ELRS/TBS receiver telemetry setup for convenient installation and flexible flight control.

Specifications:

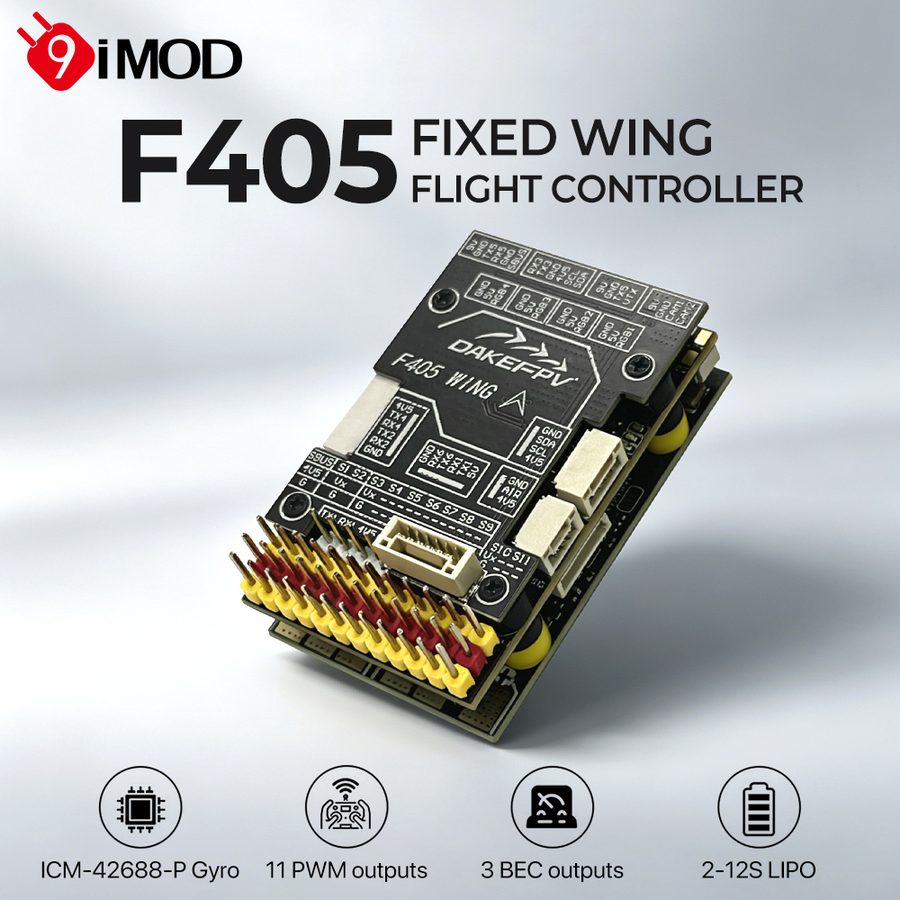

Product Name: DAKEFPV F405 WING FC board
MCU: STM32F405,168MHz,1MB Flash
IMU(Gyro&Accelerometer): ICM-42688-P
Barometer: SPL006-001
OSD Chip: AT7456E
Wireless Configuration: support
LED Strip: support
Firmware Support: INAV
Power Input: 2-12S
Blackbox: MicroSD Card Slot
UART: 6 sets(USART1, USART2, USART3, UART4, UART5, UART6(Dedicated for board Telemetry connection))
I2C: 1x Used for magnetometer, digital airspeed sensor4x (VBAT, Current, RSSI, Analog
AirSpeed)12x (11+1“LED"pad)
ADC: 4x (VBAT, Current, RSSI, Analog AirSpeed)
PWM: 12x (11+1"LED"pad)
ELRS/CRSF receiver Supported,connected to UART1
SBUS: Built in inverter for SBUS input (UART2-RX)
LED: 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
RSSI: Supported,Named as RS
Supported FC Firmware: INAV:DAKEFPVF405WING(default)
size: 52x32x19mm

Package contents:
1* F405 WING Kit

Technical Specifications

Brand RCCRAFTER
Product Name DAKEFPV F405 WING FC board
Mcu STM32F405,168MHz,1MB Flash
Accelerometer) ICM-42688-P
Barometer SPL006-001
Osd Chip AT7456E
Wireless Configuration support
Led Strip support
Firmware Support INAV
Power Input 2-12S
Blackbox MicroSD Card Slot
Adc 4x (VBAT, Current, RSSI, Analog AirSpeed)
Pwm 12x (11+1"LED"pad)
Sbus Built in inverter for SBUS input (UART2-RX)
Led 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
Rssi Supported,Named as RS
Supported Fc Firmware INAV:DAKEFPVF405WING(default)
Size 52x32x19mm
Item Weight 50 g
Package Size (cm) 18*15*4
Shipped Weight 58 g
