ROCKET-RC V2 4268/4274/4282/4292 Series Motor
- £96.99
- £96.99
- Unit price
- per
Please hurry! Only 30 left in stock
10 customers are viewing this product
Couldn't load pickup availability
2-Year Warranty
Quality parts, fully tested before dispatch.
30-Day Returns
Hassle-free returns if you change your mind.
Dispatched in 24h
In stock now — fast, tracked worldwide shipping.
Technical Specifications
| Brand | ROCKET-RC |
| Rotor Poles | 4 |
| Max Rpm | 50000 |
| Shaft | 5mm |
| Connector | 6.5mm gold |
| Watt | 2200 |
| Weight | 340g |
| Length Of Extend Shaft | 18mm |
| Motor Size(Mm) | ∅ 40 / ∅ 42 ( with fans ) x68 |
| Kv(Rpm/Volt) | 2450KV |
| Max Voltage | < |
| Max Amps | 105A |
| Io | 2.7A |
| Resistance | 0.0056 |
| Item Weight | 972.4 g |
| Package Size (cm) | 18*15*4 |
| Shipped Weight | 980.4 g |
Features:
1.Brushless Motor Design: Surpass Hobby Rocket-RC Supersonic V2 Brushless Motor 4268 4274 4282 4292 is pole-4 rotor design, with strong torque and stable output power,Removable/replaceable rotor design, Convenient for cleaning and maintenance
2.For Traxxas Brushless Motor: Suitable for 1/8 1/7 RC Car Truck Off Road on Road Traxxas Wltoys HSP.Built in switch BEC output, low voltage 5A/6.1V, high voltage 5A/7.4V, compatible with high torque and high pressure steering gear. Provide rich personalized settings with the setting card
3.RC Car Brushless Motor Material: High hardness aluminum CNC case, high temperature resistant copper wires, 0.2mm stator .Explosion-proof rotor, high toughness stainless steel shaft, high precision and high quality bearing make the motor super durable.Effectively extend the service life of the motor and improve work efficiency

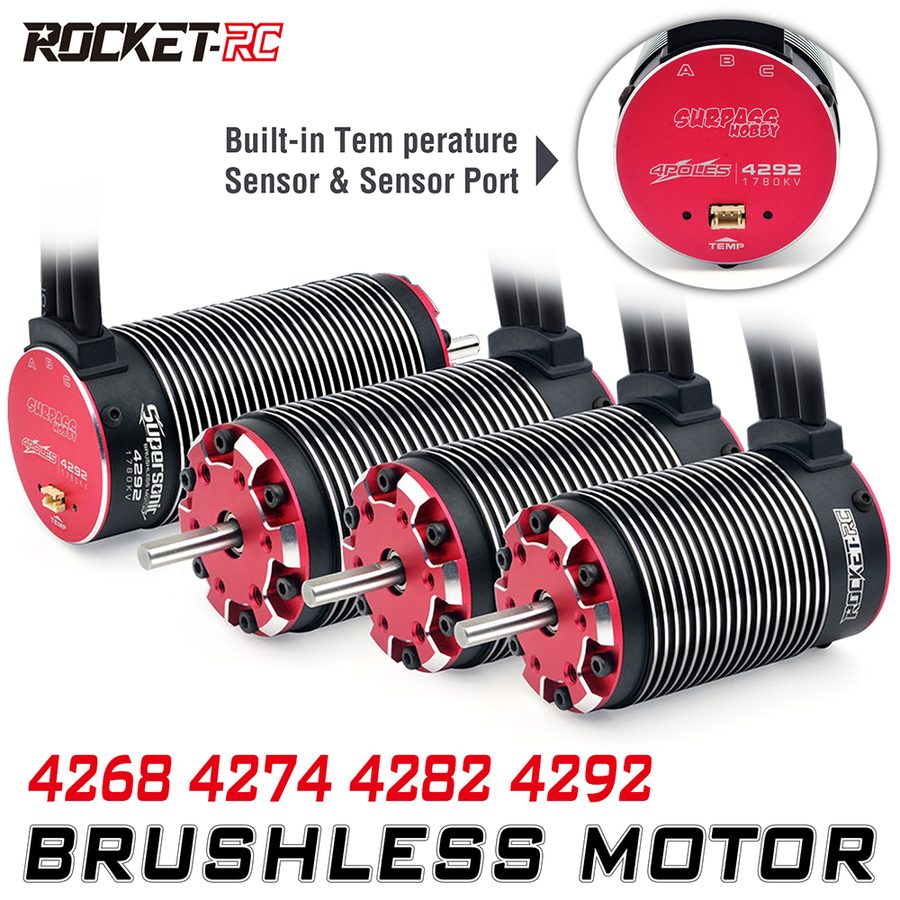

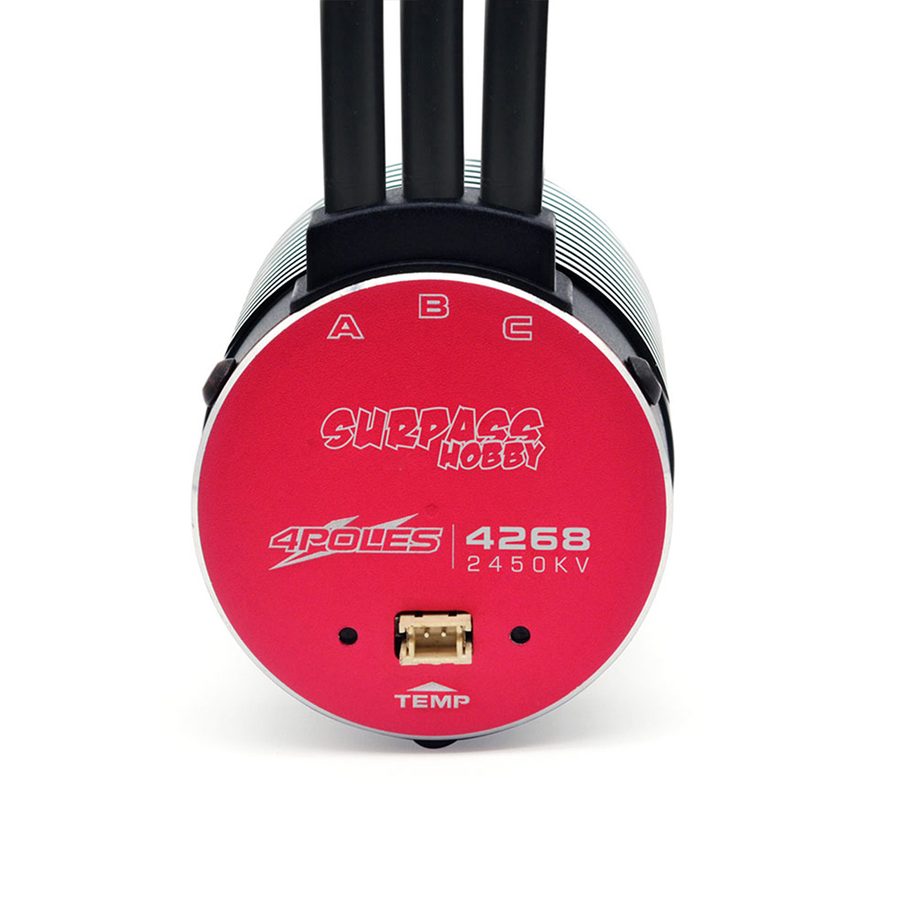

4.Brushless RC Motor Protection Function: The motor has built-in temperature unit and ports which can realize the motor temperature .Overheat protection function by matching with the ESC
5.RC Brushless Motor ESC Combo: Work with Supersonic V2 120A or 150A ESC and Surpass Hobby ROCKET -V2 Supersonic LED ESC Program Card, you can consult our customer service to recommend to you
Description:
Surpass Hobby Rocket-RC Supersonic V2 Brushless Motor 4268 4274 4282 4292 for 1/8 1/7 RC Car Truck Off Road on Road Traxxas Wltoys HSP. Pole-4 rotor design, with strong torque and stable output power,Removable/Replaceable Rotor design, Convenient for cleaning and maintenance
Specifications:
Brand: S
Rotor poles: 4
Max RPM: 50000
Shaft: 5mm
Connector: 6.5mm gold

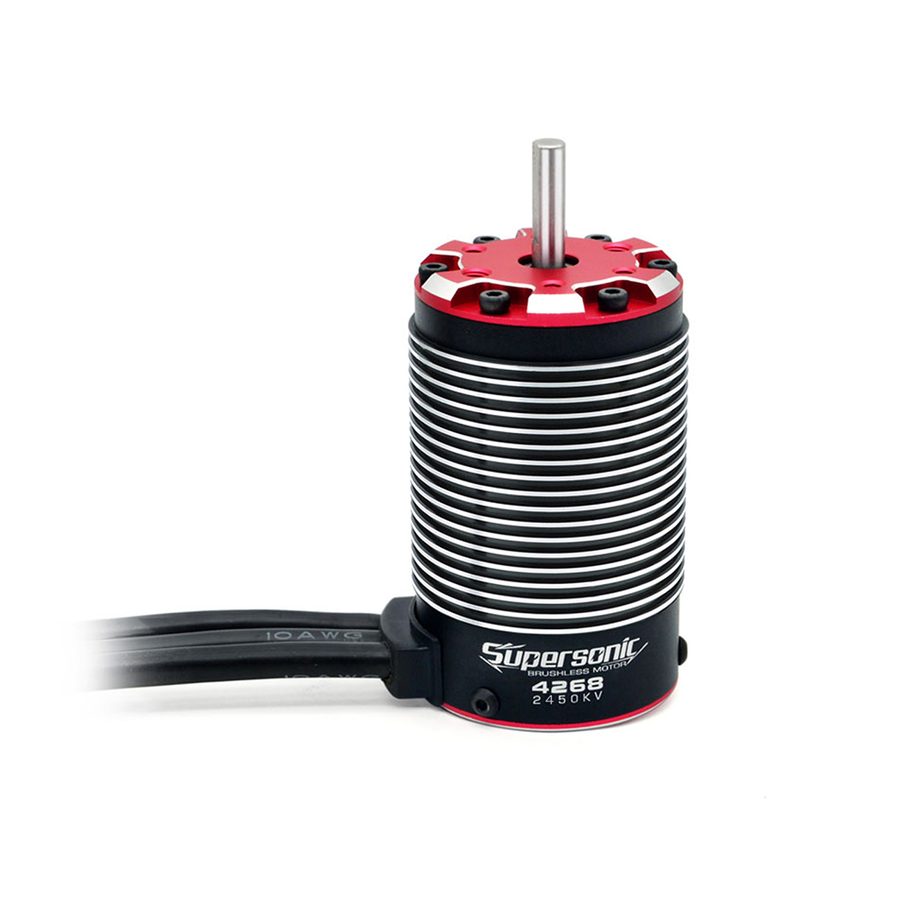

1. 4268 Supersonic Brushless Motor
Watt: 2200
Weight: 340g
Length of extend shaft: 18mm
Motor Size(mm): ∅ 40 / ∅ 42 ( with fans ) x68
KV(RPM/Volt): 2450KV
Max voltage: <21V
Max amps: 105A
IO: 2.7A
Resistance: 0.0056
KV(RPM/Volt): 2200KV
Max voltage: <23V
Max amps: 95A
IO: 2.3A
Resistance: 0.0069
KV(RPM/Volt): 1980KV
Max voltage: <25V
Max amps: 88A
IO: 1.8A
Resistance: 0.0115
KV(RPM/Volt): 1650KV
Max voltage: <30V
Max amps:72A
IO: 1.5A
Resistance: 0.0132
2. 4274 Supersonic Brushless Motor
Watt: 2800
Motor Size(mm): ∅ 40 / ∅ 42 ( with fans ) x74
Weight: 380
Length of extend shaft: 18mm
KV(RPM/Volt): 2500KV
Max voltage: <20V
Max amps: 140A
IO: 2.8A
Resistance: 0.0049
KV(RPM/Volt): 2025KV
Max voltage: <25V
Max amps: 112A
IO: 2.4A
Resistance: 0.0061
KV(RPM/Volt): 1850KV
Max voltage: <26V
Max amps: 108A
IO: 1.6A
Resistance: 0.0076
KV(RPM/Volt): 1500KV
Max voltage: <30V
Max amps: 92A
IO: 1.1A
Resistance: 0.0142
3.4282 Supersonic Brushless Motor
Watt: 3400
Motor Size(mm): ∅ 40 / ∅ 42 ( with fans ) x82
Weight: 440
Length of extend shaft: 20mm
KV(RPM/Volt): 2150KV
Max voltage: <23V
Max amps: 150A
IO: 2.5A
Resistance: 0.0056
KV(RPM/Volt): 1780KV
Max voltage: <28V
Max amps: 120A
IO: 2.2A
Resistance: 0.0067
KV(RPM/Volt): 1600KV
Max voltage: <31V
Max amps: 110A
IO:1.9A
Resistance: 0.0083
KV(RPM/Volt): 1450KV
Max voltage: <34V
Max amps: 100A
IO:1.8A
Resistance: 0.0132
4. 4292 Supersonic Brushless Motor
Watt:4200
Motor Size(mm): ∅ 40 / ∅ 42 ( with fans ) x92
Weight: 506g
Length of extend shaft: 20mm
KV(RPM/Volt): 1780KV
Max voltage: <28V
Max amps: 150A
IO: 2.4A
Resistance: 0.0063
KV(RPM/Volt): 1500KV
Max voltage: <33V
Max amps: 128A
IO: 2.2A
Resistance: 0.0073
KV(RPM/Volt): 1300KV
Max voltage: <36V
Max amps: 115A
IO: 2.1A
Resistance: 0.0093
KV(RPM/Volt): 1030KV
Max voltage: <42V
Max amps: 100A
IO: 1.8A
Resistance: 0.0176
Package Included:
1x SURPASSHOBBY Supersonic Brushless Motor
1x English Manual
