Airplane Parts 5.8GHz 3W FPV Camera 48CH 25/1000/2000/3000mW Drone

9IMOD 5.8GHz 3W VTX Video Transmitter FPV 48CH 25/1000/2000/3000mW Adjustable For Long Rang Racer Drone Multirotor DIY Part

Features:

1.A certain space shall be reserved when the transmitter is installed to ensure the airconvection around the module and module cooling; otherwise, if the overheatingprotection of the module is started, the power emission will be lowered and evenclosed.

2.We suggested to ensure correct voltage scope and correct positive and negativeanodes before powering-on to avoid element burning-out.

3.We suggested to confirm antenna has been installed at the RF output terminalbefore powering-on to extend the service life of transmitter.

Notice: The transmitter is equipped with temperature protection function. When the temperature of transmitter is higher than 100℃, the RF power of the Transmitter will be lowered for one level. If the temperature is still greater than 100℃, the power can be lowered for another level until the lowest power (25mW) is reached; at this time, the temperature of the Transmitter module will drop. When the temperature is lower than 95℃, the Transmitter power will return to the originally power level.

Description:

5.8GHz 3W Video Transmitterr VTX 48CH 25mW/3000mW Adjustable For Long Rang Racer Drone Multirotor DIY Part.

Specifications:

48CH 5.8G frequency range: (A.B.E.F.R.L; 5362MHz-5945MHz)

Max power: 3W (25mW/1000mW/2000mW/3000mW adjustable);

Input voltage: DC 7V-36V, supporting 2-8S battery input

Antenna connector: MMCX

Smart audio: IRC Tramp

Heat-dissipating method: aluminum alloy heat sink&fan

Hole spacing: 30.5mm x 30.5mm /3.15mm

Dimension: 37.7mm x 36.1mm x 11mm

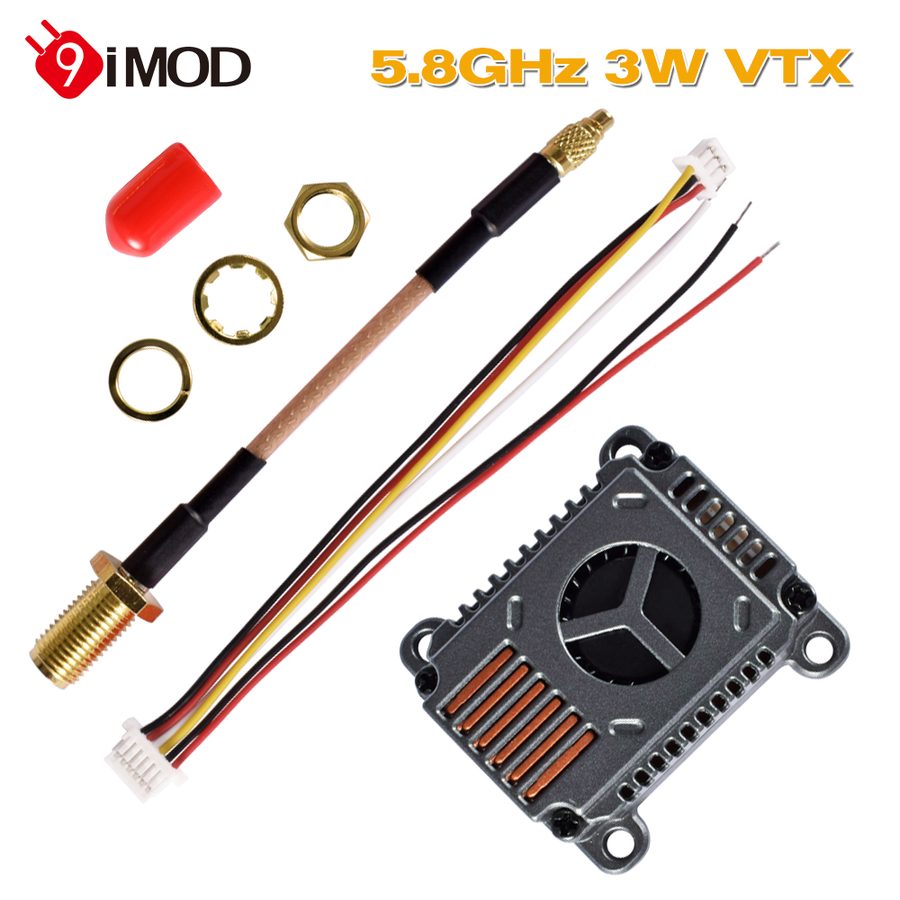

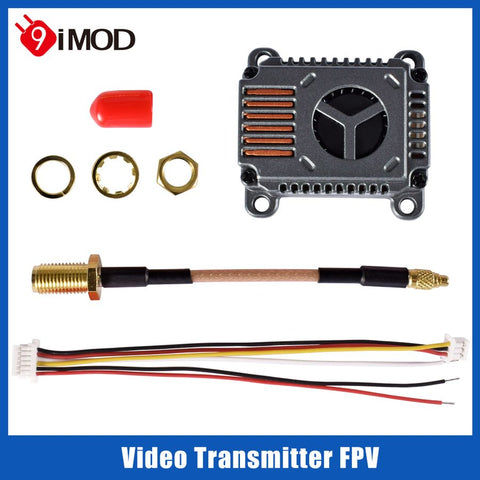

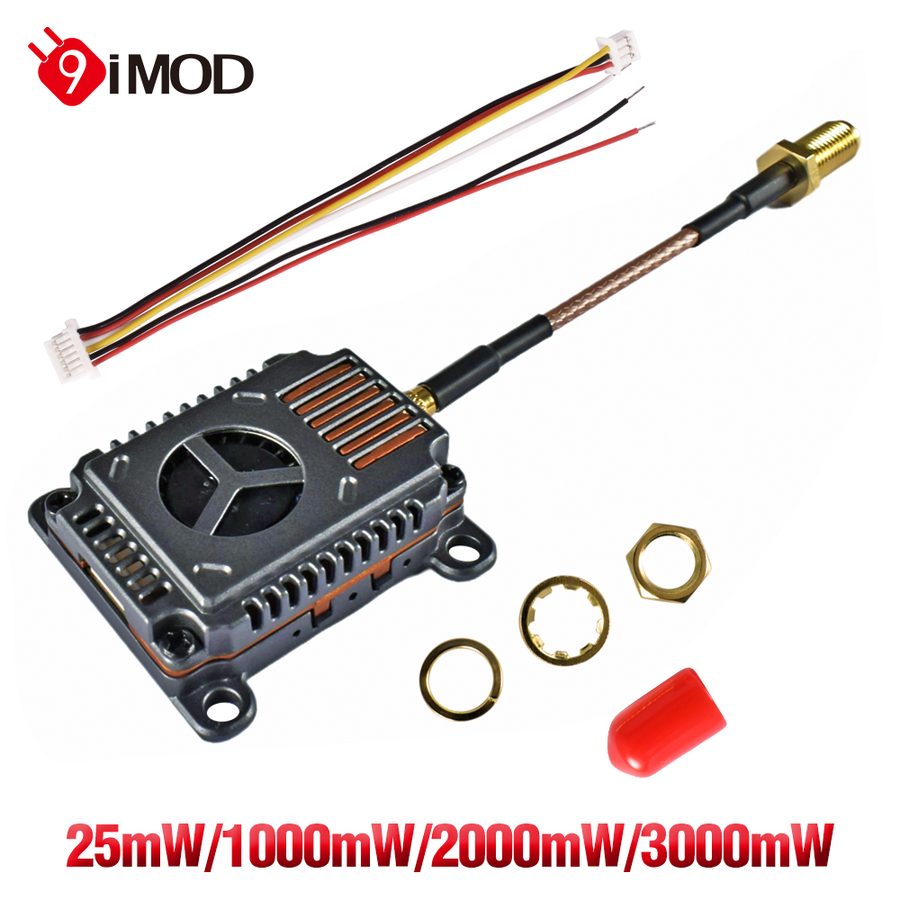

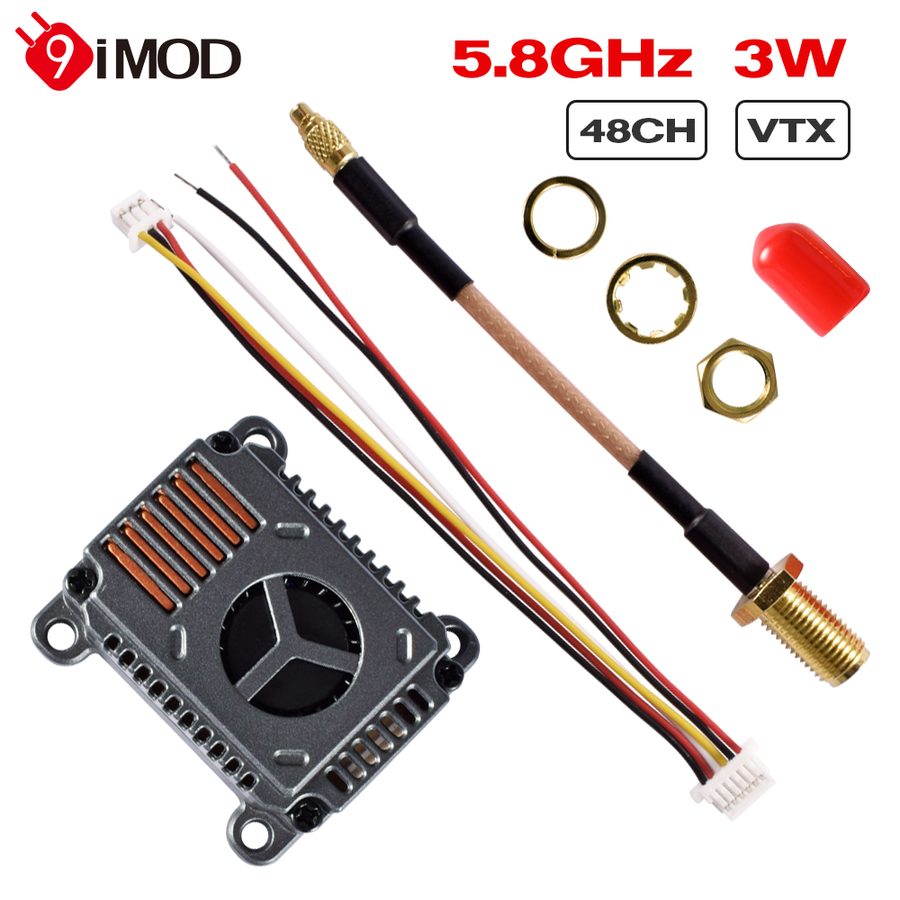

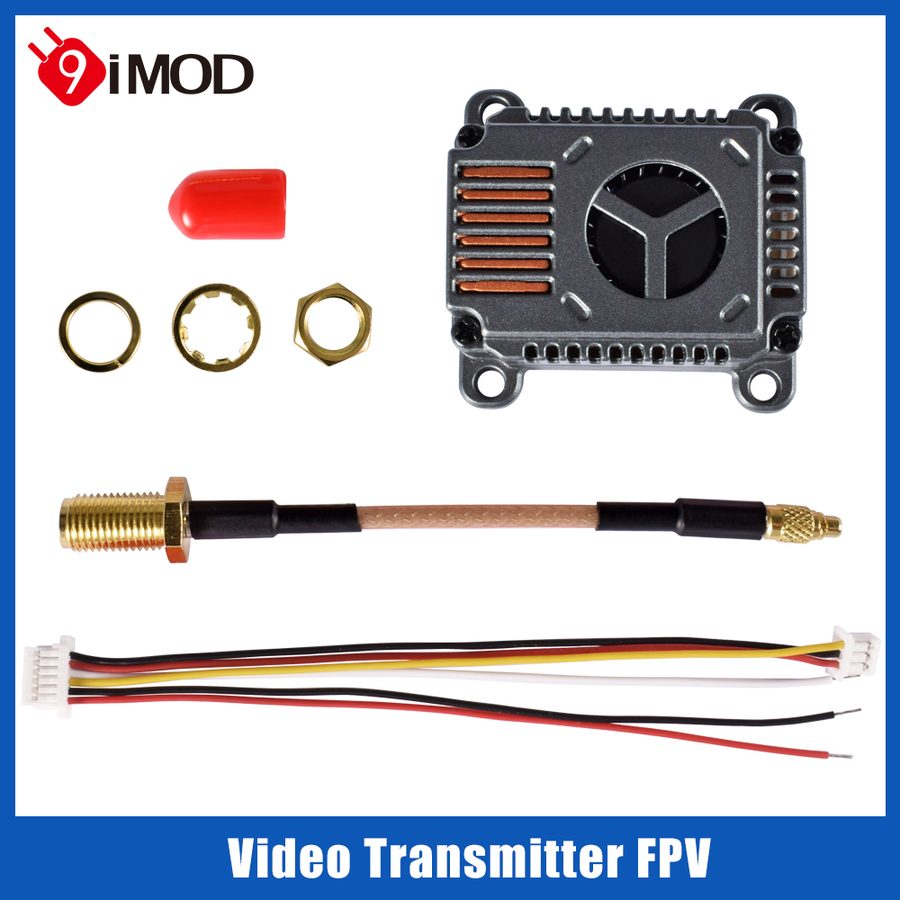

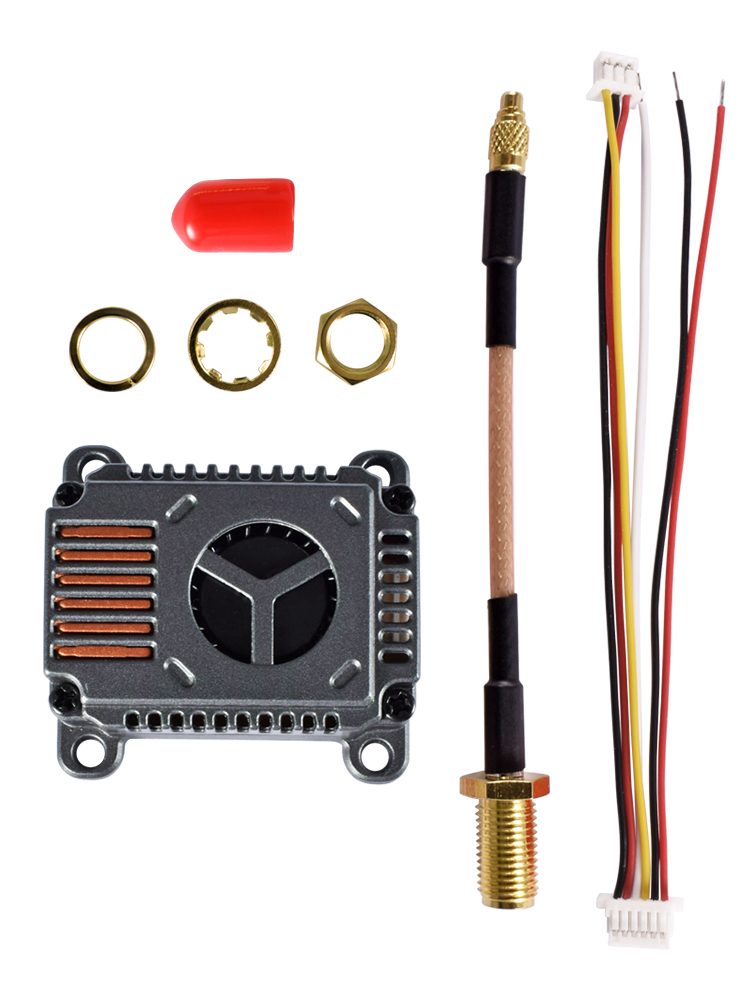

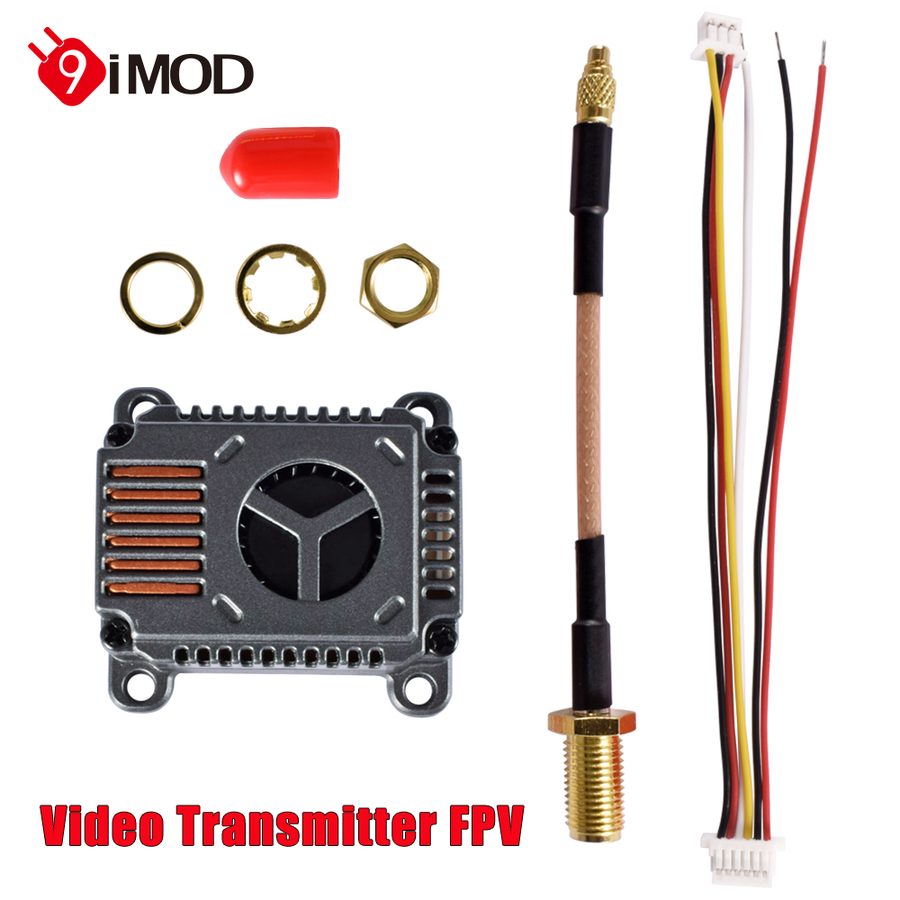

Package Included:

1 X 5.8GHz VTX

1 X MCX interface antenna connection cable

1 X 6P 1.0connecting wiring
