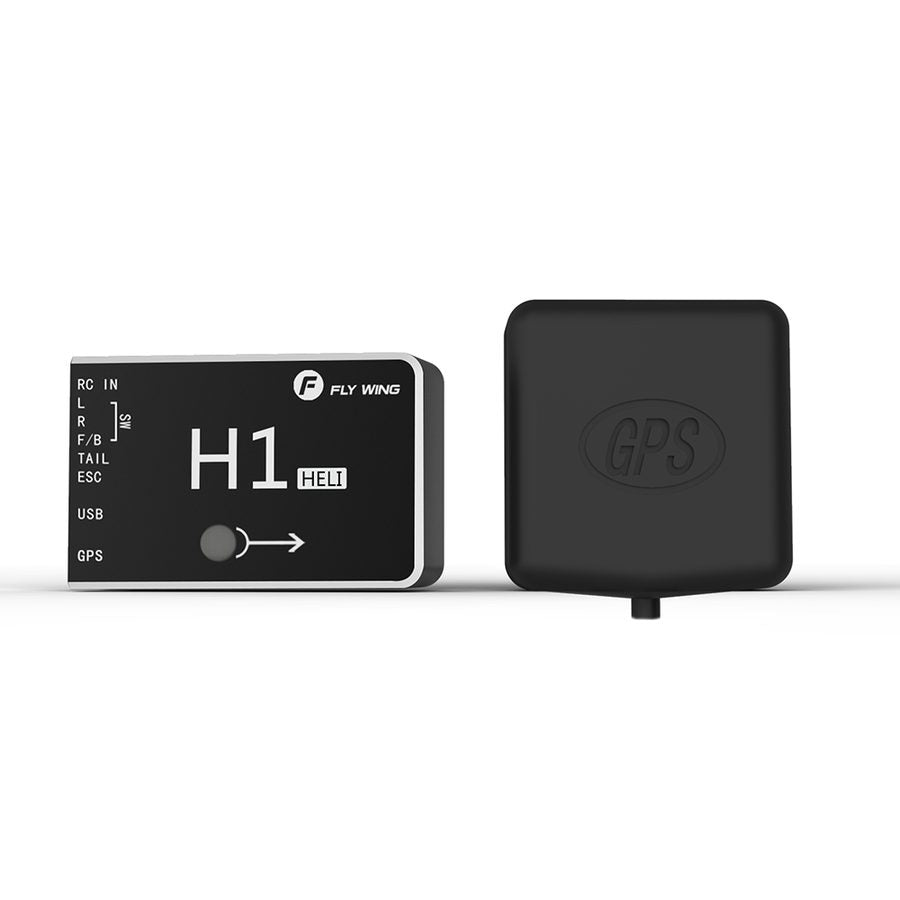

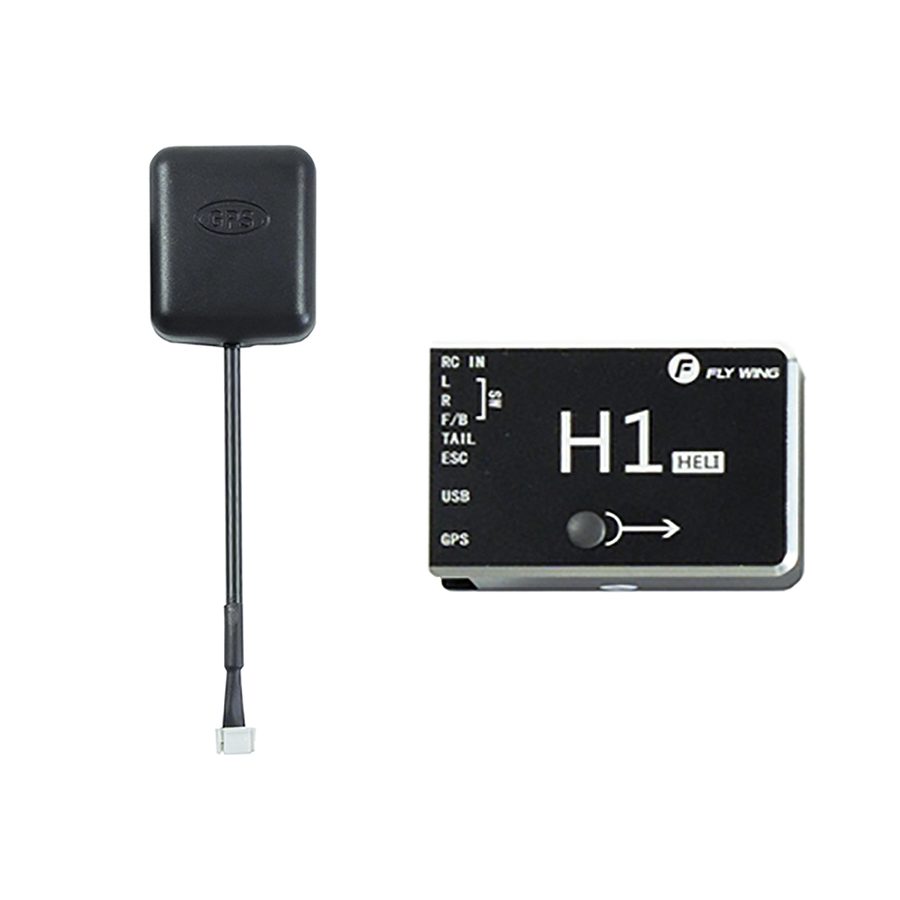

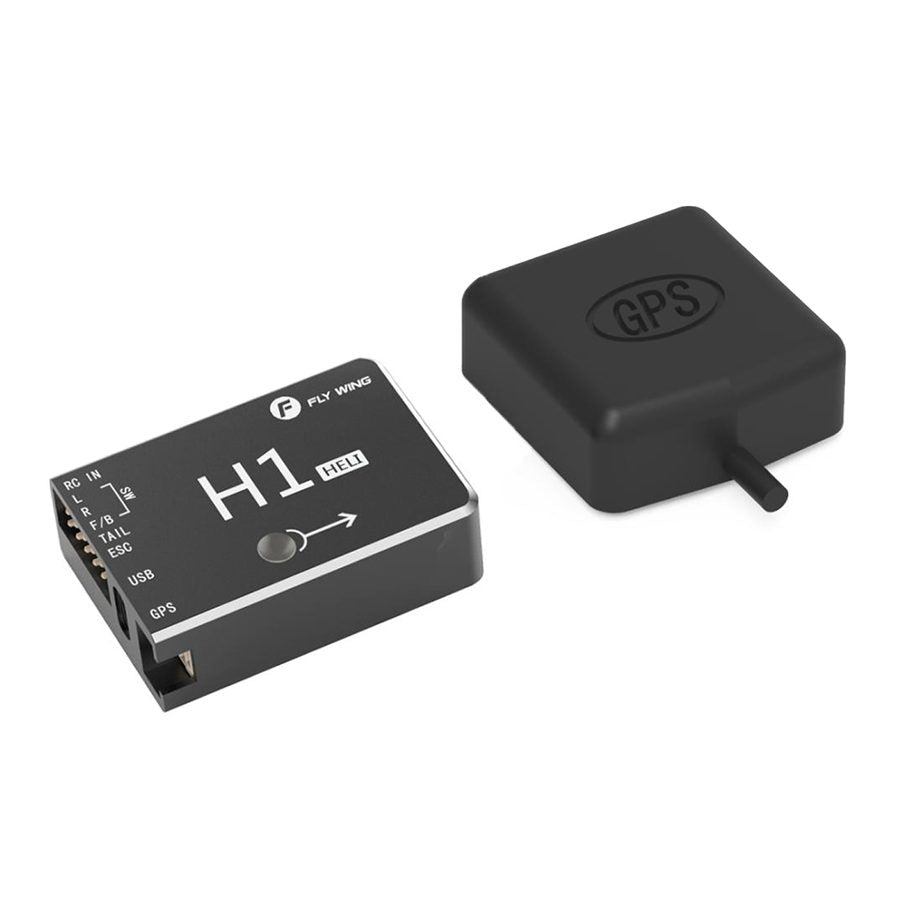

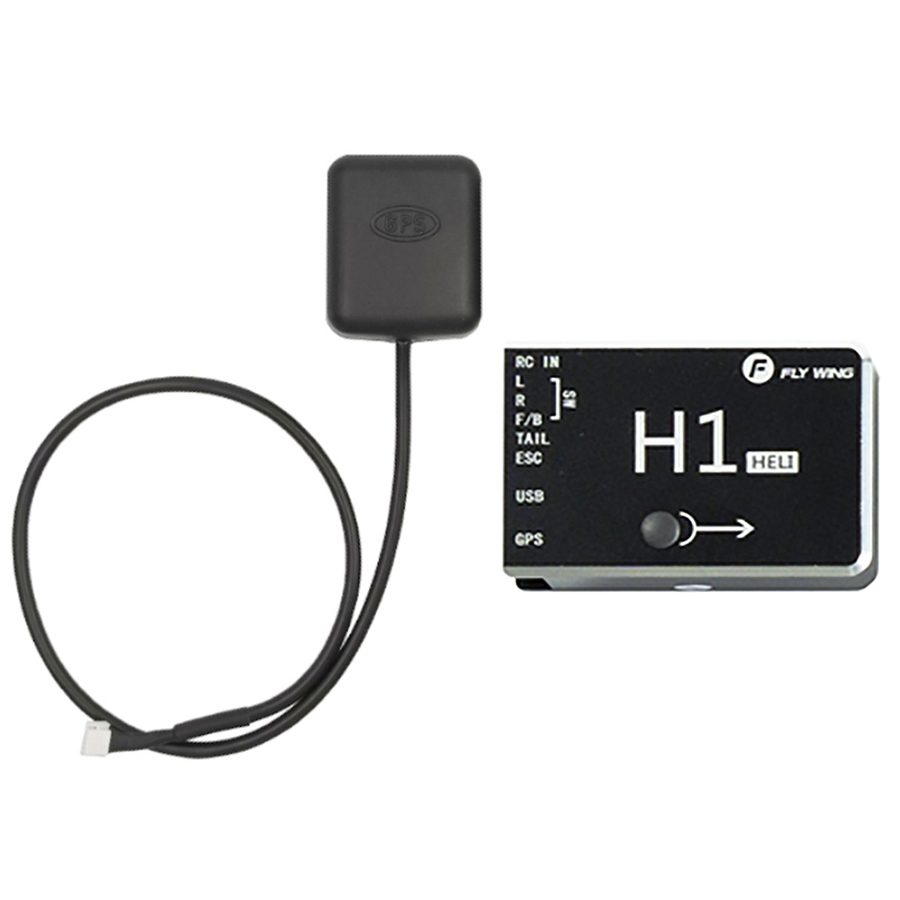

FLY WING H1 Helicopter Flight Controller HELI Standard For FW450L

Features:

1.RC Controller Application: Suitable for new built-in mainstream helicopter 450，such as FW450L FW450 ALIGN T-REX SAB GAUI Not PIXHAWK FC .Support a variety of receiver types, receiver input support ppm, s.bus and other mainstream single line mode,automatic identification.Flight Mode:GPS mode/3D mode/Home mode

2.Flight Control System Software: Ultra-simple assistant software.Support direct setting of helicopter speed.Simpler swashplate leveling , just drag the progress bar to adjust the servo.More accurate positive and negative pitch adjustment ,positive , negative , zero pitch independent setting

3.Dual RC GPS Module: GPS + GLONASS M8N high-end chip , fast startup speed and search star.Antenna precisely matched LNA low loss circuit , signal stability.Dual-mode GPS , more satellites and positioning accuracy

4.Material of The RC Controller: Adopt FPC gold-plated,PCB to ensure accurate data signals.CNC metal flight control shell : good electromagnetic shielding performance

5.TYPE-C Port RC Gyro: Easy connection.Provide greater supply current to ensure data transmission stability.Type-c port , regardless of positive and negative insertion

Note:

If you are using Spektrum transmitter and receiver, please prepare the SBUS adapter by yourself. Because the installation process is more complicated, it is not recommended to use Spektrum transmitter and receiver

Description:

FLY Wing H1 RC GPS helicopter flight controller suitable for built-in mainstream helicopter FW450 FW450 ALIGN T-REX SAB GAUI Not PIXHAWK FC.Select the installation , you can steady flight.One-key to select auto airline , support update.Forward 8 fly , backward 8 , circular route , etc .GPS + GLONASS M8N high-end chip , fast startup speed and search star.Antenna precisely matched LNA low loss circuit , signal stability.Dual-mode GPS , more satellites and positioning accuracy

Specification:

Brand name: Fly Wing

Item name: H1 Helicopter Flight Controller

Helicopter type: HR3 Flybarless Swashplate

H3 Flybarless Swashplate

Battery type: 3S,4S ,6S Lipo battery,12S do not support low voltage return

Receiver type:

S.bus / i.bus /w.bus

PPM

SUMD HD 08

Assistant operating system requirements:Win7,Win8,Win10（32 or 64 bits）

Rated system power : 2W

Rated peak power: 4 W

Flight Mode: GPS mode/3D mode/Home mode

Voltage input range: 6.0-8.4V,ESC BEC supply power（can't use 5V BEC）

Size: FC：31.4mm × 48.5mm × 18.5 mm

GPS：39 mm × 46 mm × 15mm

Working temperature: -10° C to 55° C

Hover accuracy: (GPS mode) Vertical :± 0.5 m，horizontal:± 1.5 m

Maximum wind resistance: 10 m/s

Maximum yaw rate: 3D mode about 300° /s

Maximum tilt angle: 45°（default 35° )

Maximum rising speed: 4m/s

Maximum falling speed: 4m/s

Length of line:(optional)
Long line version: 45CM
Short line version: 11CM
Weight: FC: 38.7g GPS: 28.1g

Long&short line version: 43CM&17CM
Weight: FC: 69g GPS: 30g

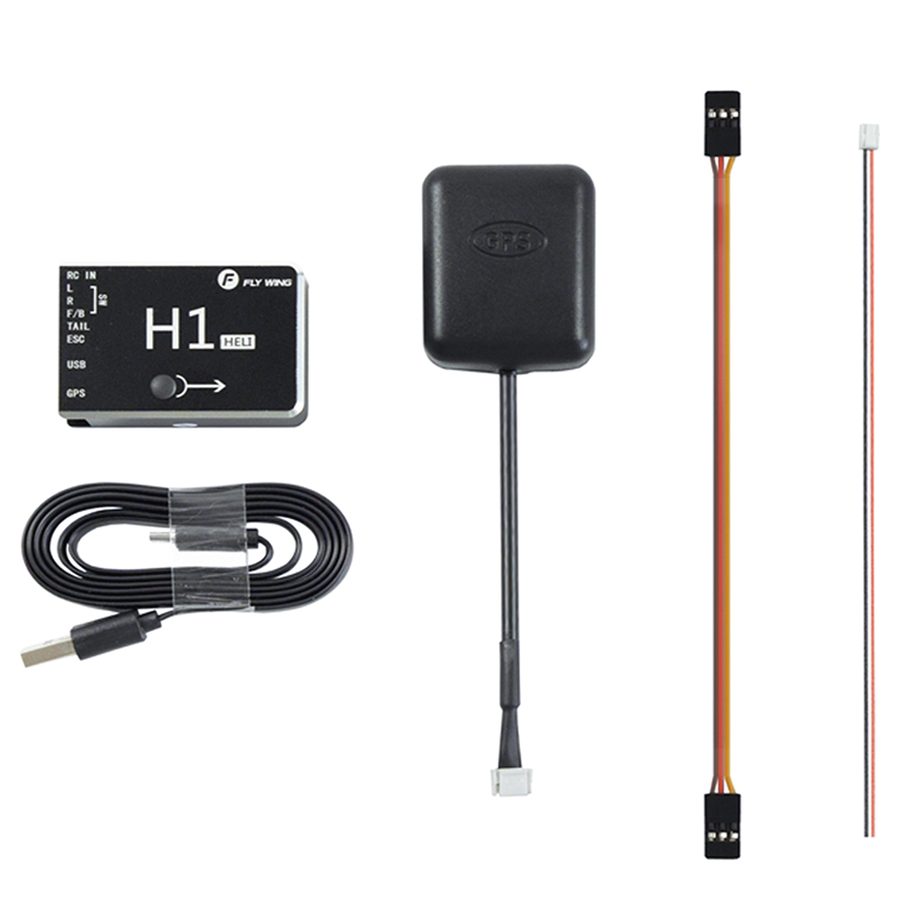

Package Included:

1x FC

1x GPS

1x Receiver connection wire

1x Voltage checking wire

1x TYPE-C wire
