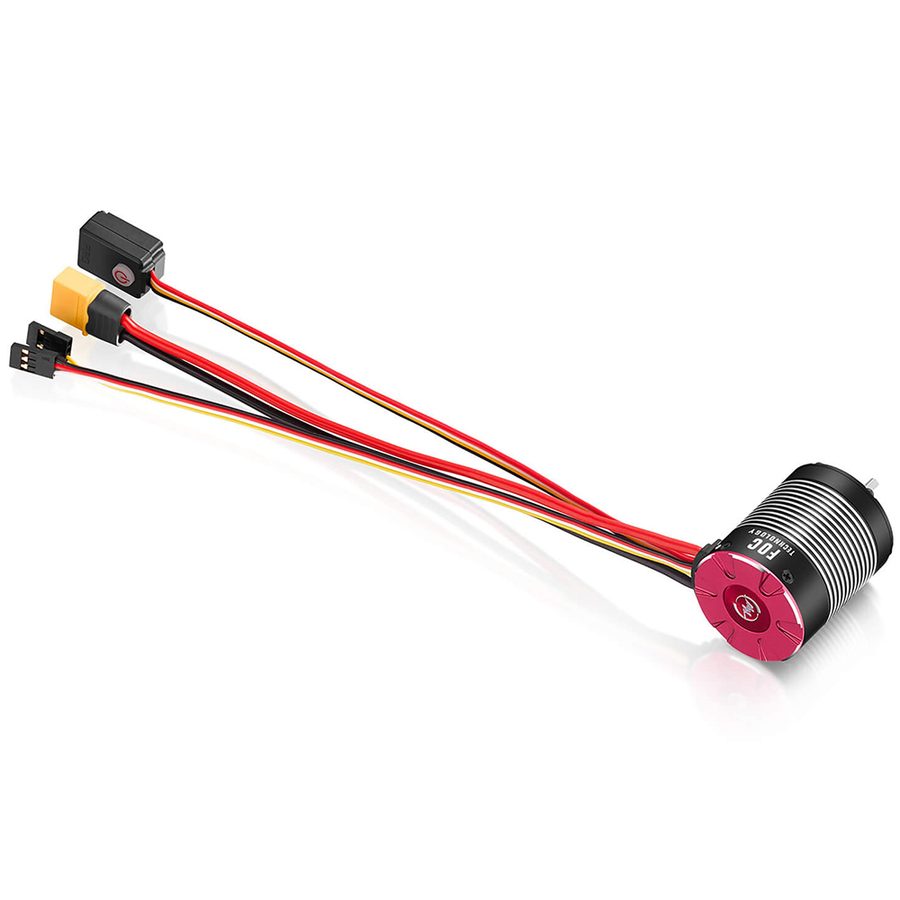

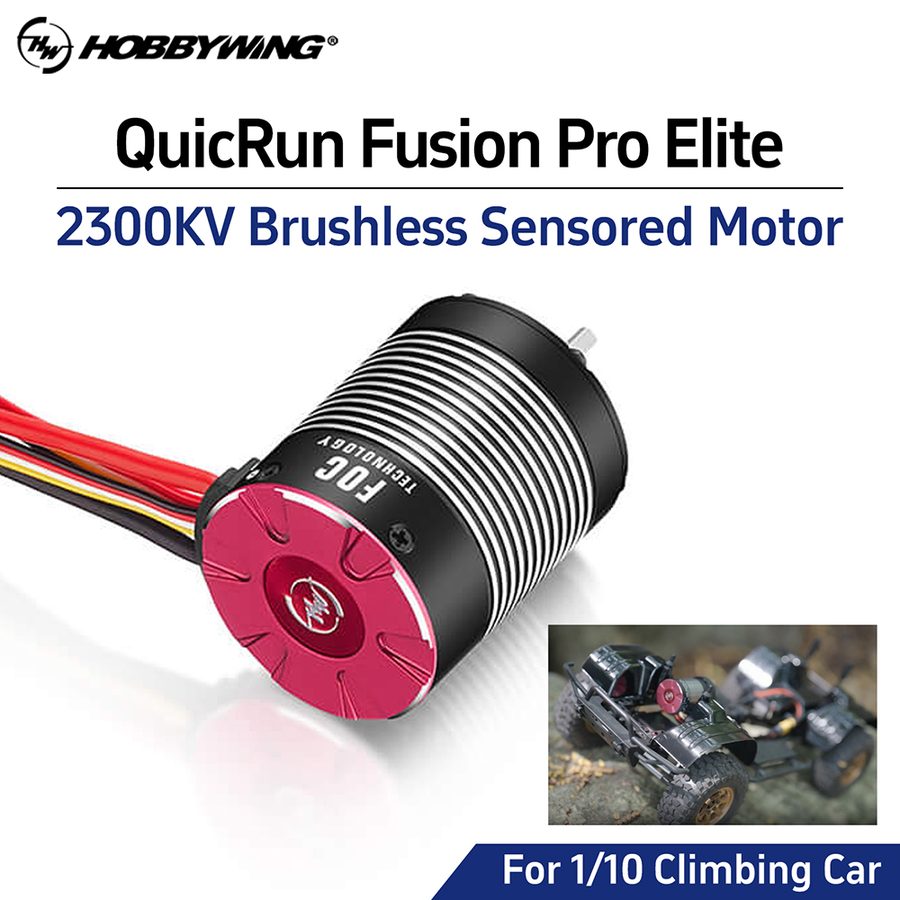

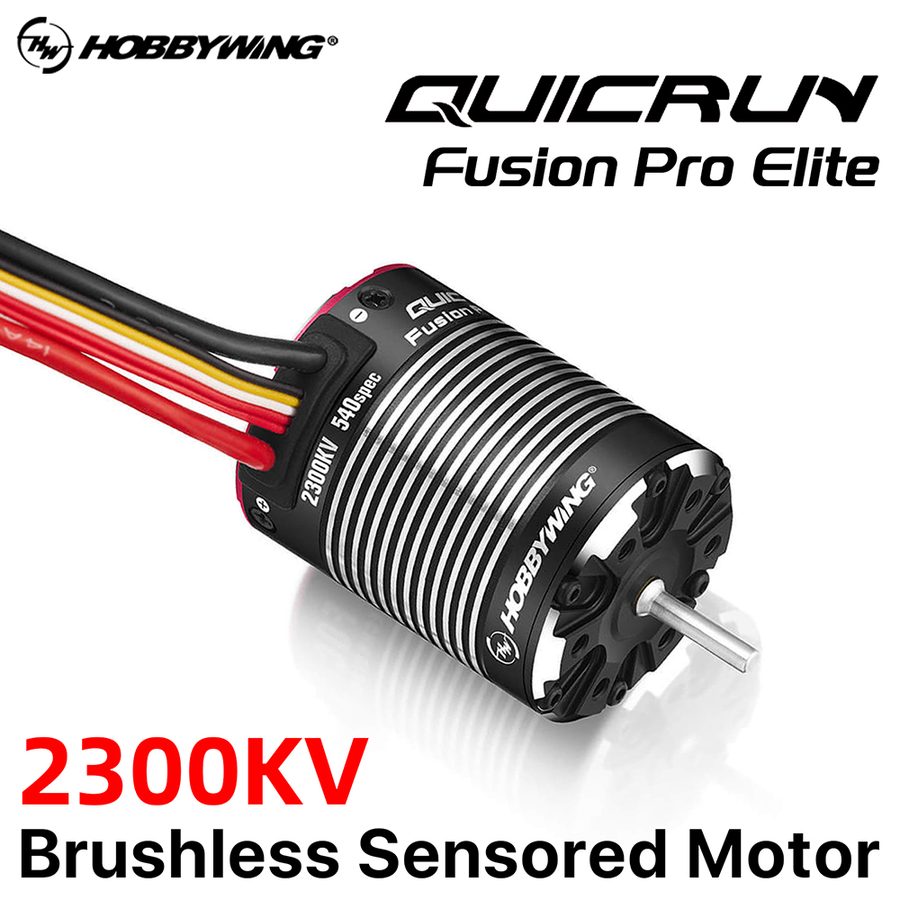

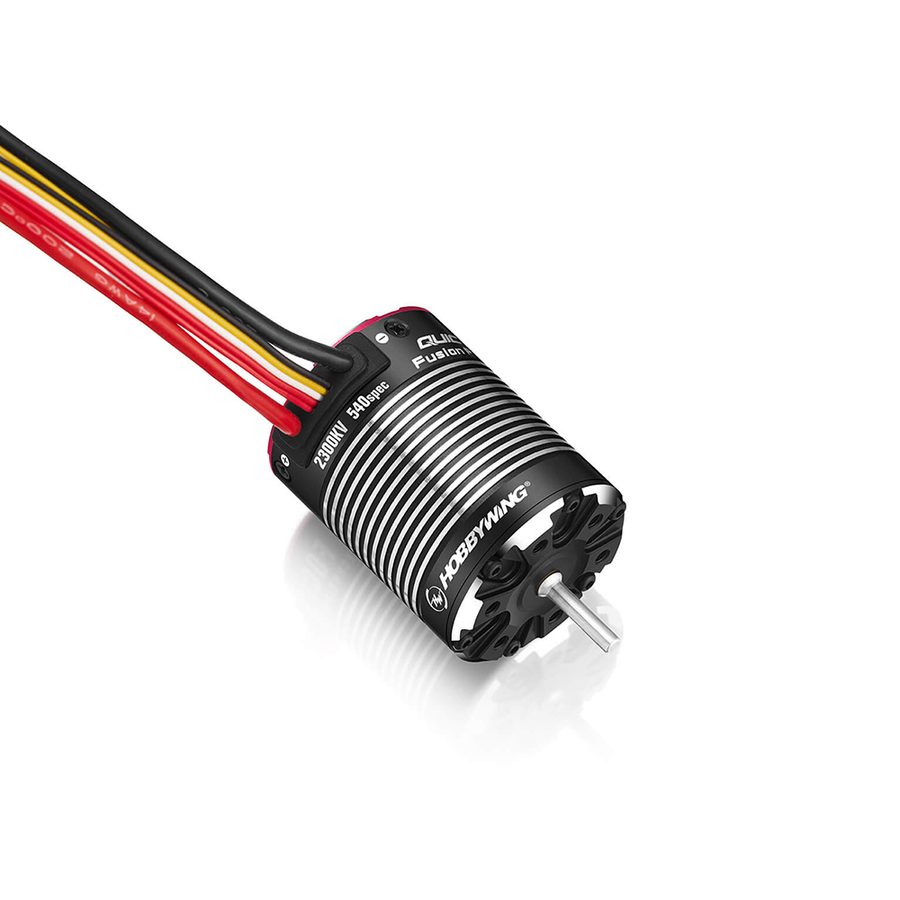

Hobbywing QuicRun Fusion Pro Elite 2300KV Sensored Brushless Motor
- £167.99
- £167.99
- Unit price
- per
Please hurry! Only 1 left in stock
10 customers are viewing this product
Couldn't load pickup availability
2-Year Warranty
Quality parts, fully tested before dispatch.
30-Day Returns
Hassle-free returns if you change your mind.
Dispatched in 24h
In stock now — fast, tracked worldwide shipping.
Hobbywing 2300KV Brushless Sensored Motor IP67 Waterproof Motor 3.175mm Shaft ESC Motor 2IN1 6V/7.4V/8.4V BEC For 1/10 RC Crawler Car
Features:
1. ESC Motor 2IN1: Ultra compact 2-in-1 motor and ESC allows for super clean installation and wiring
2. Compact design: Featuring a more compact integrated design with a length of just 48.5mm the motor is 9.5mm shorter than the Pro Standard version
3. High Power: The ESC supports 2-4S LiPO batteries
4. AUX External Control: Channel forReal-time Parameter Ad ustment
5. FOC Drive: Field-oriented control drive, quiet,powerful torque with excelent linearity
6. High-performance BEC: Built-in 10A High-performance BEC,supports selectable voltages of 6V/7.4V/8.4V
7. Five Operating Modes: Constant Speed Mode/Normal Mode/Normal Mode/Hybrid-RPM Matching Mode/Hybrid-Normal Mode
8. LED and LCD: Compatible with both LED and LCD Pro Program,offers a complete range ofsettings and professional-level adjustments
9. Compatible with most 1/10 climbing frames on the market
Description:
Closed Loop, intelligent Torque Control for Precise Throttle Matching and Amazing Control,Combined with its compact designs, it meets the demands of most 1/10 scale crawler applications, providing stable, consistentpower without performance drop-offs.

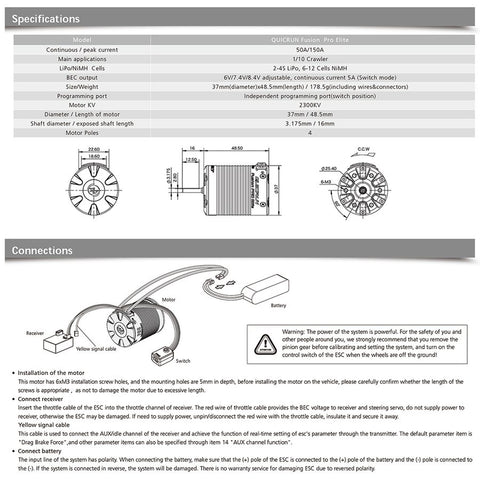

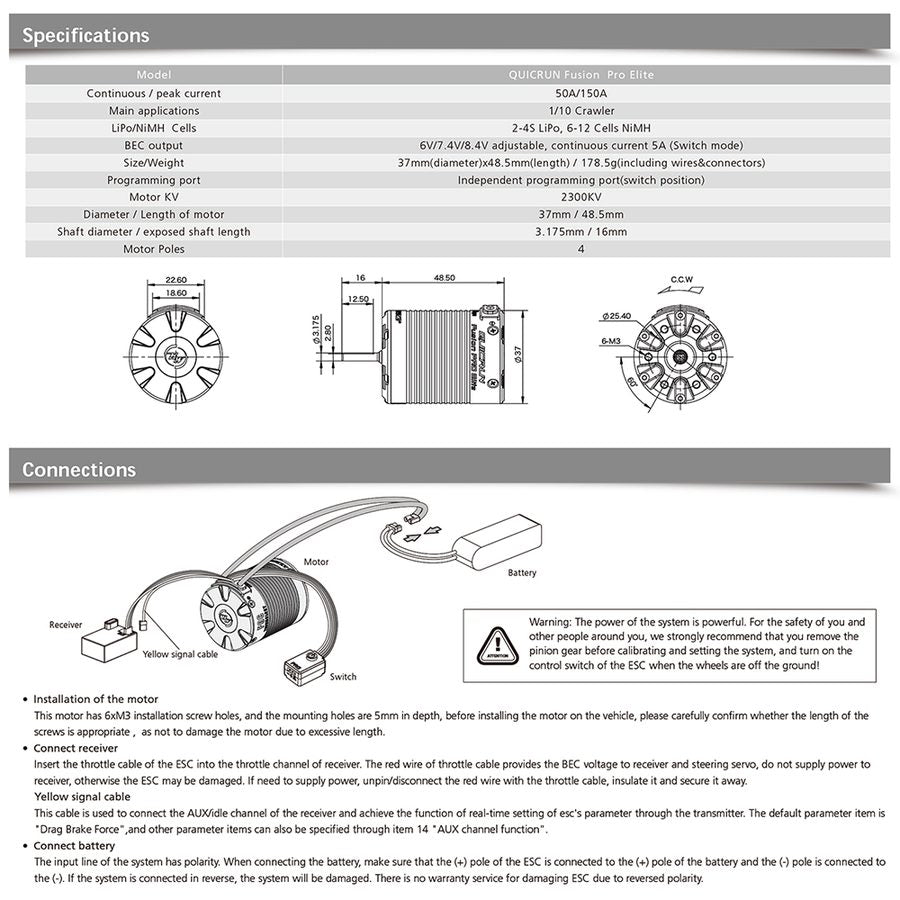

Specifications:
Item: 2300KV Brushless Sensored Waterproof ESC
Scale: 1/10th
Cont./Peak Current: 50A/150A
Input Voitage: 2-4S LiPo.6-12 Cells NiMH
BEC Output: 6V/7.4V18,4 adjustable,continuous current 5A (switch mode)
KV: 2300KV
Motor Poles: 4
Input Wires: Black-14AWG-220mm"1Red-14AWG-220mm*1
Input Connectors: XT60
Program Port: Separate Program Port(switch position)
Firmware Upgrade: Not Supported
Diameter / Length of motor: 37mm/48.5mm
Shaft diameter /exposed shaft length: 3.175mm/16mm
Weight: 178.5g (including wires&connectors)
Package contents:
1* 2IN1 2300KV Brushless ESC

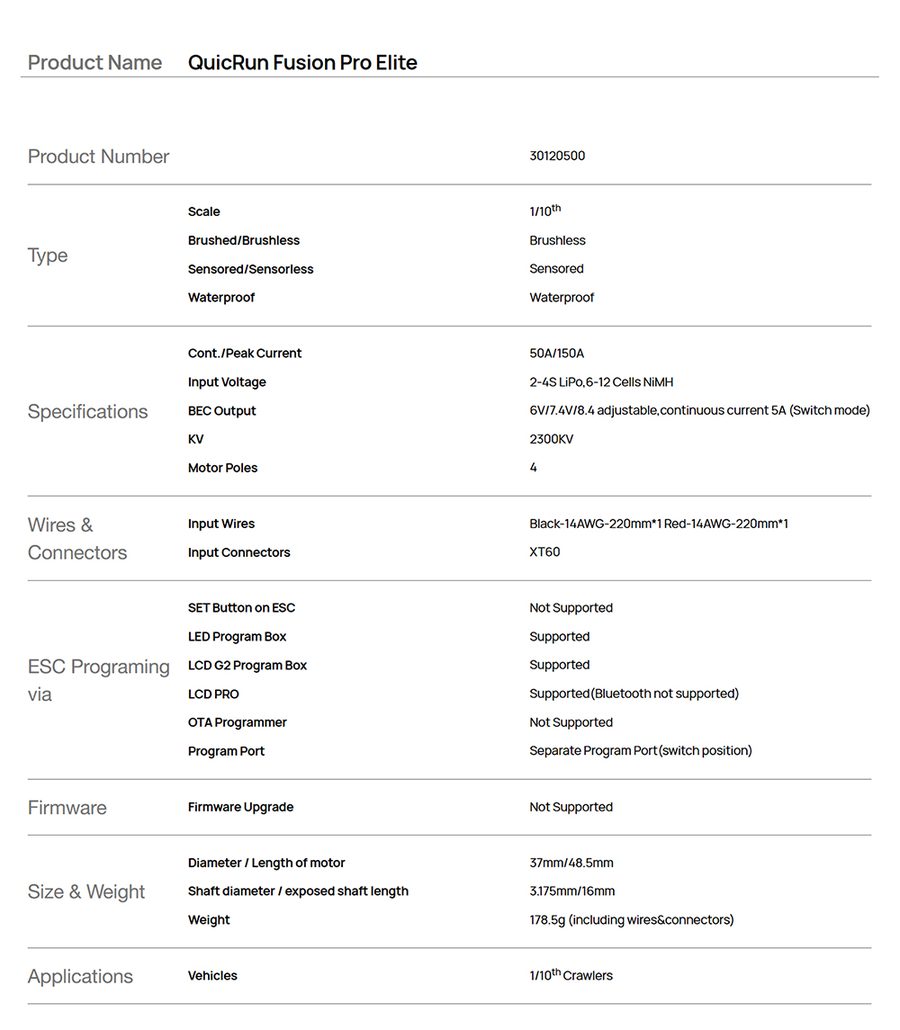

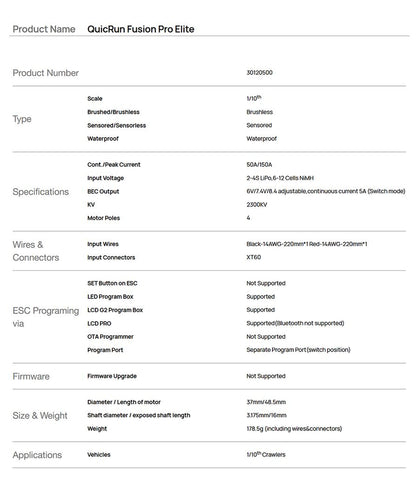

Technical Specifications
| Brand | HOBBYWING |
| Product | 2300KV Brushless Sensored Waterproof ESC |
| Scale | 1/10th |
| Cont./Peak Current | 50A/150A |
| Input Voitage | 2-4S LiPo.6-12 Cells NiMH |
| Bec Output | 6V/7.4V18,4 adjustable,continuous current 5A (switch mode) |
| KV Rating | 2300KV |
| Motor Poles | 4 |
| Input Wires | Black-14AWG-220mm"1Red-14AWG-220mm*1 |
| Input Connectors | XT60 |
| Program Port | Separate Program Port(switch position) |
| Firmware Upgrade | Not Supported |
| Weight | 178.5g (including wires& |
| Item Weight | 239.8 g |
| Package Size (cm) | 18*15*6 |
| Shipped Weight | 247.8 g |
