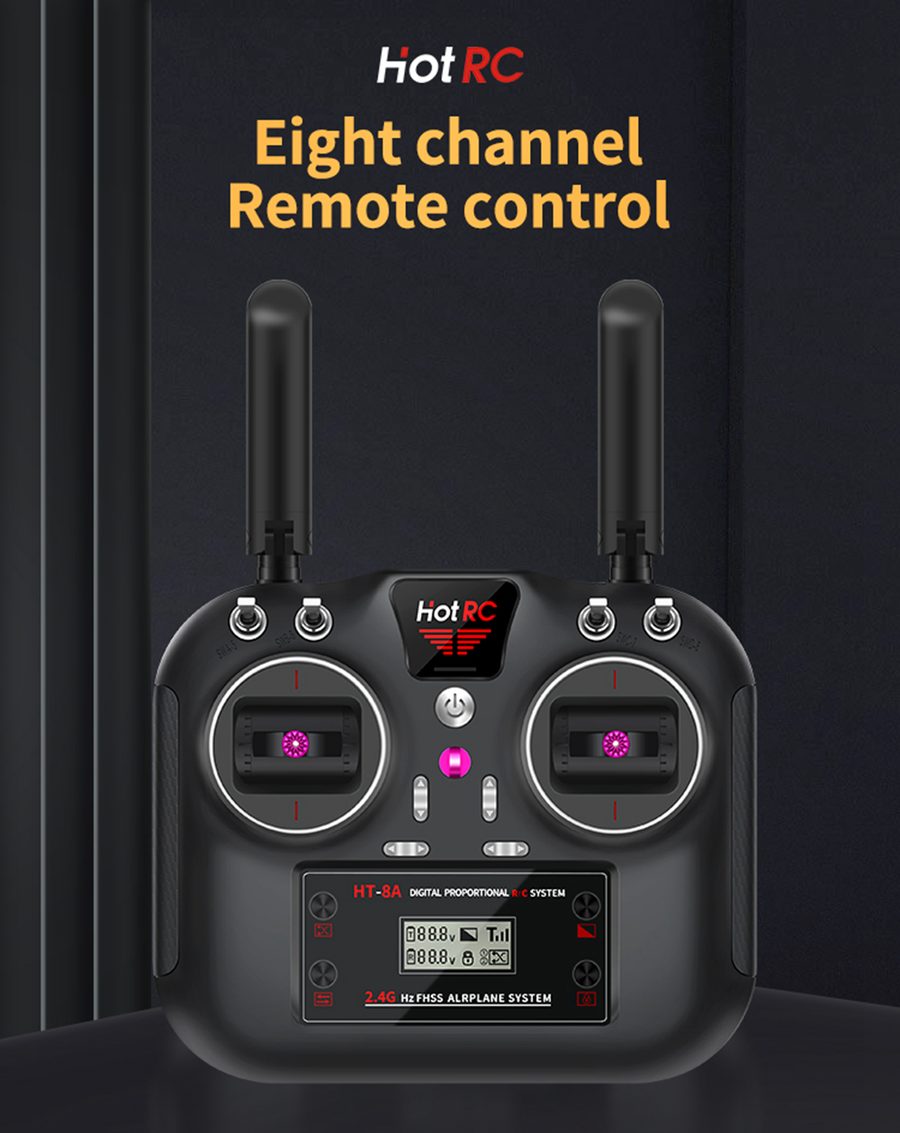

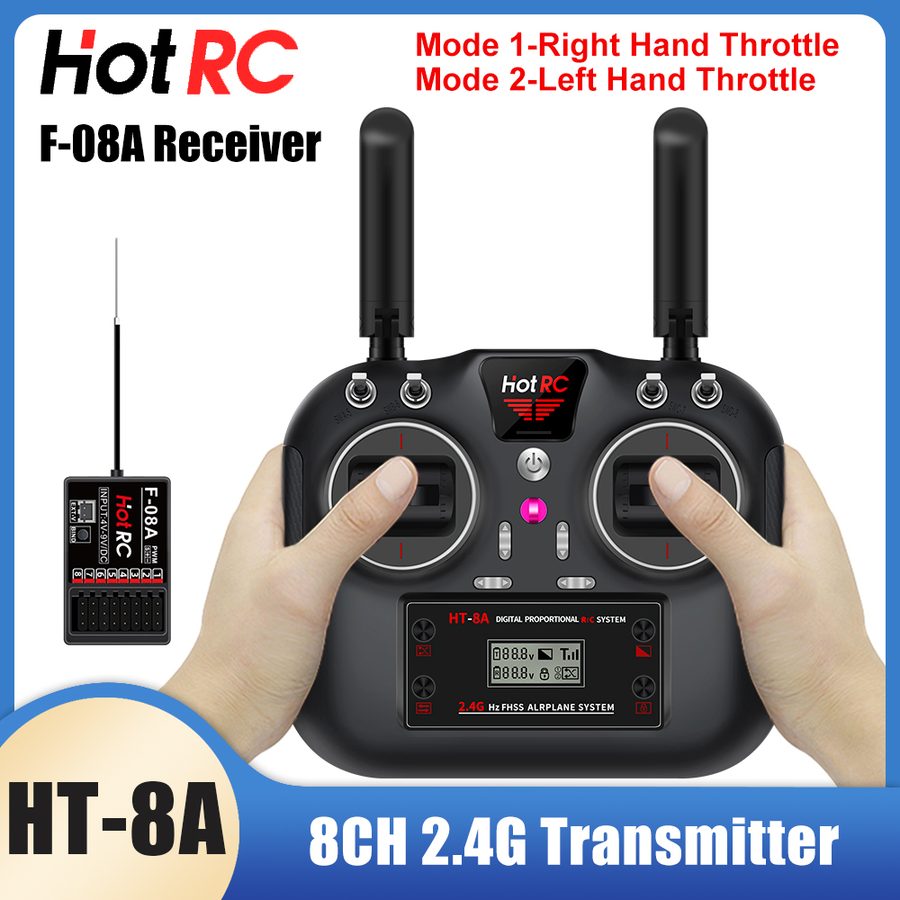

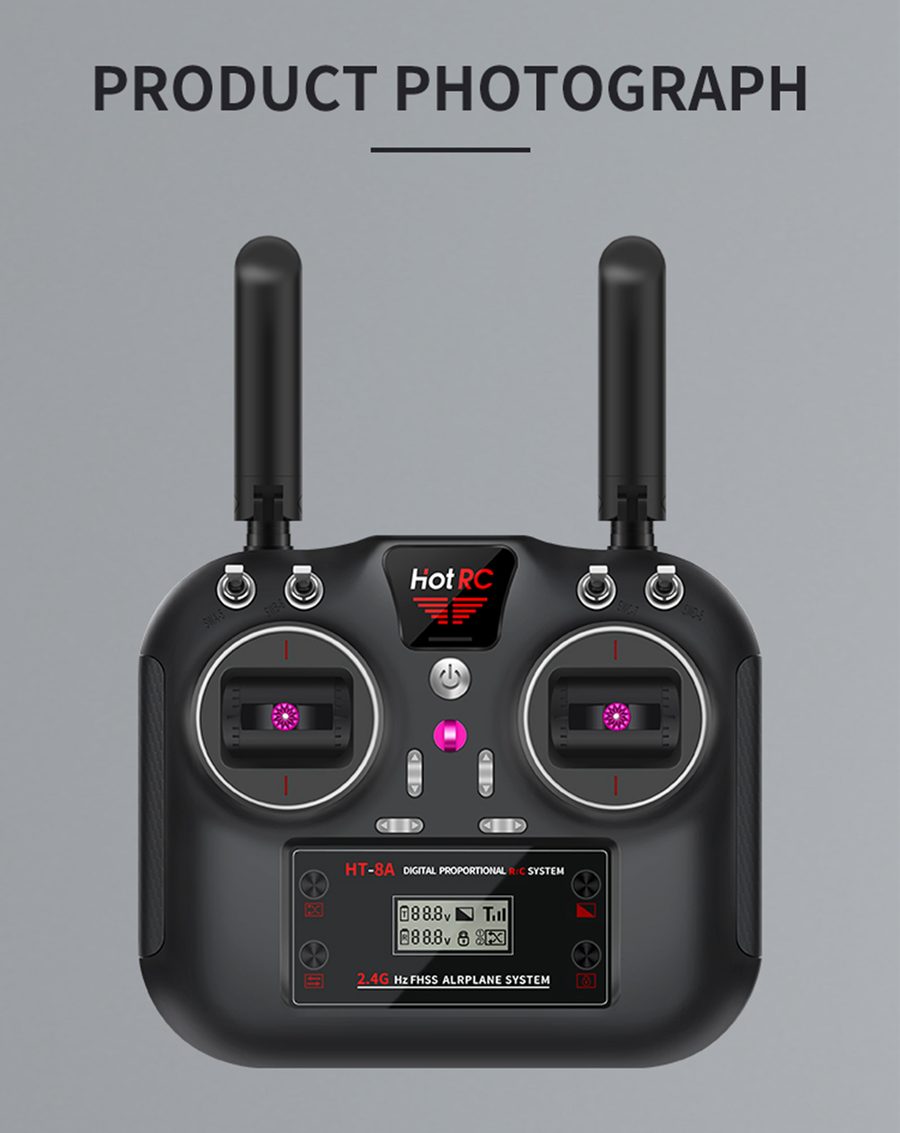

HOTRC HT-8A 8CH Transmitter +F-08A Receiver

HotRC HT-8A 2.4GHz 8CH 8A RC Transmitter PWM FHSS with F-08A Receiver Radio System Long Range Voltage Return Remote Controller for RC Drone Airplane Car Boat

HT-8A Features:
1. Support practice simulator---Connected to PC, compatible with RC Drone Tank Car Boat.
2. Excellent Anti-interference---With pseudo random FHSS algorithm, which makes HT-8A with stable signal and excellent anti-interference ability, control range up to 300m on the ground and 800m in the air.

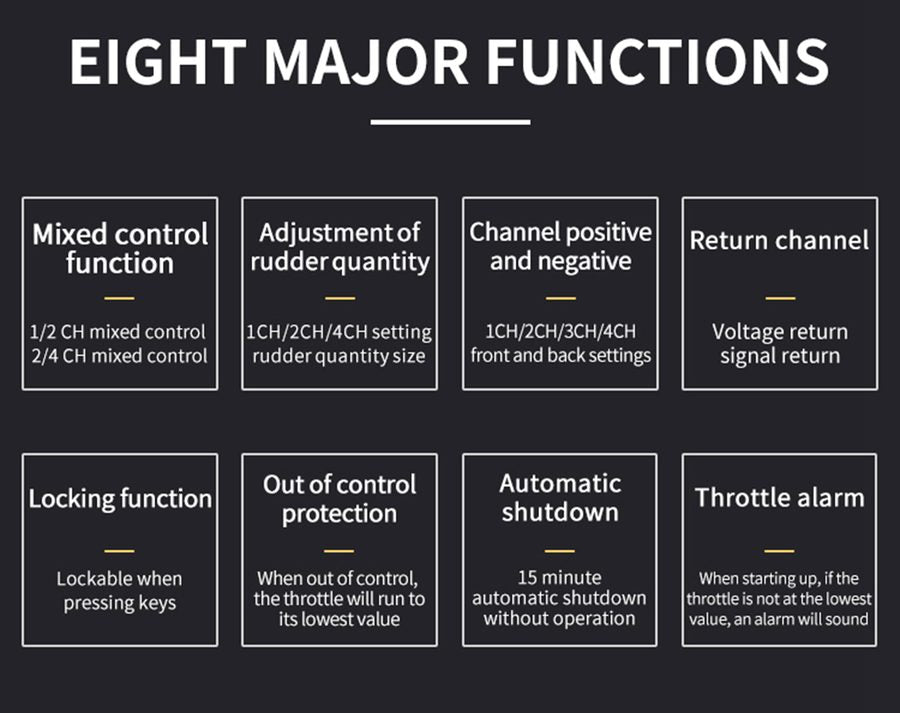

3. Eight Powerful Function---voltage/signal return, channels mix control, PWM adjustment, positive and negative channels, lock function, loss of control protection, automatic shutdown, throttle alarm.
4. Low Power Consumption---The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming little power of a standard FM system, dramatically extending battery life.
5. Multi-channel Hopping Frequency---This system bandwidth ranges from 2.4005GHz to 2.4835GHz. Associated with a high sensitivity receiver. Use only 4 * AA batteries for transmitter.(Not included)

HT-10A Features:

1. 1.7-inch color screen 10CH remote control Receiver standard with back to the function.

2. Chinese and English operation interface can be set up to basically meet the functional requirements of various remote control devices.

3. 2.4G frequency hopping technology, with strong anti-interference, stable performance

4. 2.4G module with PA amplifier Ground distance up to 300m Air distance 800m.

5. The main control chip adopts domestic 32-bit ARM core microcontroller.

6. Simple but comprehensive UI interface, real-time parameters of each channel, so that you can always grasp the dynamic information of the remote control.

7. Support two kinds of power supply, 2S lithium batteries / 4 batteries power supply 2S socket reserved in the power port of the remote control, you can directly insert 2S lithium batterie.

8. Standard receiver with return function, can return the battery voltage, the receiver signal, and equipped with a return signal cable with a plug, you can set the return alarm voltage through the remote control.

9. Suit for Model Airplanes,RC Boats,Agricultural Equipment,Drones,RC Cars,DIY Robots.

Descriptions:
With FHSS protocol, which makes HT-8A with excellent anti-interference ability to all channels, fast response for 8 channels. This system offers superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity. Lightweight, ergonomically designed for hands.

Package Included:
1 x HT-8A Transmitter
1 x F-08A Receiver
1 x Manual

HT-10A Features:

1. 1.7-inch color screen 10CH remote control Receiver standard with back to the function.

2. Chinese and English operation interface can be set up to basically meet the functional requirements of various remote control devices.

3. 2.4G frequency hopping technology, with strong anti-interference, stable performance

4. 2.4G module with PA amplifier Ground distance up to 300m Air distance 800m.

5. The main control chip adopts domestic 32-bit ARM core microcontroller.

6. Simple but comprehensive UI interface, real-time parameters of each channel, so that you can always grasp the dynamic information of the remote control.

7. Support two kinds of power supply, 2S lithium batteries / 4 batteries power supply 2S socket reserved in the power port of the remote control, you can directly insert 2S lithium batterie.

8. Standard receiver with return function, can return the battery voltage, the receiver signal, and equipped with a return signal cable with a plug, you can set the return alarm voltage through the remote control.

9. Suit for Model Airplanes,RC Boats,Agricultural Equipment,Drones,RC Cars,DIY Robots.

Description:

HT-10A 1.7inch color screen,10 channels remote control Receiver,comes standard with return function and supports 2 power supply modes, 5 batteries and 2S lithium batteries,Equipped with English and Chinese interfaces, runaway protection function, online upgrade function, speed cruise control various functions.

HT-10A Specifications:

screen: 1.7-inch color screen

Applicable models: model airplanes/cars/boats, etc.

Channels: 10CH

Modulation Mode: GFSK

Battery:2S 7.4v Lipo/4*5AA(not include)

RC Distance: Ground about 300m/Air 800m

Transmitting power: ≈120MA

Net weight: 320g

Spread Spectrum Mode: FHSS

Response Speed: PWM:<20MS

Frequency range: 2.4GHZ ISM

Receiving Sensitivity: -96 dbm

Receiver power supply: DC 3.5V-9V

Transmitter power supply: DC 3.7V-9V
