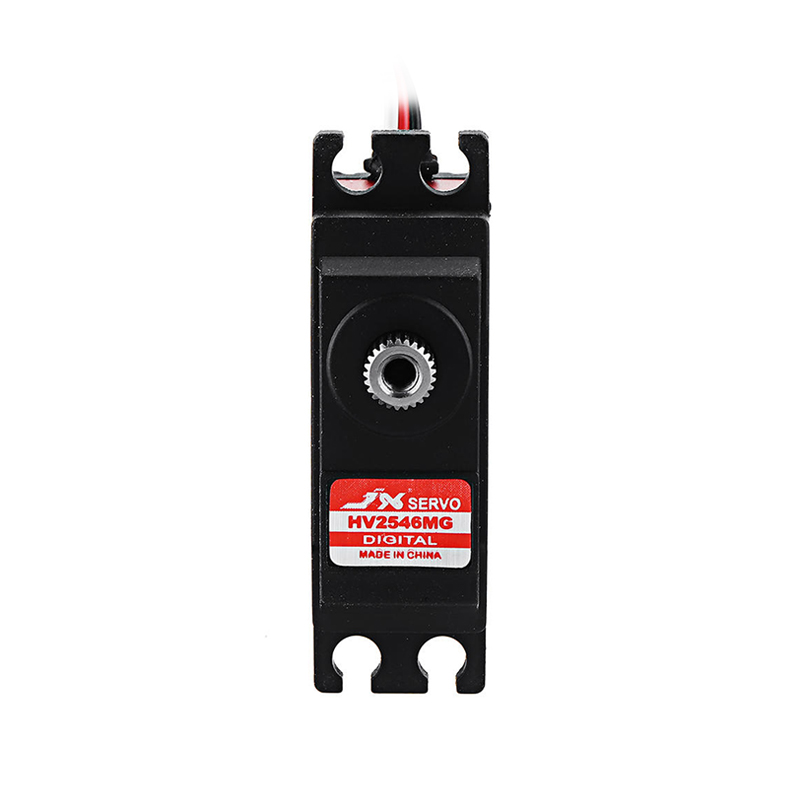

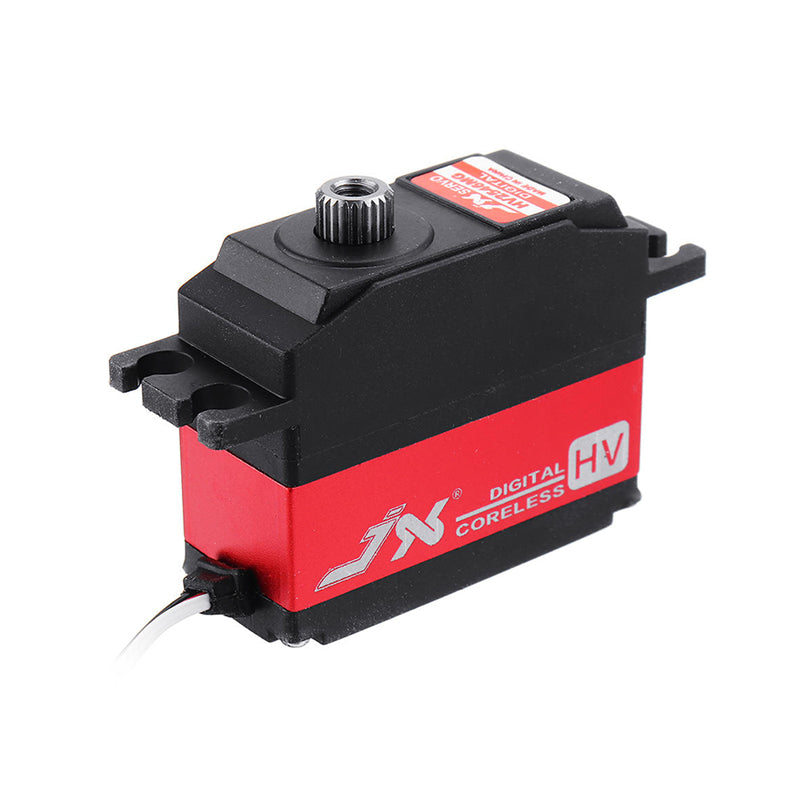

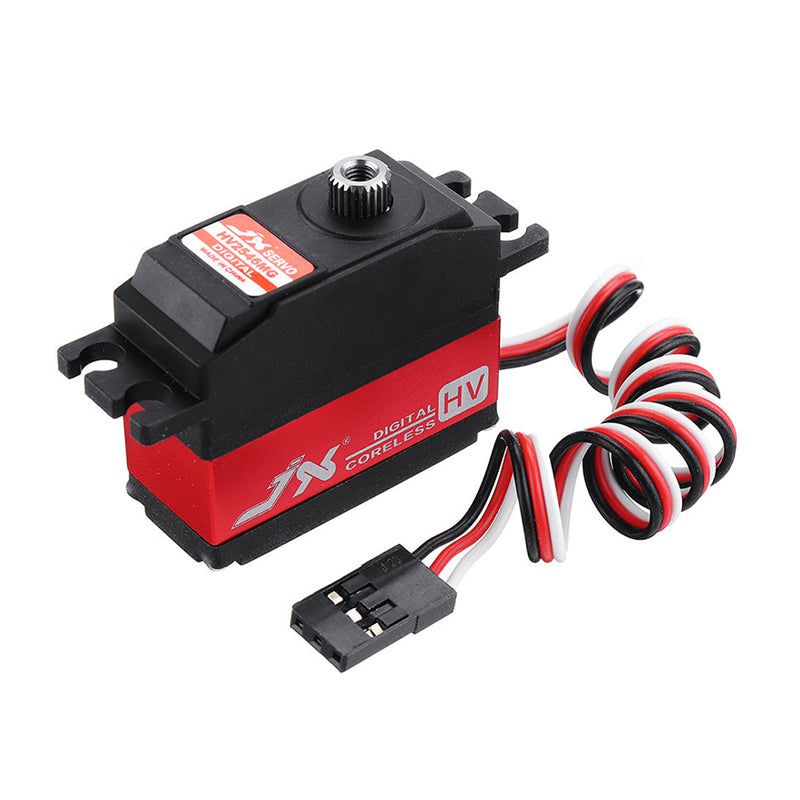

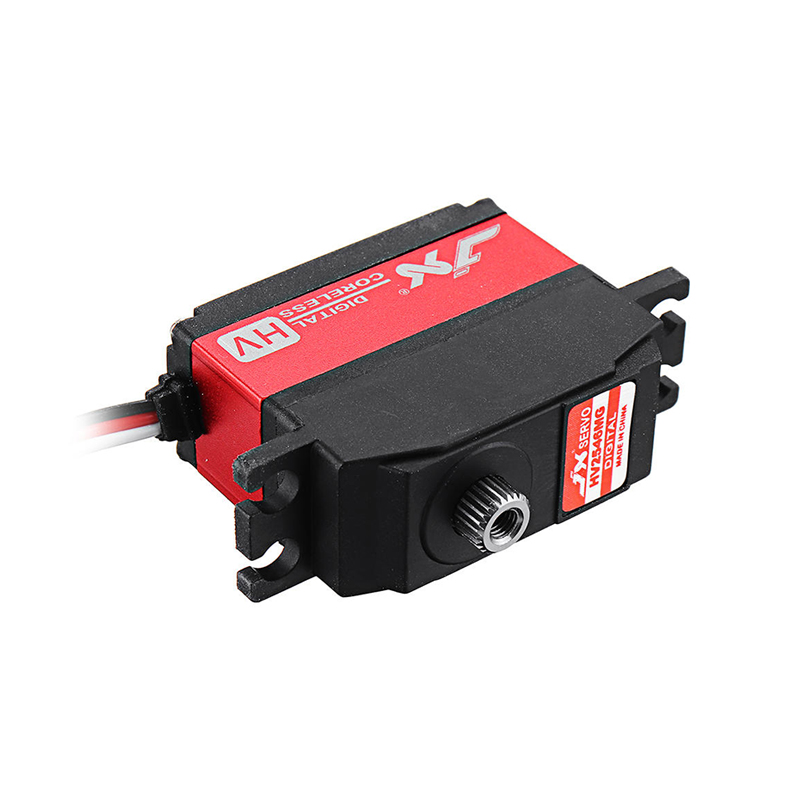

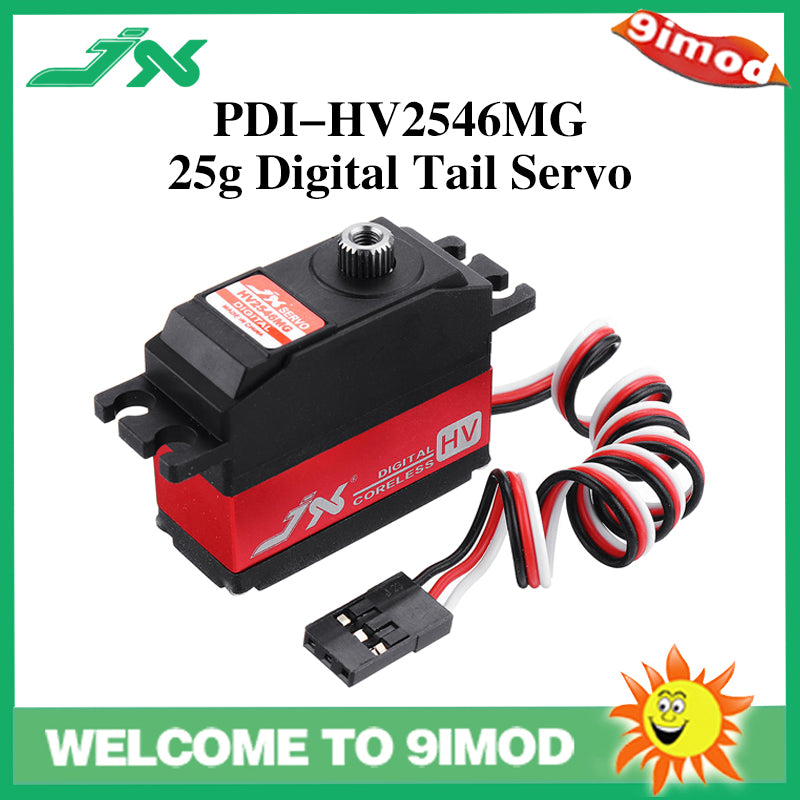

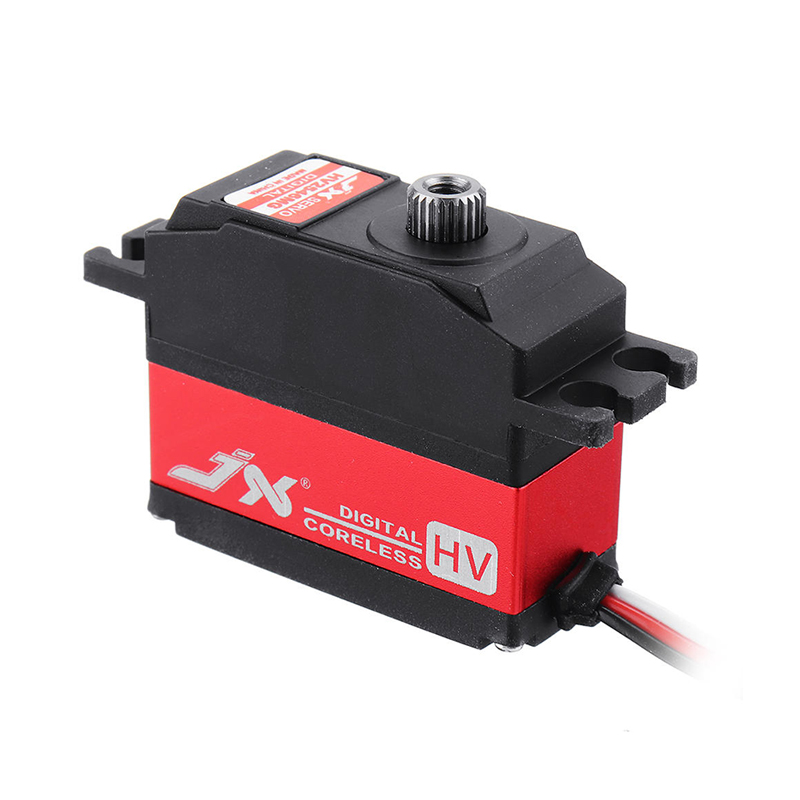

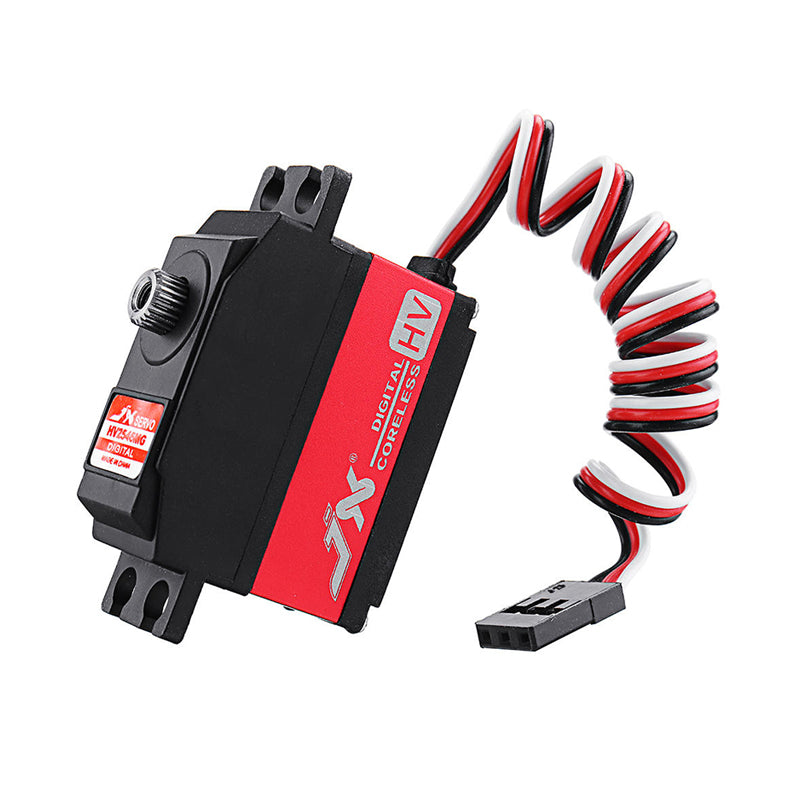

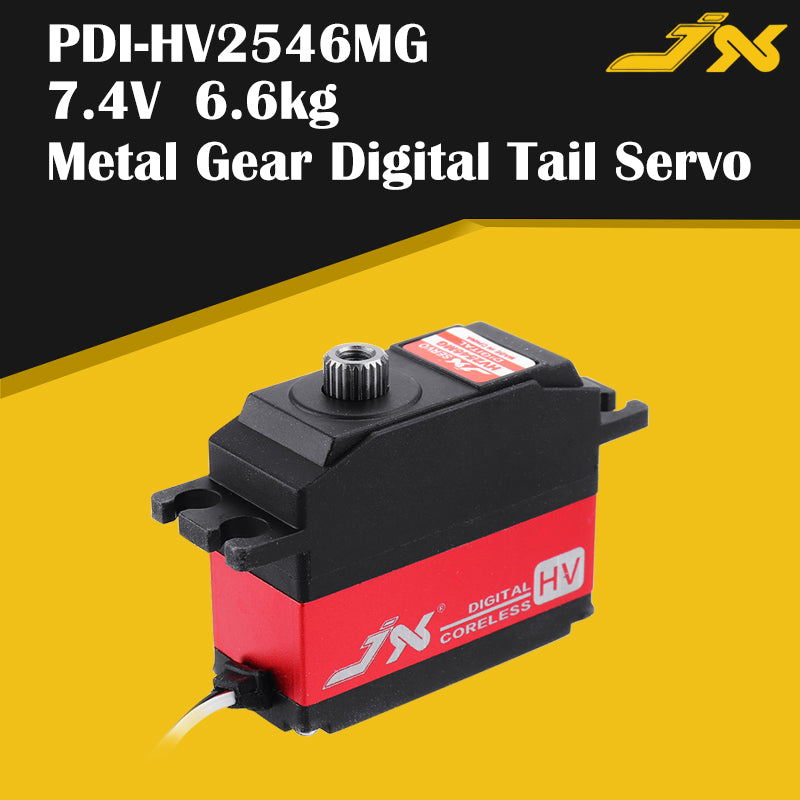

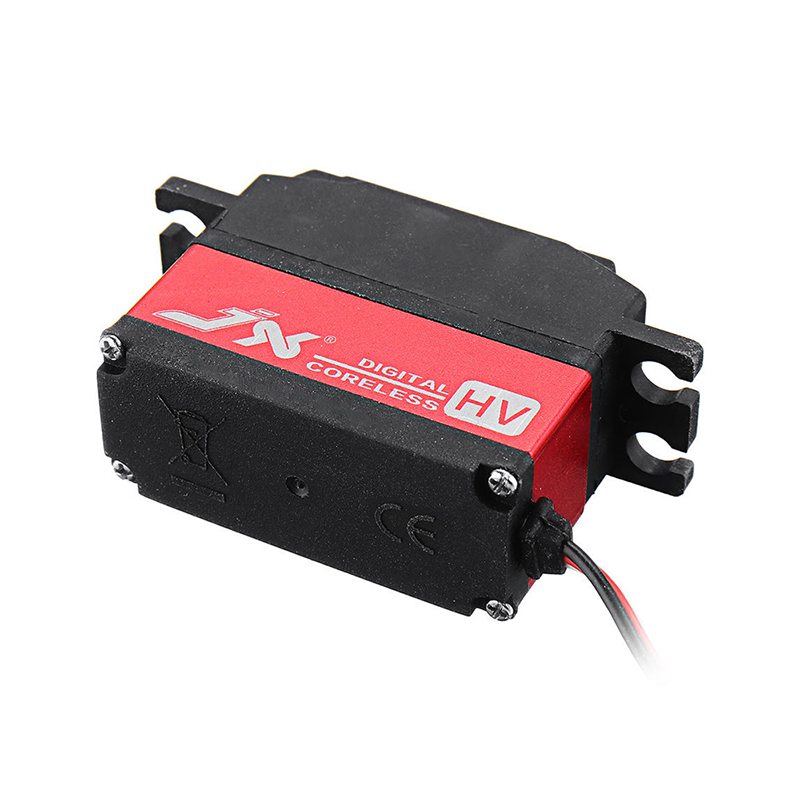

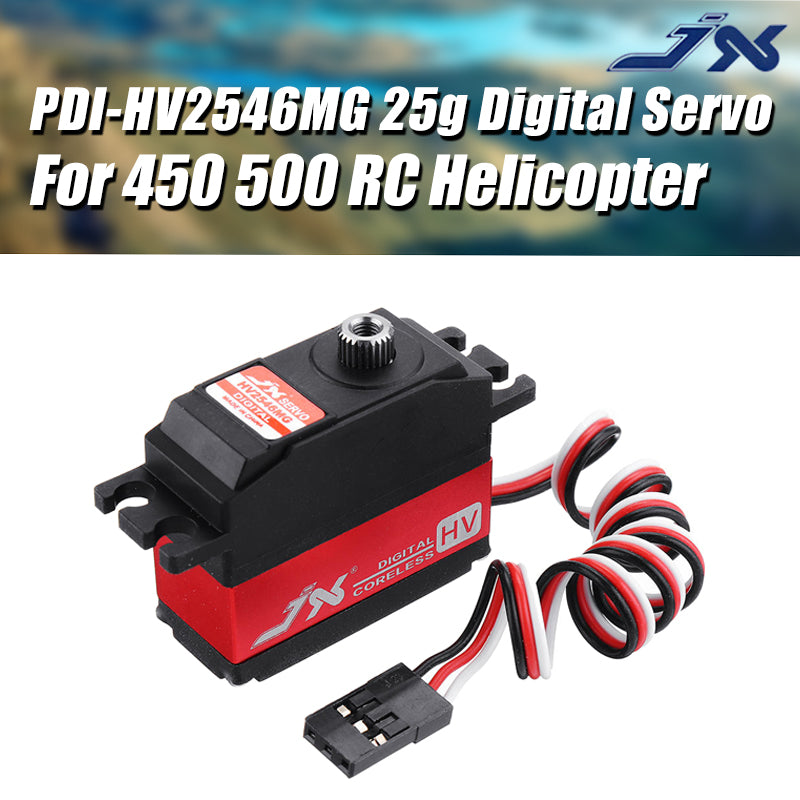

JX PDI-HV2546MG Metal Gear High-Voltage Digital Servo for Helicopter
- £27.99
£31.99- £27.99
- Unit price
- per
Please hurry! Only 5 left in stock
10 customers are viewing this product
Couldn't load pickup availability
2-Year Warranty
Quality parts, fully tested before dispatch.
30-Day Returns
Hassle-free returns if you change your mind.
Dispatched in 24h
In stock now — fast, tracked worldwide shipping.
Technical Specifications
| Brand | JX |
| Brand Name | JX |
| Dead Band | 1μs |
| Working Frequence | 1520μs / 330hz |
| Operating Voltage | DC4.8~6.0 V |
| Motor | coreless motor |
| Operating Speed (6V) | 0.12sec/60° |
| Operating Speed (7.4V) | 0.10 sec/60° |
| Stall Torque (6V) | 5.3 kg.cm |
| Stall Torque (7.4V) | 6.6kg.cm |

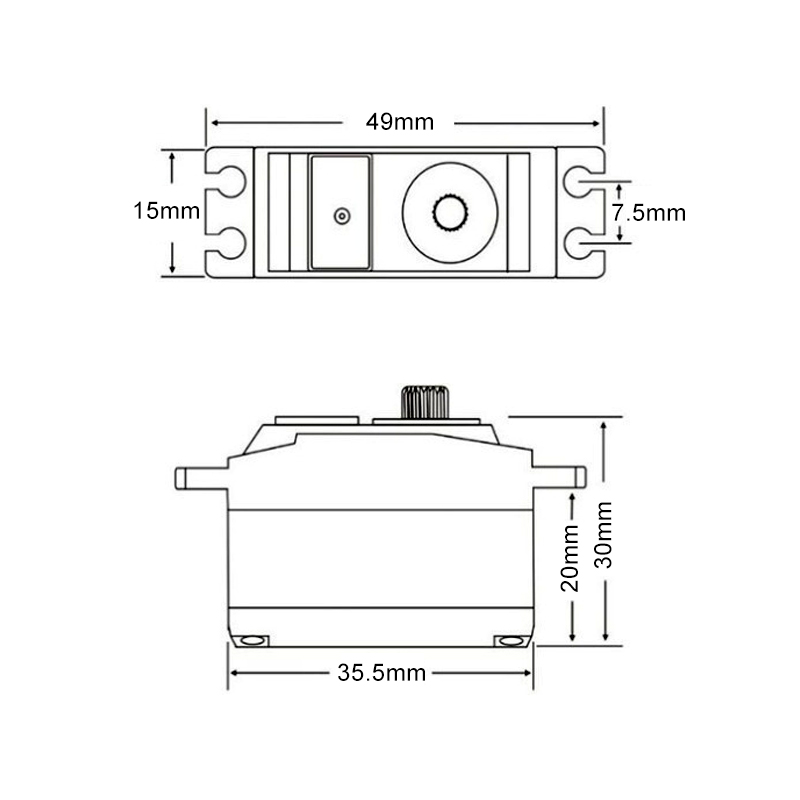

| Dimensions | 36X15X32.4 mm /1.42 X0.59X1.28 in |
| Weight | 26.32 g (0.93oz) |
| Connector Wire Length | JR 180 mm (7.09in) |
| Bearing | 2BB |
| Item Weight | 44 g |
| Package Size (cm) | 18*15*5 |
| Shipped Weight | 52 g |

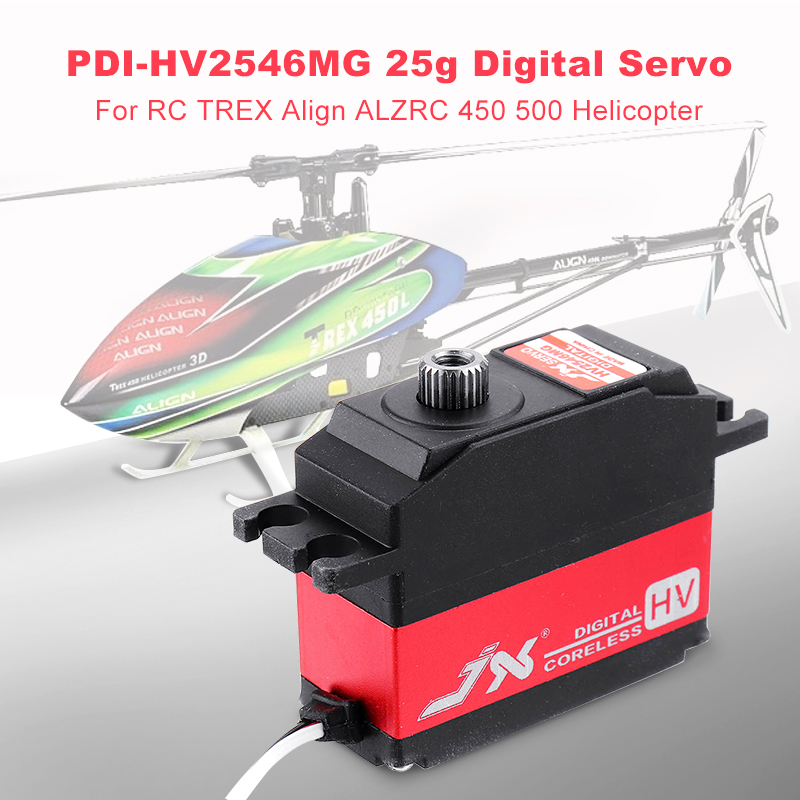

JX PDI-HV2546MG 25g Metal Gear Digital High Voltage Coreless Motor Tail Servo For RC TREX Align ALZRC 450 500 Helicopter
Features:
1.High performance programmable digital high voltage coreless Gyro servo.2.High-precision Taiwan-made aluminium gears with hard anodizing.
3.CNC aluminium middle hull.
4.Dual ball bearings.
Descriptions：
This is high performance digital coreless gyro servo, suitable for 450 500 helicopter fixed-wing airplane.
Small size and light weight is conducive to the flight of RC models.
Besides, its high quality dual ball bearing, large torque and Taiwan-made aluminium gears are perfect for your RC models.
Tooth Count：25

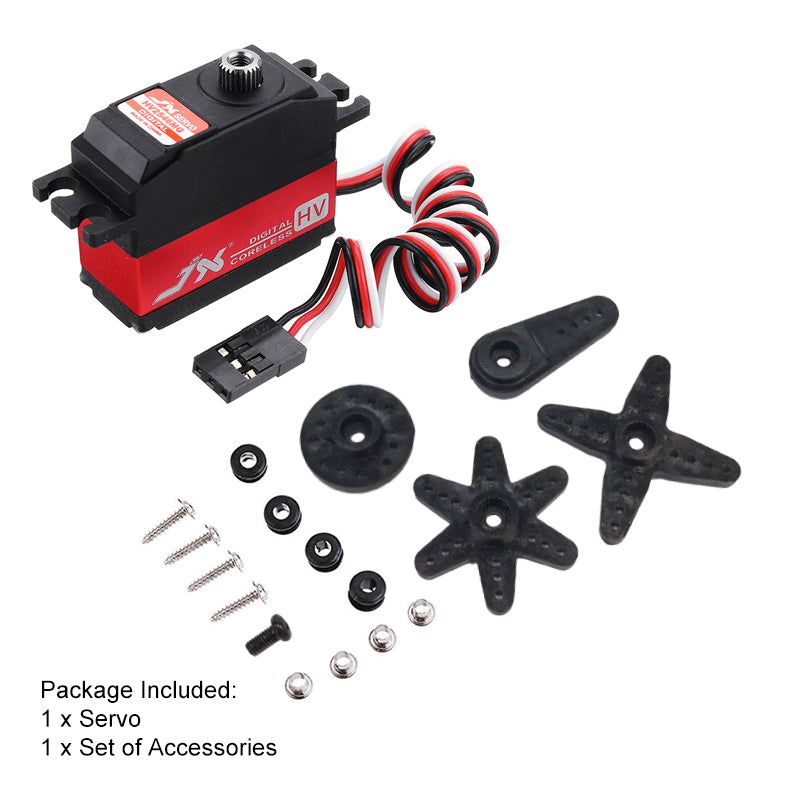

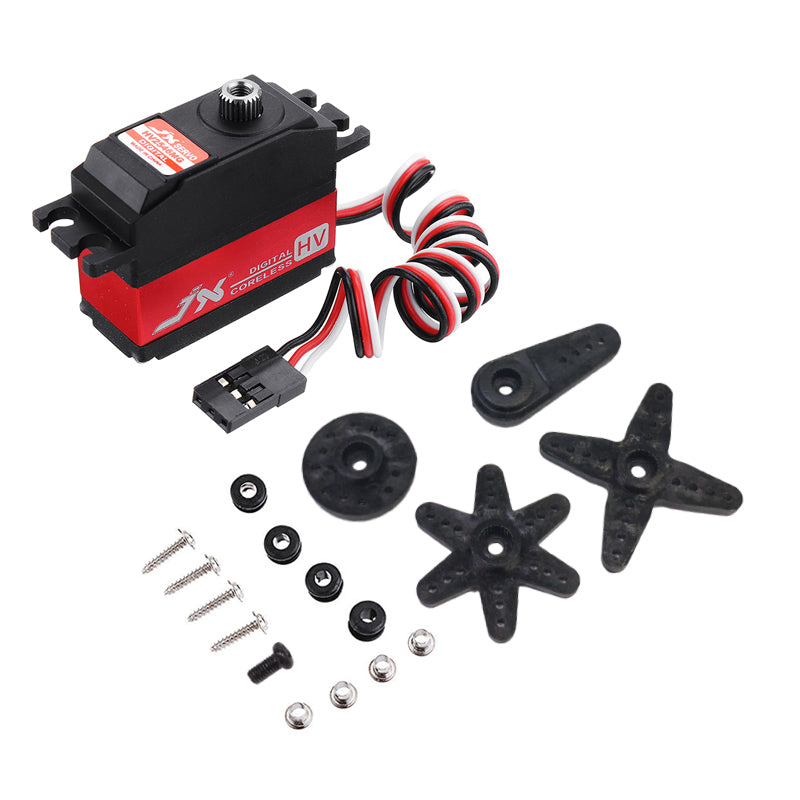

Package Included:
1 * Servo

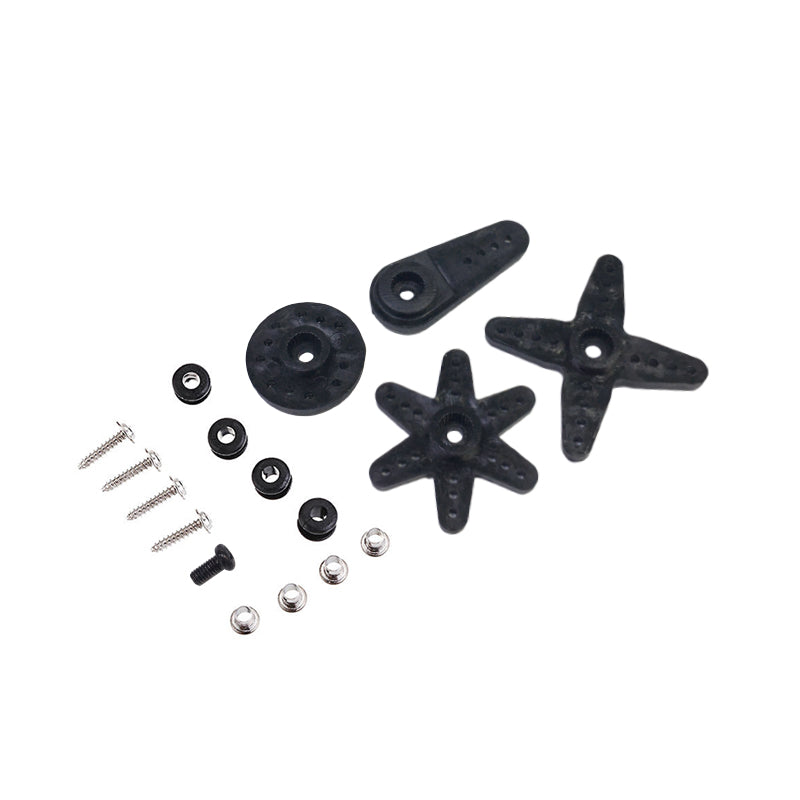

1 * Set of Accessories
Package Information:
Package size: 6.5*4*5cm
Package weight: 44g
Poly bag package
Note:
Due to hand measure, there will be errors, subject to the actual product.Due to Different Monitor, the color may have difference.
