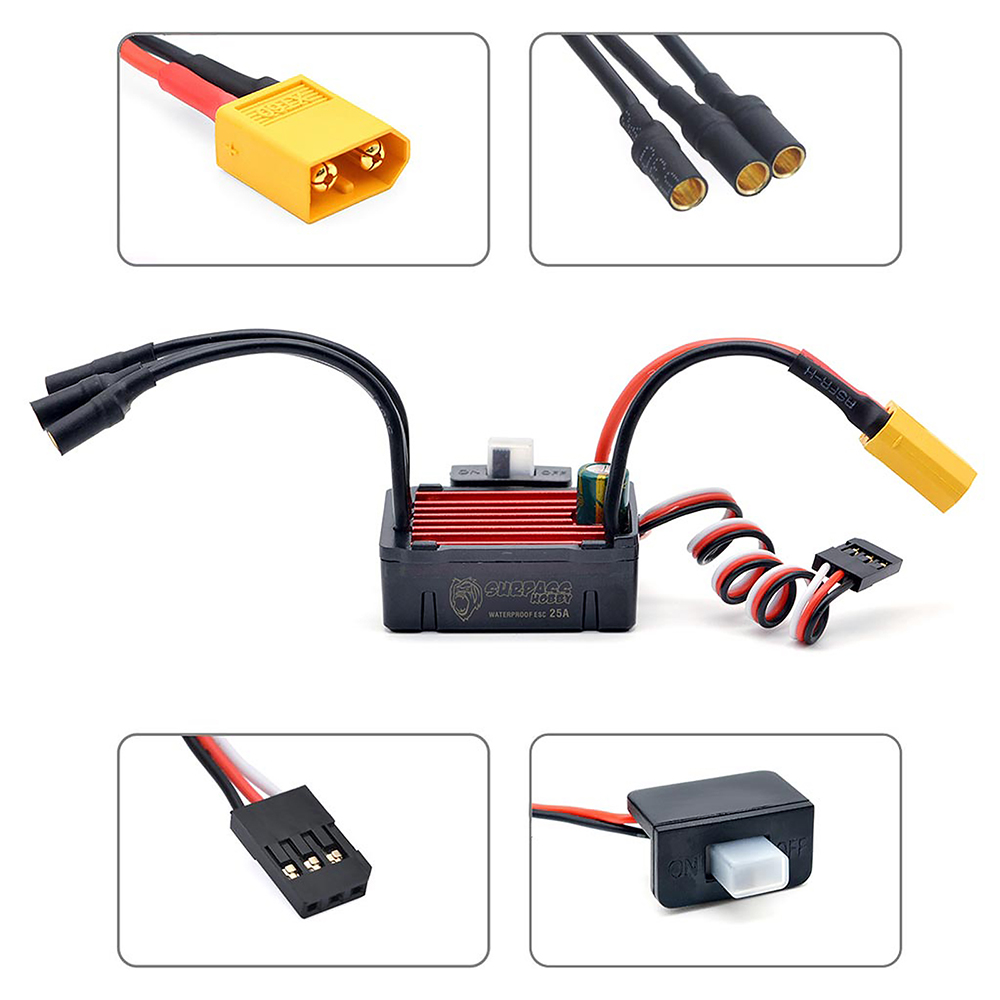

SURPASS HOBBY 25A Waterproof Brushless ESC with T Plug
- £41.99
- £41.99
- Unit price
- per
Please hurry! Only 4 left in stock
10 customers are viewing this product
Couldn't load pickup availability
2-Year Warranty
Quality parts, fully tested before dispatch.
30-Day Returns
Hassle-free returns if you change your mind.
Dispatched in 24h
In stock now — fast, tracked worldwide shipping.
Technical Specifications
| Brand | SURPASS HOBBY |
| Product Name | KK 150A ESC |
| Motor Type | Sensorless Brushless Motor |
| On-Road | 40XX-Size or smaller motor with the KV< |
| Off-Road/Buggy/Monster | 40XX-size or smaller motor with the KV < |
| Suitable Car | 1/8 Car |
| Resistance | 0.0003ohm |
| Compatible Battery | 3-6S Lipo/9-18Cells NiMH |
| Bec Output | 6.1V or 7.4V/3A (Switch mode) |
| Dimensions/Weight | 160x100x62mm/148g |
| Item Weight | 85 g |
| Package Size (cm) | 14.5*8.5*10.5 |
| Shipped Weight | 152 g |

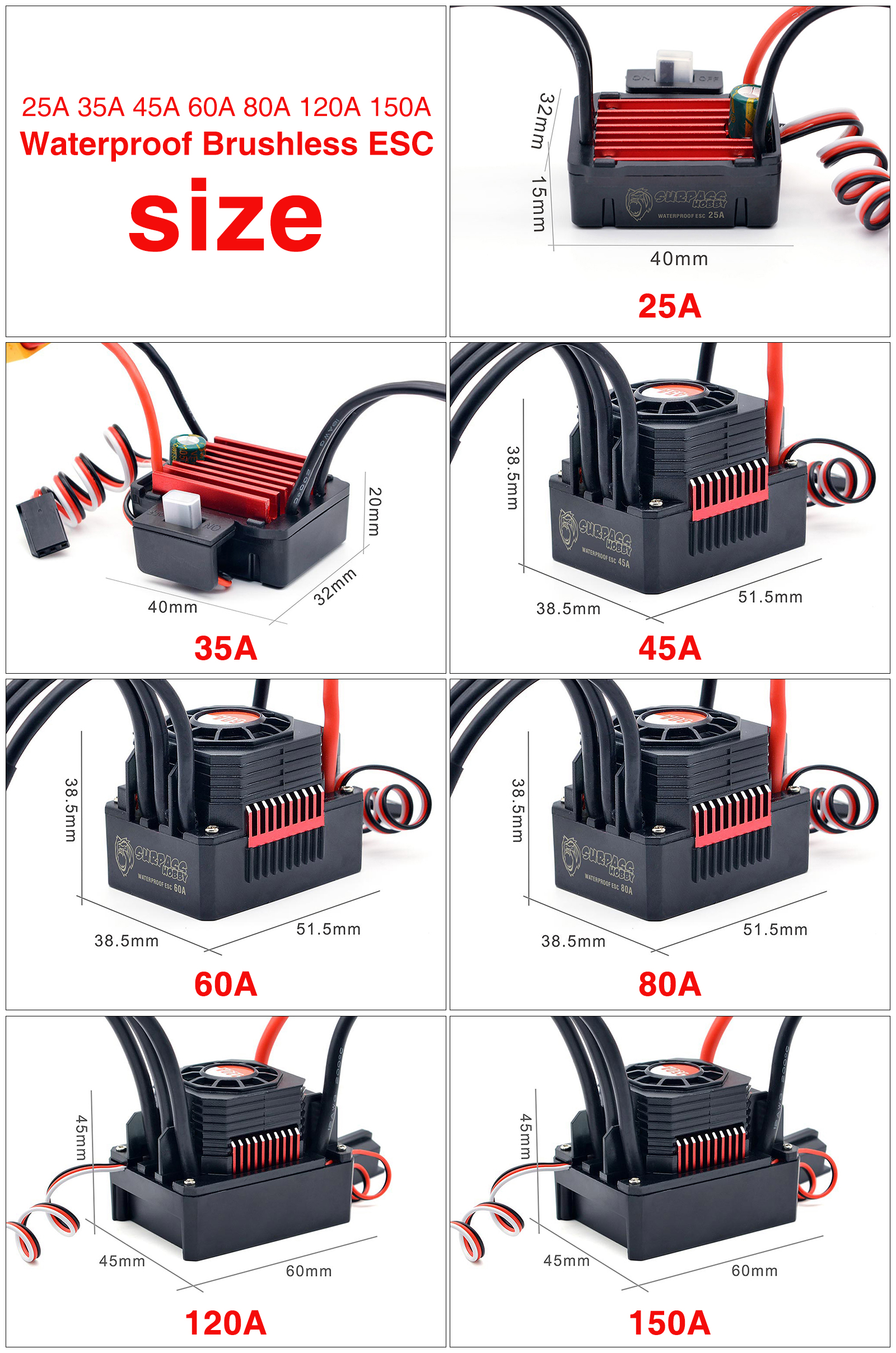

SURPASSHOBBY ESC 150A 80A 120A 25A 35A 45A 60A Waterproof Electric Speed Controller for 1/8 1/10 1/12 RC Car Brushless Motor
Features:
1. Water- proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water;Clean and dry it soon after the use for avoiding the connectors get rusty.)
2. Specially designed for RC car with excellent start-up, acceleration and linearity features.
3. Compatible with sensorless brushless motor.
4. The strong resistant current capability, excellent heat dissipation.
5. Multiple protection features: Low voltage cut-off protection for litium or nickel battery /Over-heat protectionThrote signal loss protection / Motor blocked protection/
6. Easily programmed and compatible with pocket-sized program card.
Description:
This is Electronic Speed Controller (ESC) for car. High power system for RC model is very dangerous, so please read this manual carefully.
Since we can't control over the correct use, installation, application, or maintenance of our products, we'veno liability shall be assumed nor accepted for any damages,
losses or costs resulting from the use of the product. Any claimsarising from the operating, failure of malfunctioning etc. will be denied.
We assume no liability for personal injury,consequential damages resulting from our product or our workmanship.

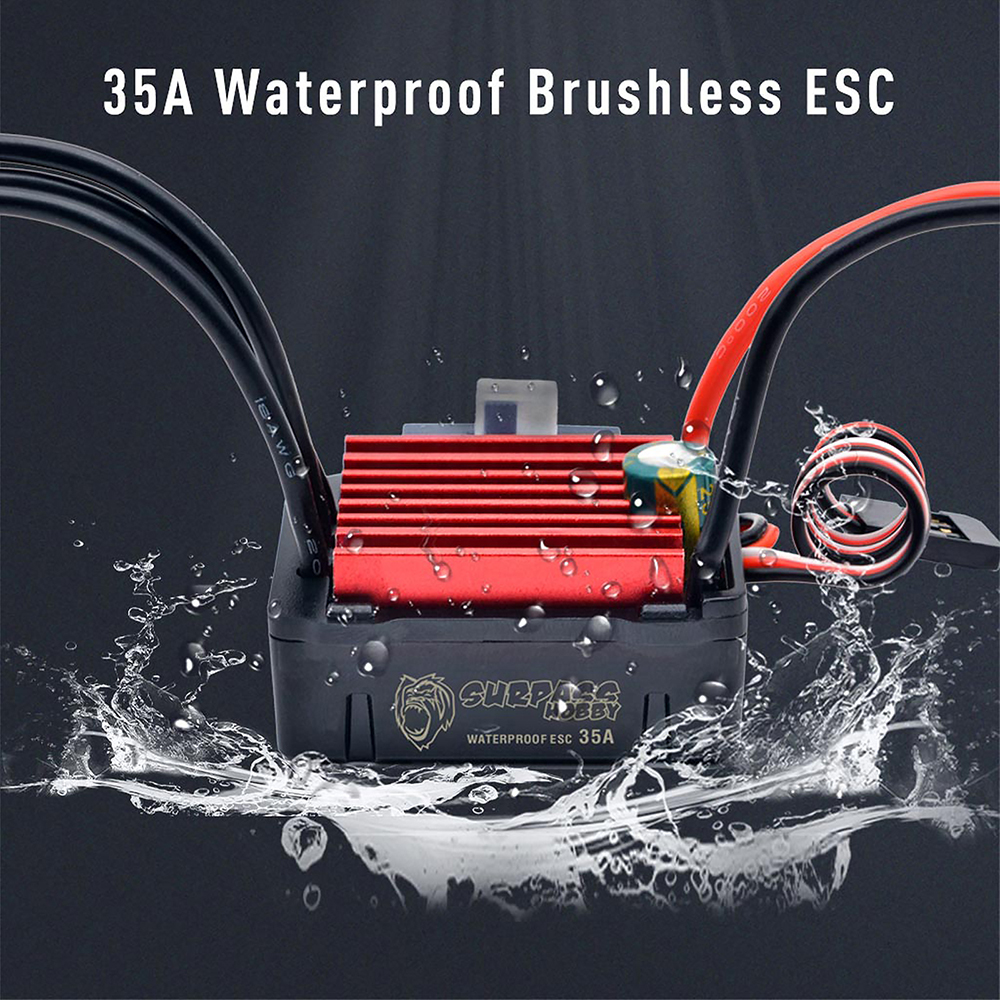

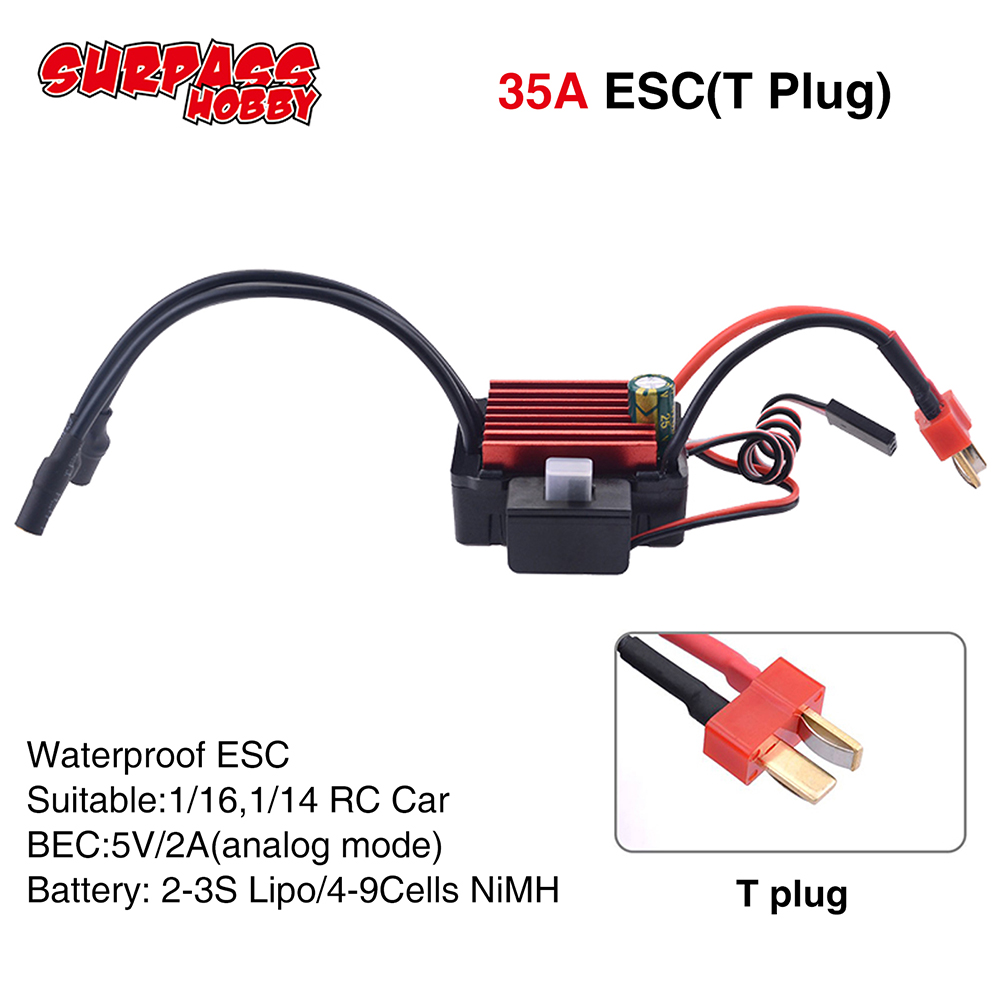

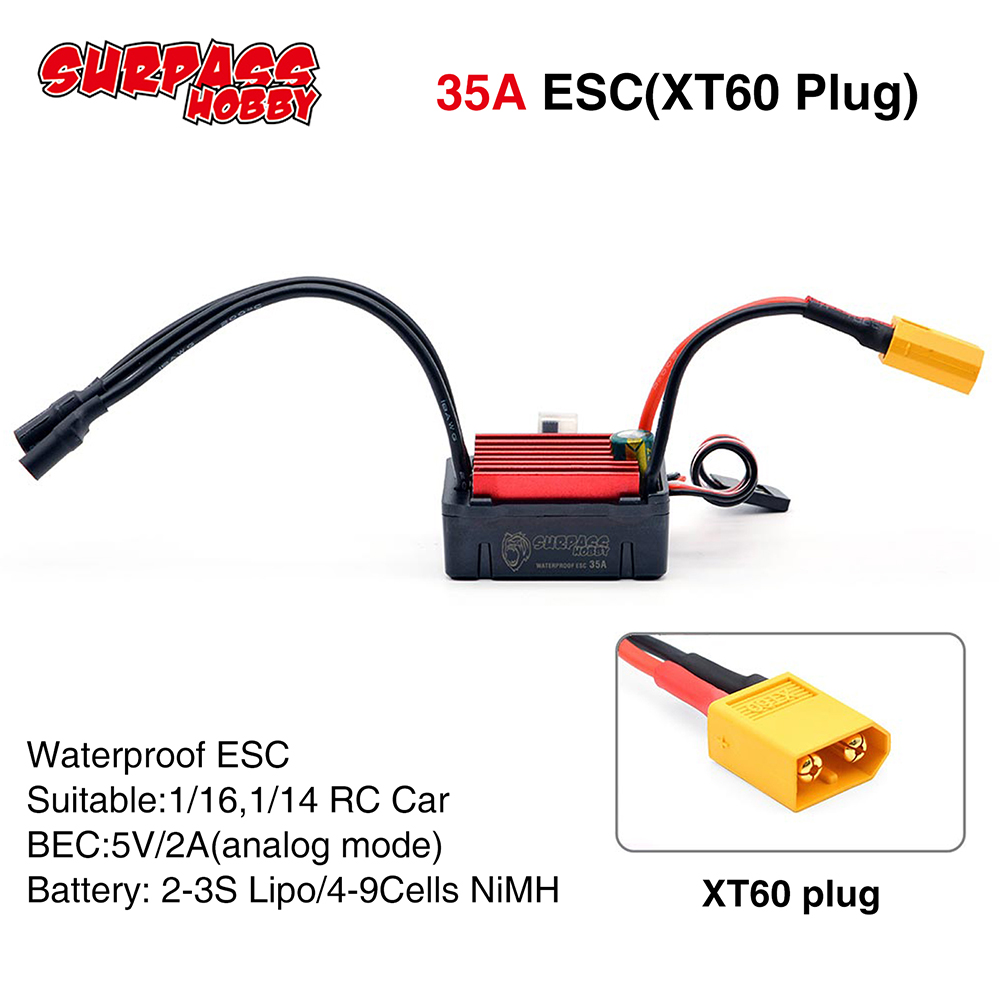

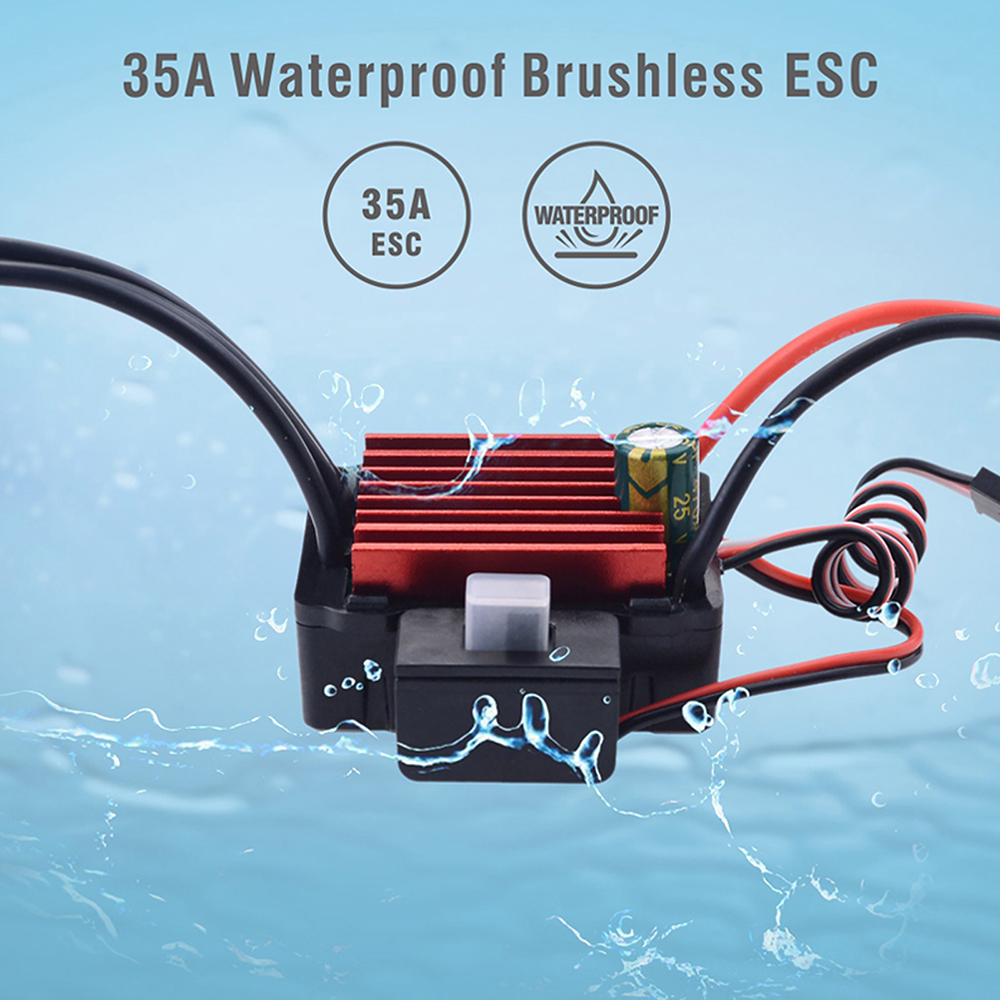

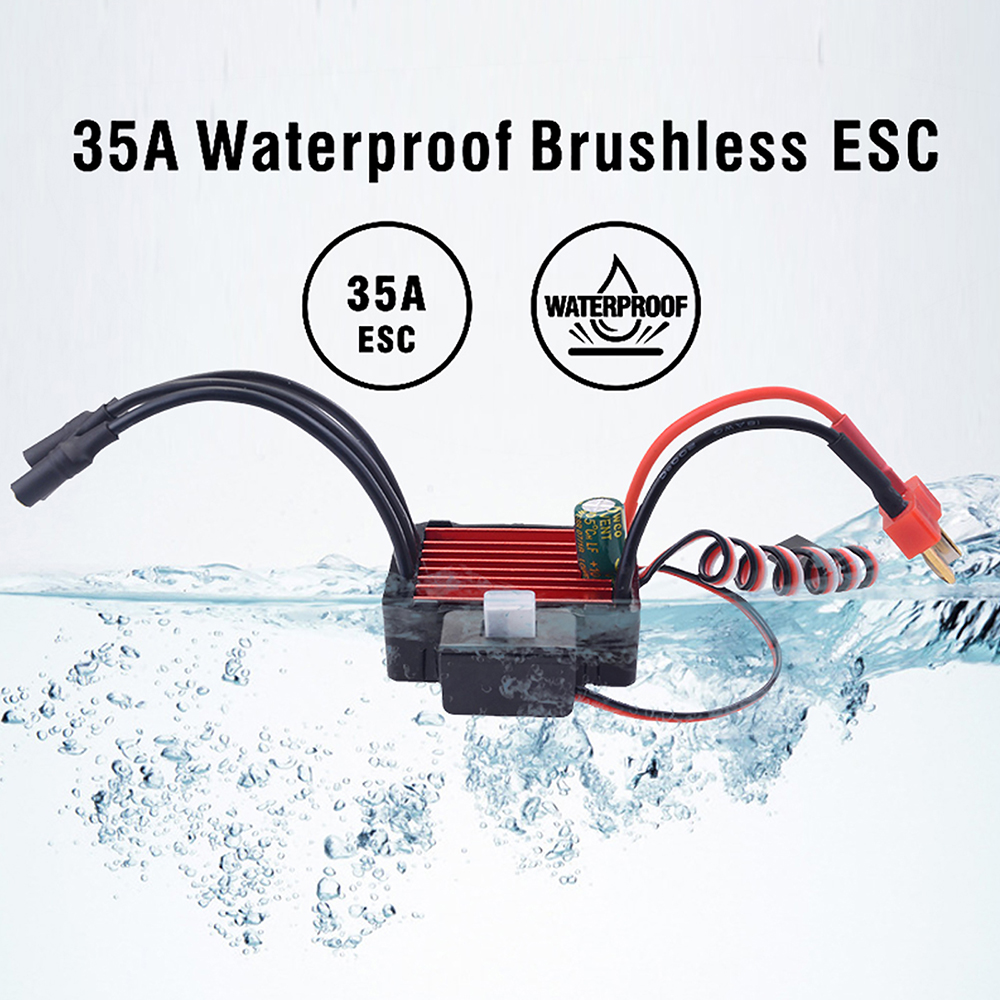

35A ESC
Specification:
Brand: SURPASSHOBBY
Name: KK 35A ESC
Cont.Current/Burst Current: 35A/120A
Motor Type: Sensorless Brushless Motor
For 2S Lipo or 6 cells NiMH :
1. on-road: 28XX-Size or smaller motor with the KV<6000KV
2. off-road/Buggy/Monster: 28XX-size or smaller motor with the KV <4000KV
For 3S Lipo or 9 cells NiMH :
1. on-road: 28XX-Size or smaller motor with the KV<4000KV
2. off-road/Buggy/Monster: 28XX-size or smaller motor with the KV <3000KV
Suitable Car: 1/16 1/14 Car
Resistance: 0.0004ohm
Battery: 2-3S Lipo/4-9Cells NiMH
BEC Output: 5.0V/2A(analog mode)
Dimensions/Weight: 40x32x20mm/37g
45A ESC
Specification:
Brand: SURPASSHOBBY
Name: KK 45A ESC
Cont.Current/Burst Current: 45A/240A
Motor Type: Sensorless Brushless Motor
for 2S Lipo or 6 cells NiMH :
1. on-road: 3650-Size or smaller motor with the KV<5600KV
2. off-road/Buggy/Monster: 3660-size or smaller motor with the KV <3800KV
for 3S Lipo or 9 cells NiMH :
1. on-road: 3660-Size or smaller motor with the KV<3800KV
2. off-road/Buggy/Monster: 3660-size or smaller motor with the KV <2600KV
Suitable Car: 1/10 Car
Resistance: 0.0014ohm
Battery: 2-3S Lipo/4-9Cells NiMH
BEC Output: 5.8V/3A (Switch mode)
Dimensions/Weight: 51.5x68.5x38.5mm/76g

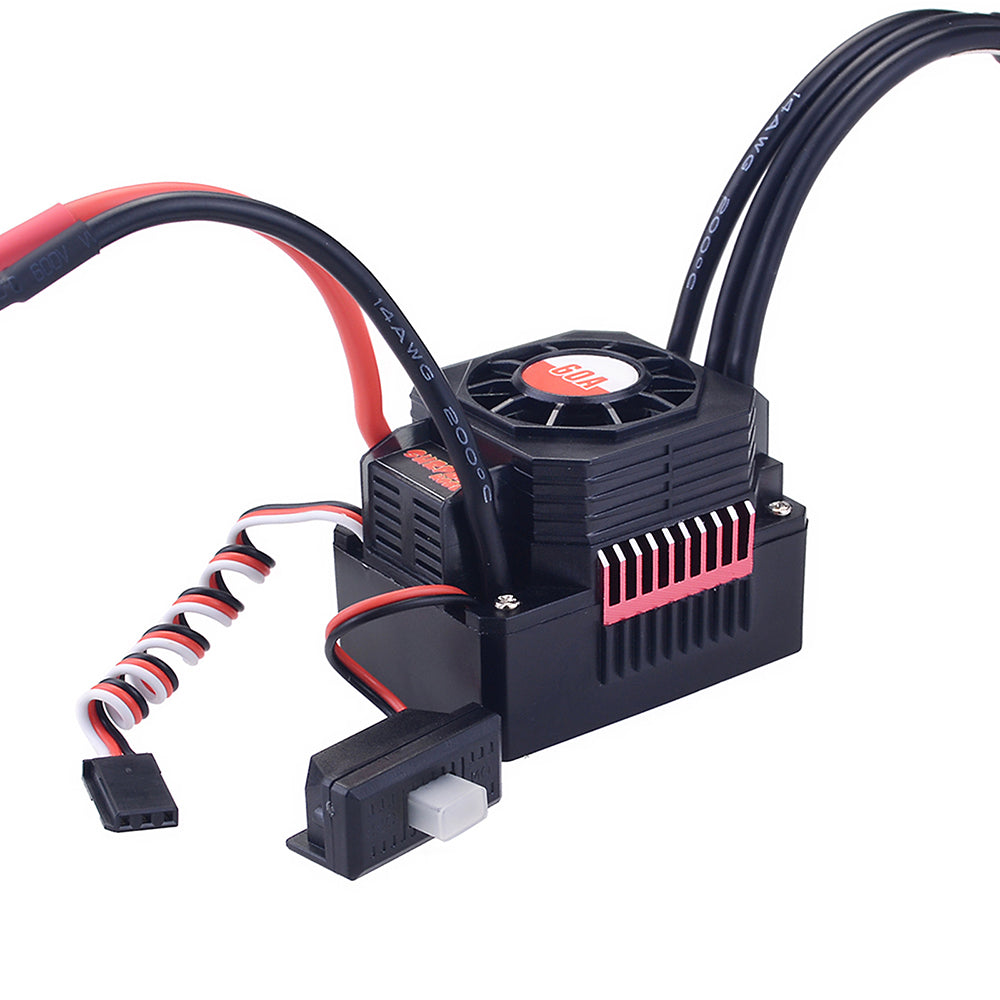

60A ESC
ESC Specifications:
Brand: SURPASSHOBBY
Name: KK 60A ESC
Cont.Current/Burst Current: 60A/360A
Motor Type: Sensorless Brushless Motor
For 2s Lipo or 6 cells NIMH :
1.on-road : 3660-size or smaller motor with the KV < 6000
2.Off-road / Buggy / Monster : 3660-size or smaller motor with the KV < 4000
For 3S Lipo or 9 cells NIMH :
1.On-road : 3660-size or smaller motor with the KV < 4000
2.Off-road / Buggy / Monster : 3660-sizeor smaller motor with the KV < 3000.
Suitable Car: 1/10 Car
Resistance: 0.0007ohm
Battery: 2-3S Lipo/4-9Cells NiMH
BEC Output: 5.8V/3A (Switch mode)
Size: 51.5 x 38.5 x 38.5mm
Weight: 76g
80A ESC
Specification:
Brand: SURPASSHOBBY
Name: KK 80A ESC
Cont.Current/Burst Current: 80A/480A
Motor Type: Sensorless Brushless Motor
For 2S Lipo or 6 cells NiMH :
1. on-road: 3670-Size or smaller motor with the KV<3000KV
2. off-road/Buggy/Monster: 3670-size or smaller motor with the KV <3000KV
For 3S Lipo or 9 cells NiMH :
1. on-road: 3660-Size or smaller motor with the KV<3000KV
2. off-road/Buggy/Monster: 3660-size or smaller motor with the KV <2500KV
Suitable Car: 1/10 1/8 Car
Resistance: 0.0005ohm
Battery: 2-3S Lipo/4-9Cells NiMH
BEC Output: 6.1V/3A (Switch mode)
Dimensions/Weight: 51.5x38.5x38.5mm/84g
120A ESC
Specification:
Brand: SURPASSHOBBY
Name: KK 120A ESC
Cont.Current/Burst Current: 120A/600A
Motor Type: Sensorless Brushless Motor
For 4S Lipo or 12 cells NiMH :
1. on-road: 40XX-Size or smaller motor with the KV<3000KV
2. off-road/Buggy/Monster: 40XX-size or smaller motor with the KV <2500KV
For 6S Lipo or 18 cells NiMH :
1. on-road: 40XX-Size or smaller motor with the KV<2500KV
2. off-road/Buggy/Monster: 40XX-size or smaller motor with the KV <2000KV
Suitable Car: 1/8 Car
Resistance: 0.00035ohm
Battery: 3-6S Lipo/9-18Cells NiMH
BEC Output: 6.1V/3A (Switch mode)
Dimensions/Weight: 160x100x62mm/135g

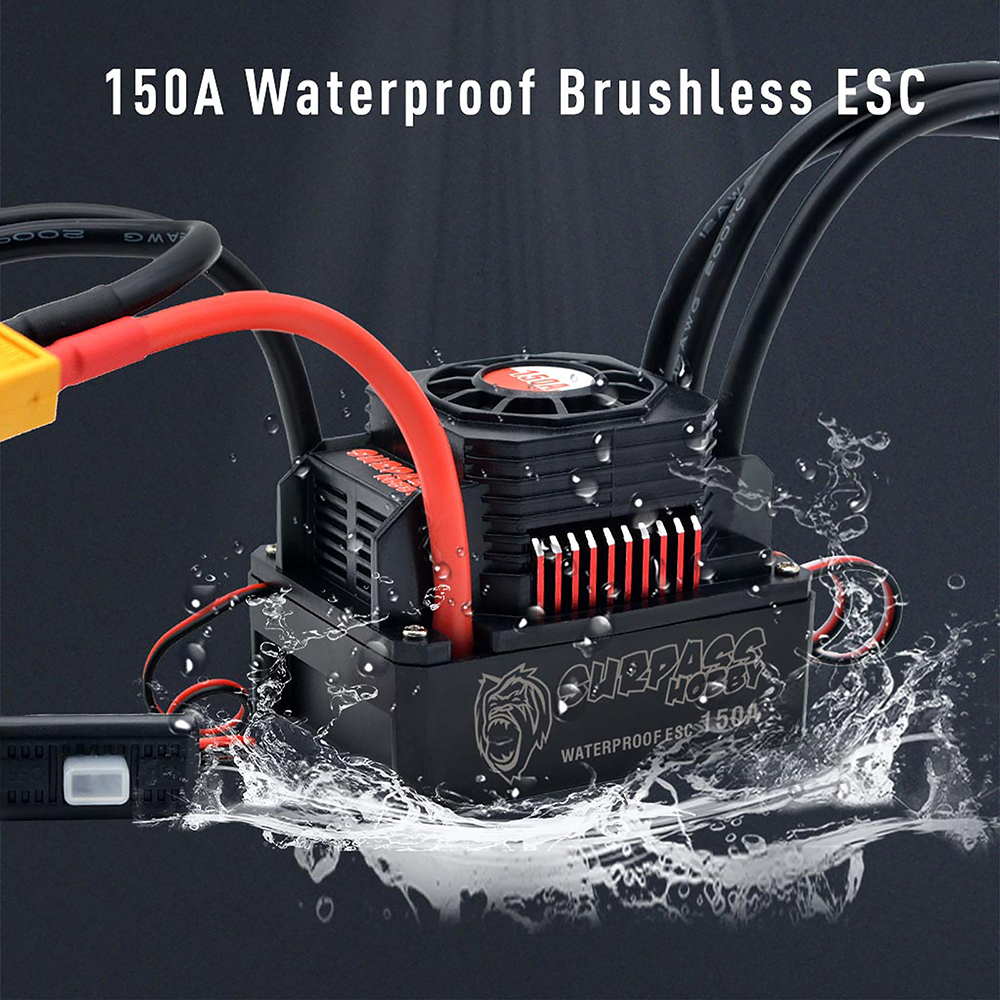

150A ESC
Specification:
Brand: SURPASSHOBBY
Name: KK 150A ESC
Cont.Current/Burst Current: 150A/720A
Motor Type: Sensorless Brushless Motor
For 4S Lipo or 12 cells NiMH :
1. on-road: 40XX-Size or smaller motor with the KV<3000KV
2. off-road/Buggy/Monster: 40XX-size or smaller motor with the KV <2500KV
For 6S Lipo or 18 cells NiMH :
1. on-road: 40XX-Size or smaller motor with the KV<2500KV
2. off-road/Buggy/Monster: 40XX-size or smaller motor with the KV <2000KV
Suitable Car: 1/8 Car
Resistance: 0.0003ohm
Battery: 3-6S Lipo/9-18Cells NiMH
BEC Output: 6.1V or 7.4V/3A (Switch mode)
Dimensions/Weight: 160x100x62mm/148g
Package included:
1 * SURPASSHOBBY Waterproof ESC
