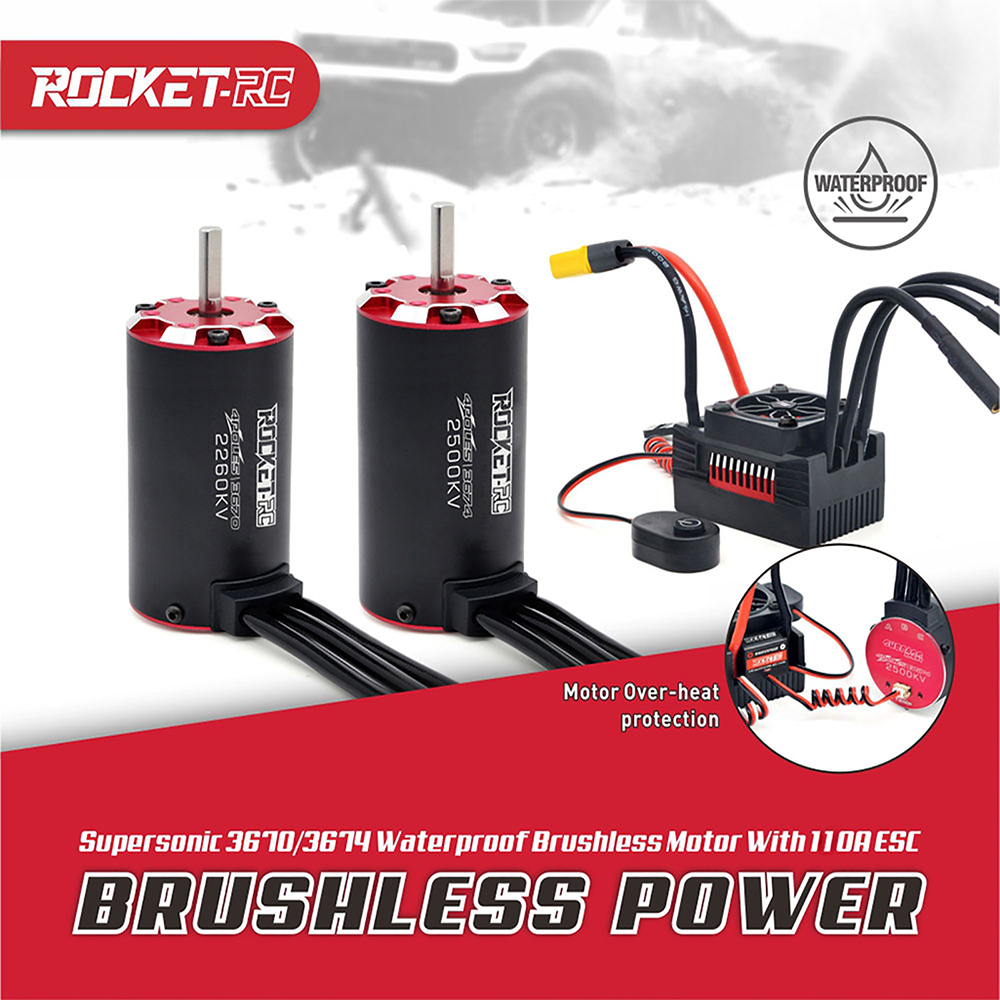

ROCKET-RC 3670/3674 Brushless Motor & ESC Combo
- £17.99
- £17.99
- Unit price
- per
Please hurry! Only 73 left in stock
10 customers are viewing this product
Couldn't load pickup availability
2-Year Warranty
Quality parts, fully tested before dispatch.
30-Day Returns
Hassle-free returns if you change your mind.
Dispatched in 24h
In stock now — fast, tracked worldwide shipping.
Technical Specifications
| Brand | ROCKET-RC |
| Brand Name | ROCKET-RC |
| Product Name | Supersonic V2 LED Program Card |
| Use | Vehicles & |
| For Vehicle Type | Cars |
| Only Apply To | Supersonic Rocket V2 Motor |
| Material | plastic |
| Low Voltage Cut-Off | The function is mainly to prevent the lithium |
| Warning | Never use the default value “Non-protection” for lithium |
| Maximum Brake Force | 50%、25%、75%、100%、Disable(default |
| Maximum Reverse Force | 25%、50%、75%、100%(default value 25%) |
| Neutral Range | 9%(narrow),6%(Normal),12%(Wide) (default value 9%) |
| Running Mode | Fwd/Rev/Br、Fwd /Br、Fwd/Rev(default value |
| Drag Brake Force | 0%、5%、10%、20%、30%(default value 0%) |
| Size | 70*43*13mm |
| Weight | 24g |
| Item Weight | 33.5 g |
| Package Size (cm) | 18*15*4 |
| Shipped Weight | 41.5 g |

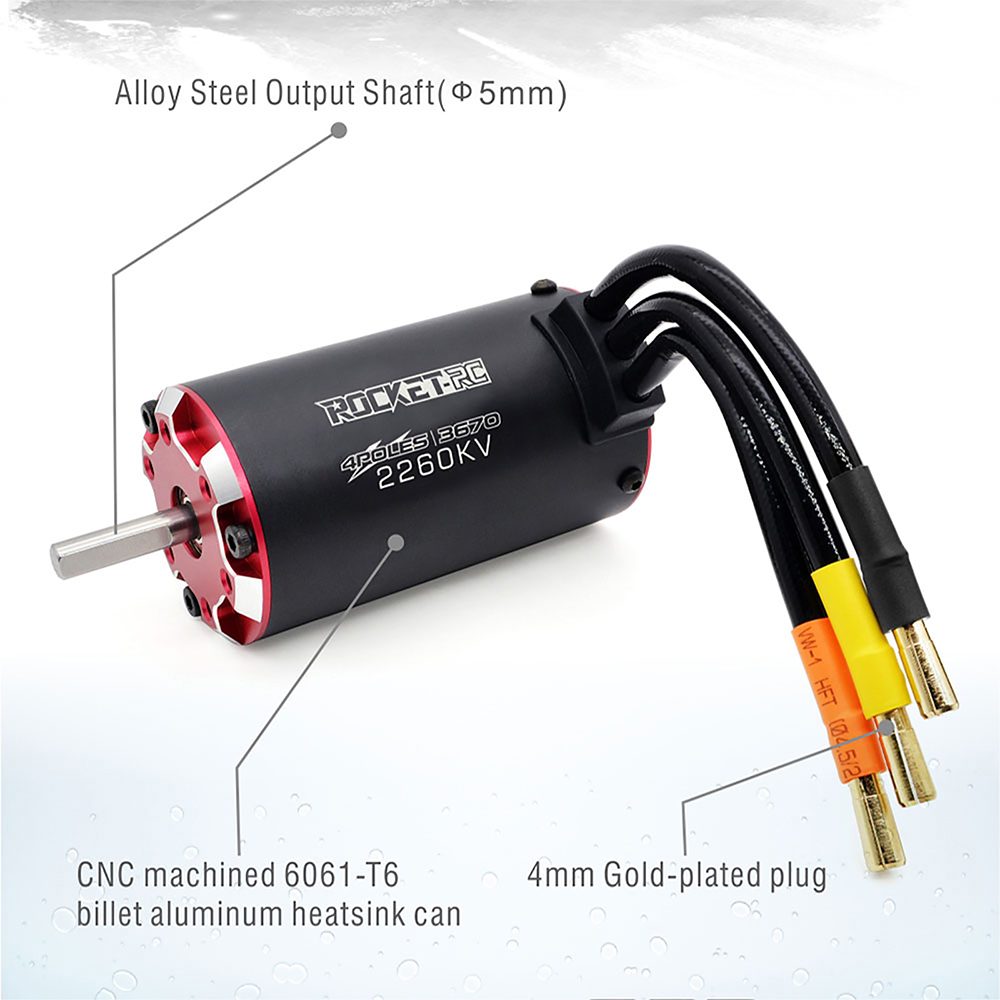

1.Rocket V2 Supersonic 3670 3674 Brushless Motor Built-in Temperature Sensor for 1/8 1/10 Tamiya GTR Traxxas RC Drift Racing Off-road Car

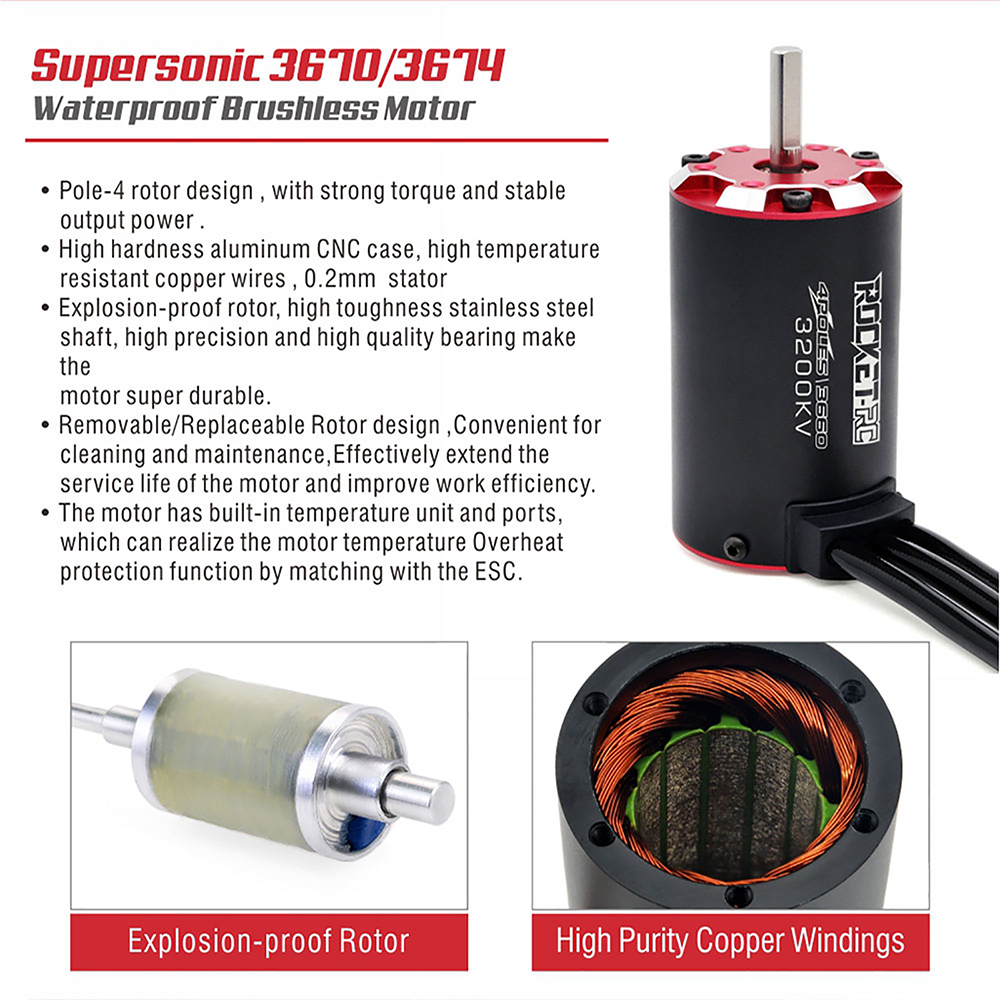

Features:
1.Brushless Motor Design: Pole-4 rotor design , with strong torque and stable output power . Removable/Replaceable Rotor design, Convenient for cleaning and maintenance, Effectively extend the service life of the motor and improve work efficiency.
2.1/10 Brushless Motor and ESC: Suitable for 1/8 1/10 RC Car
3.For Traxxas Brushless Motor: RC brushless motor for Tamiya GTR Traxxas RC Drift Racing Off-road Car
4.RC Car Brushless Motor Material: High hardness aluminum CNC case, high temperature resistant copper wires , 0.2mm stator.
Explosion-proof rotor, high toughness stainless steel shaft, high precision and high quality bearing make the motor super durable.

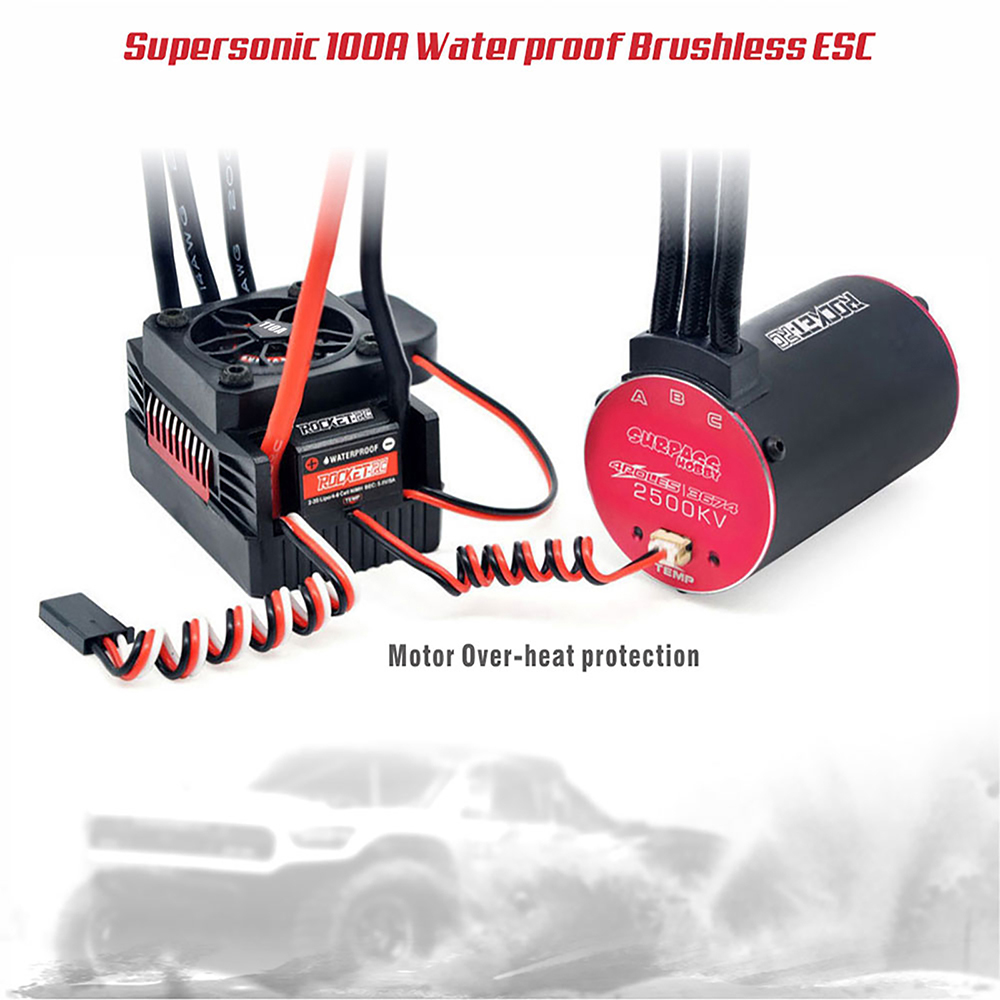

5.Brushless RC Motor Protection Function: The motor has built-in temperature unit and ports, which can realize the motor temperature overheat protection function by matching with the ESC.
Descriptions:
SURPASSHOBBY Rocket-RC V2 Supersonic 3670 3674 Brushless Motor for 1/8 1/10 Tamiya GTR Traxxas RC Drift Racing Off-road Car,has undergone strict high voltage test, internal resistance screening, precision dynamic balance, equipment locked rotor and other professional tests to ensure the factory quality of the motor.

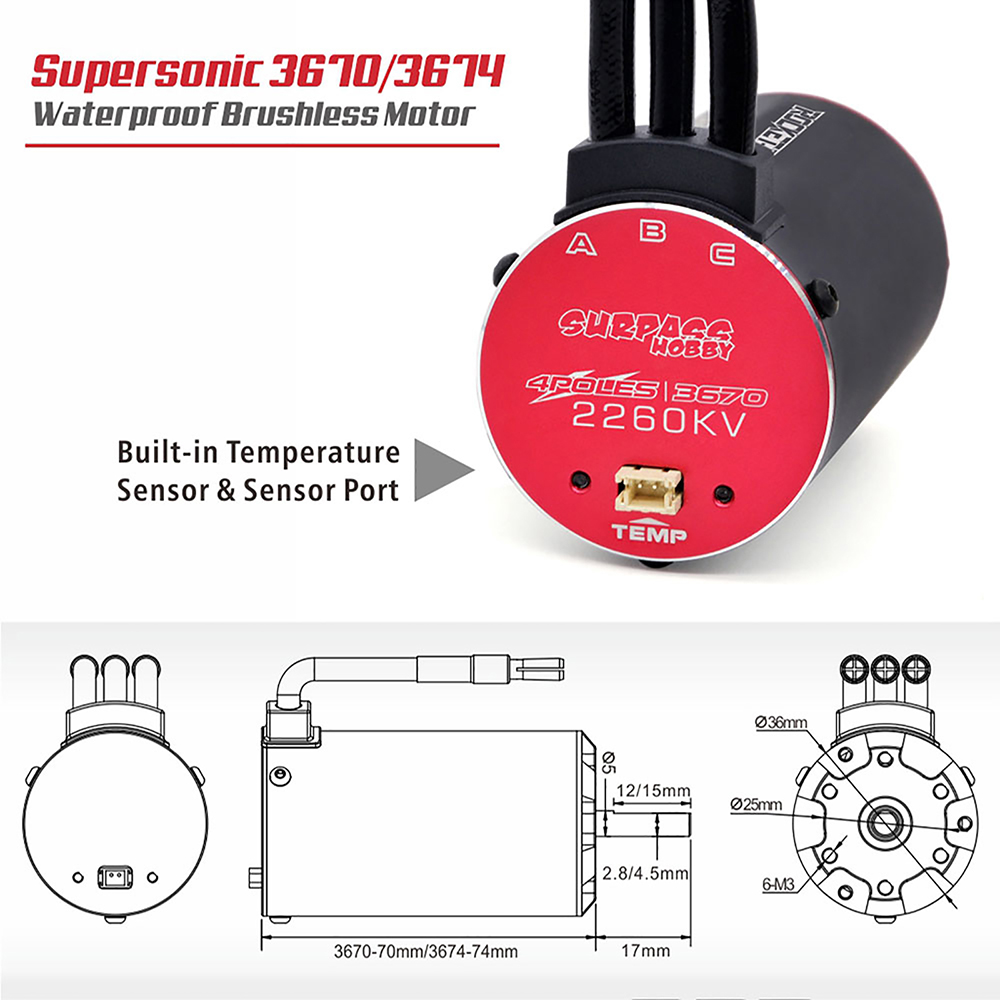

Specifications:
Brand: Rocket-RC
Color: Black
Max RPM: 50000
Rotor poles: 4
Diameter: 36mm
Shaft: 5.0mm
Shaft length: 17mm
Connector: 4.0mm gold

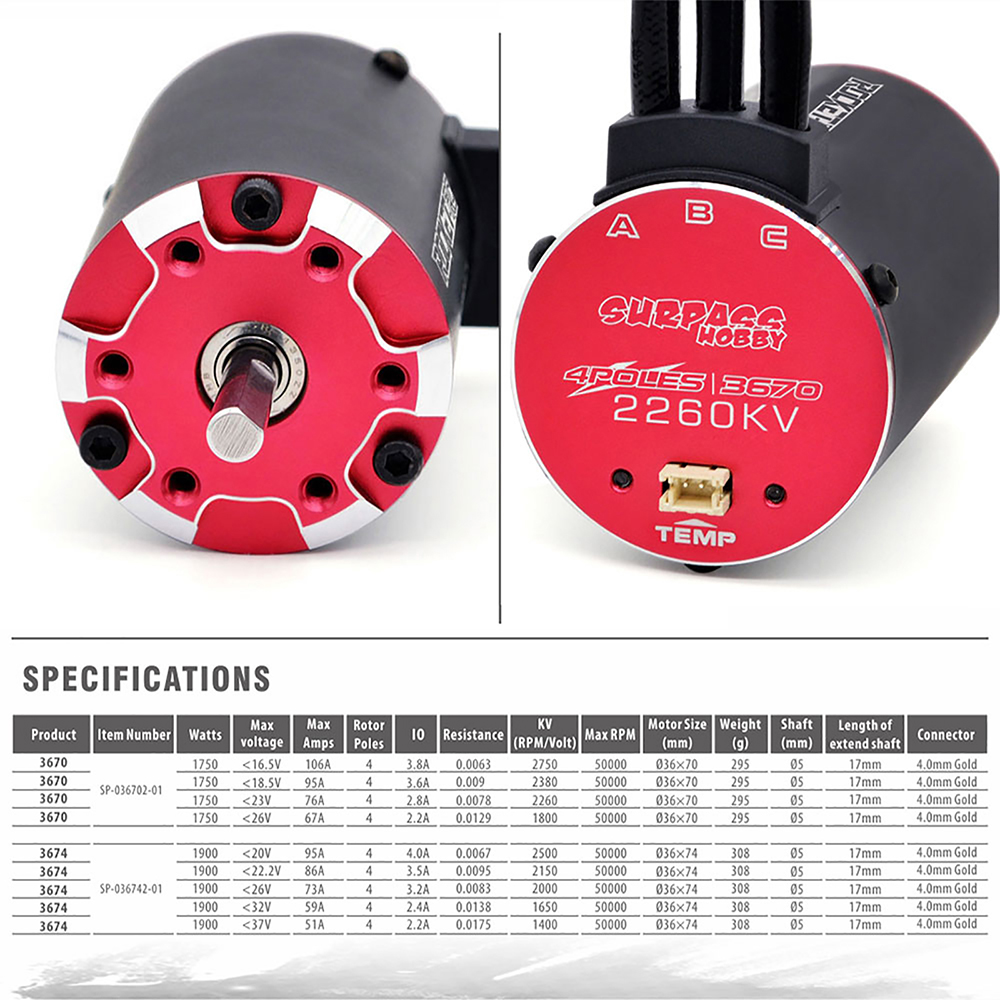

3670 Motor
Name: 3670 RC Brushless Motor
KV(RPM/Volt): 2750KV/2380KV/2260KV/1800KV
Max Voltage: ＜16.5V / 18.5V / 23V / 26V
Watt: 1750
Length: 70mm
Weight: 300g
3674 Motor
Name: 3674 RC Brushless Motor
KV(RPM/Volt):2500KV/2150KV/2000KV/1650KV/1400KV
Max Voltage: ＜20V / 22.2V / 26V / 32V / 37V
Watt:1900
Length: 74mm
Weight: 315g

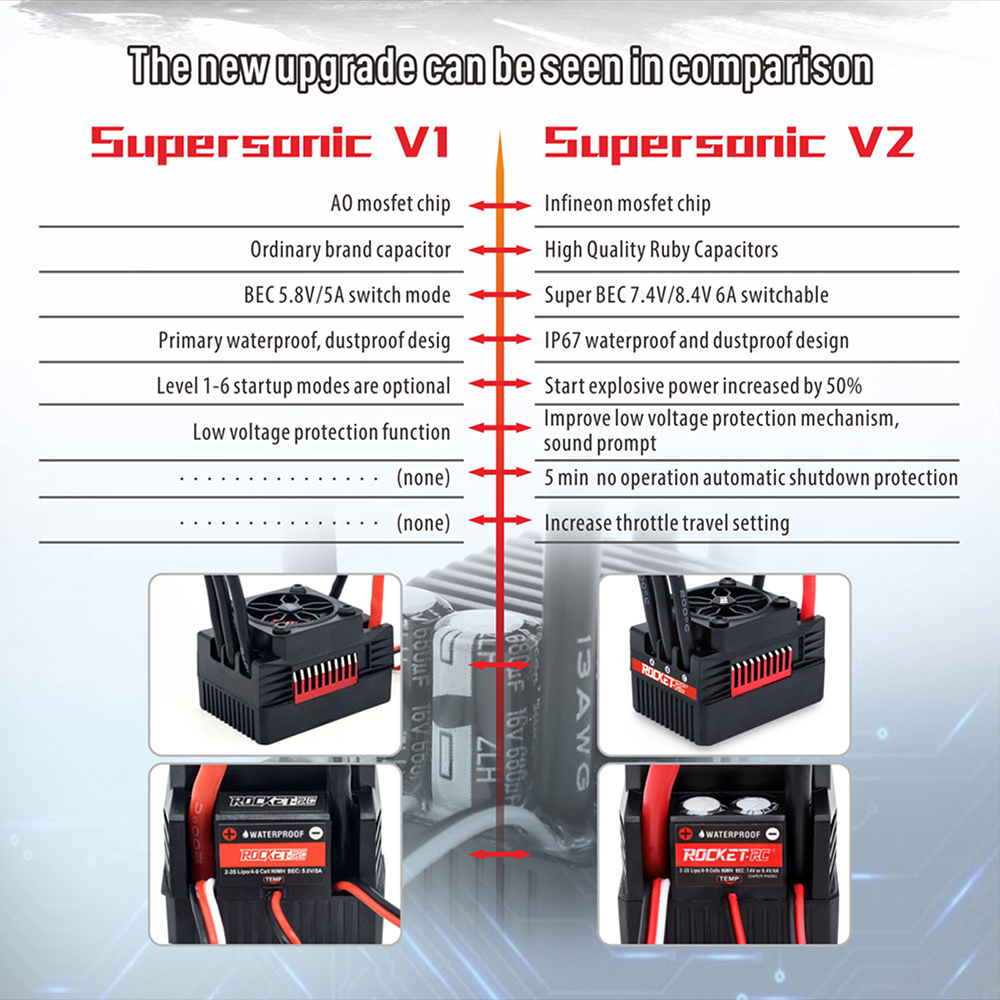

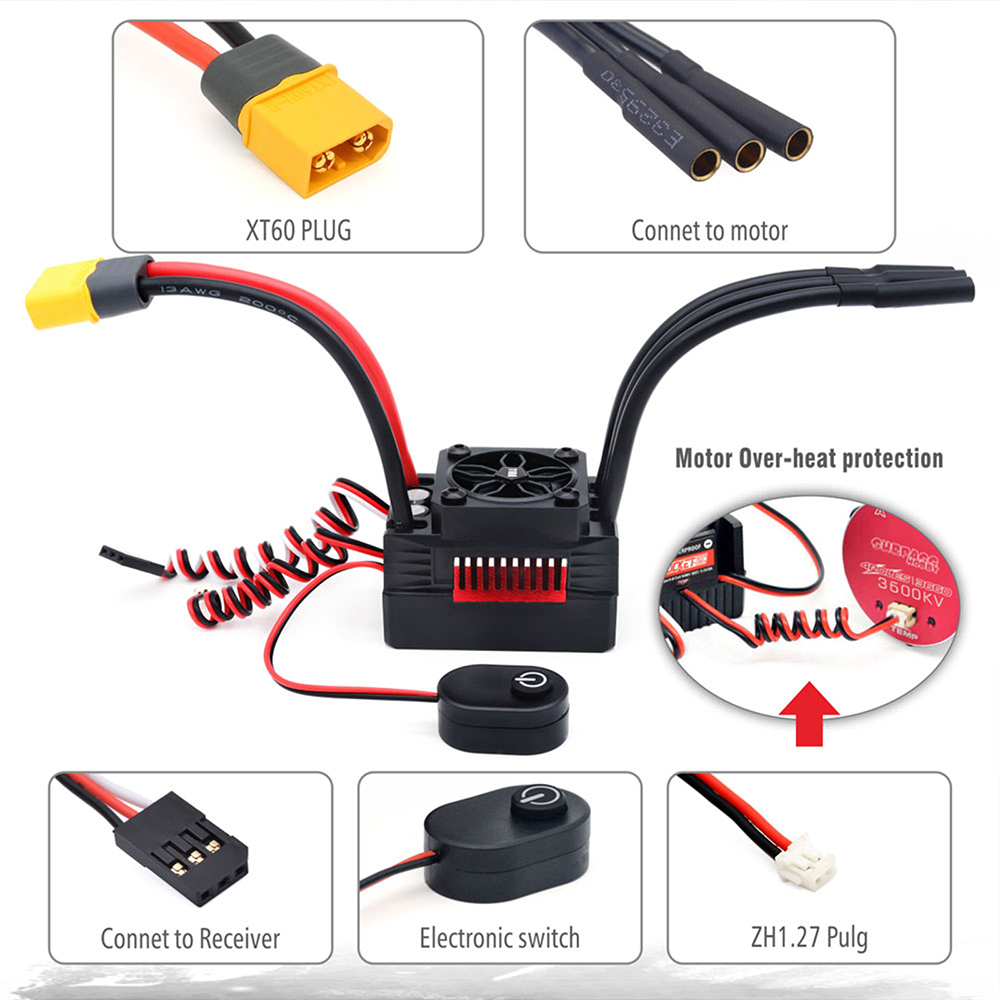

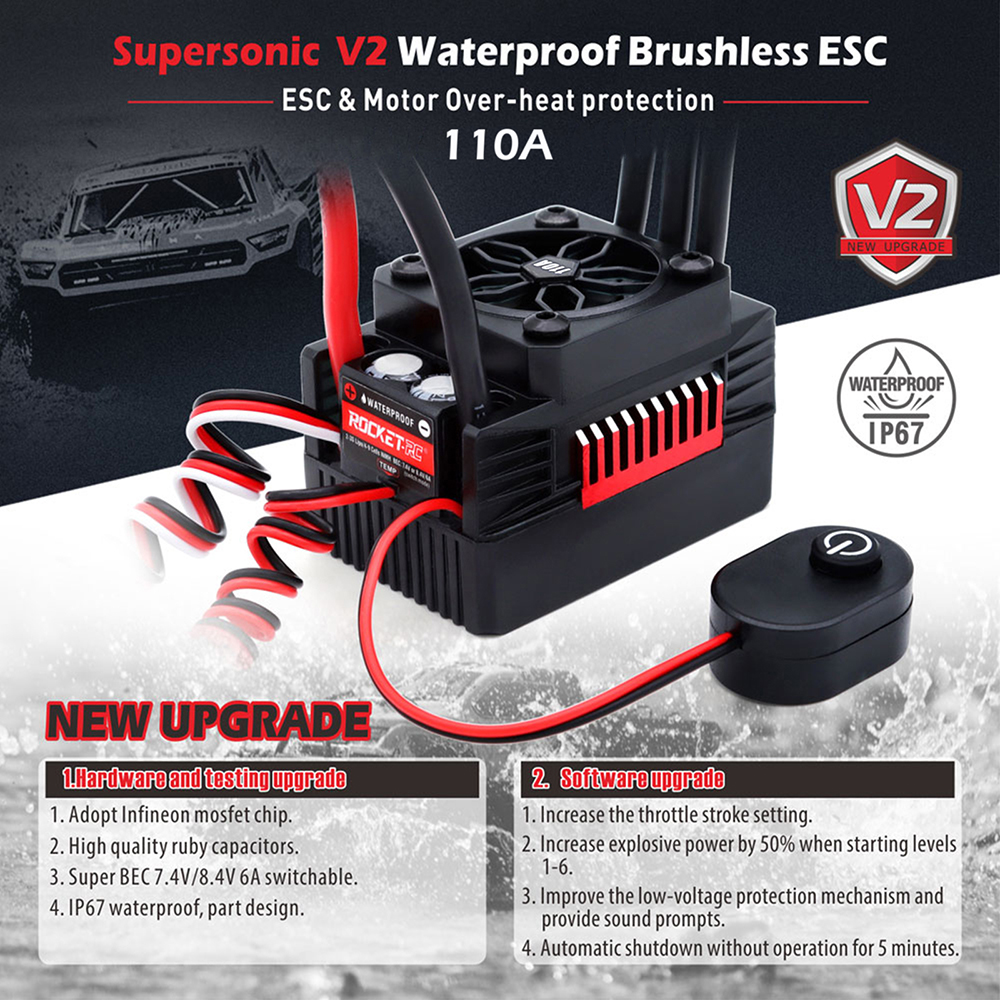

2.Rocket V2 Supersonic 110A ESC Waterproof Brushless Speed Controller with 7.4V/8.4V 6A BEC for 3670 3674 Motor 1:10 RC Car Parts

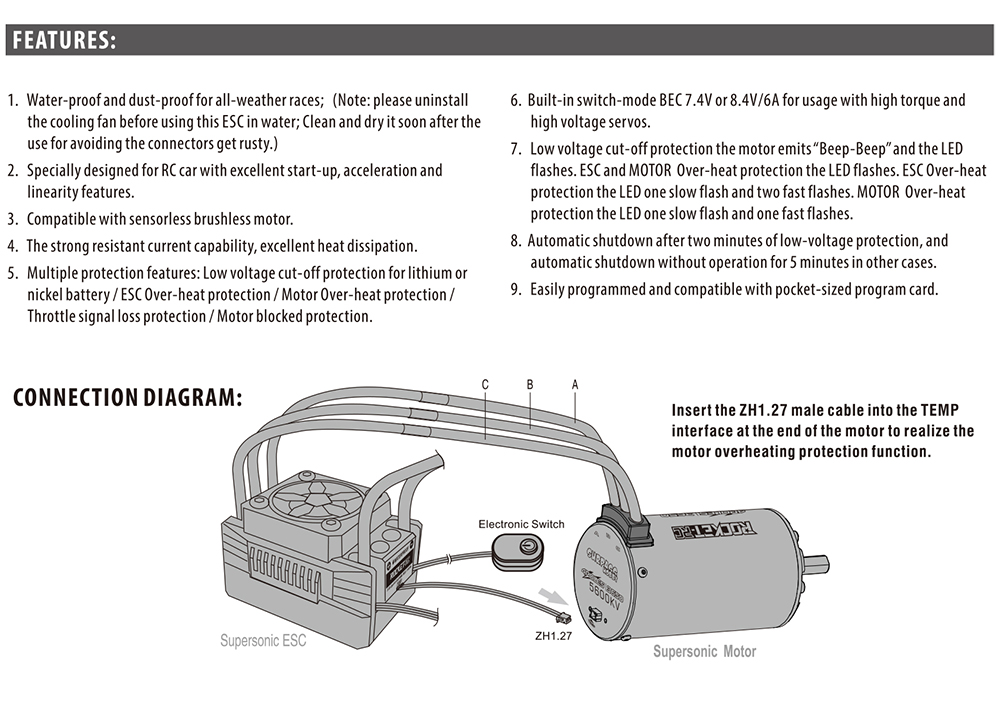

Features:

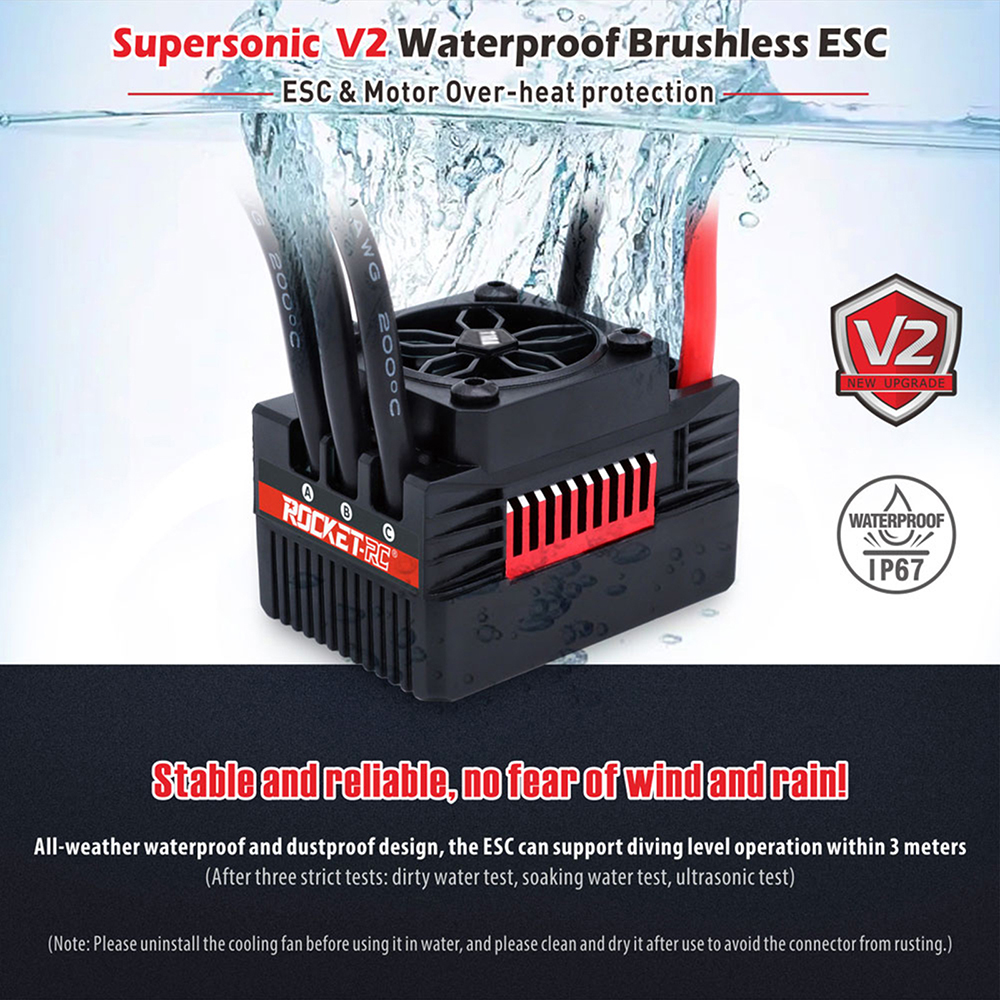

1.Water-proof ESC: Water-proof and dust-proof for all-weather races; (Note: please uninstall the cooling fanbefore using this ESC in water; Clean and dry it soon after the use for avoiding the
connectors get rusty.)
2.RC ESC 1/10: Specially designed for for 3670 3674 Motor 1:10 RC car parts .Easily programmed and compatible with pocket-sized program card.with excellent start-up,acceleration and linearity features.
3.Brushless ESC: Compatible with sensorless brushless motor.The strong resistant current capability, excellent heat dissipation.
4.Multiple Protection Features: Low voltage cut-off protection for lithium or nickel battery/ESC Over-heat protection / Motor Over-heat protection/ Throttle signal loss protection/Motor blocked protection/
5.Electric Speed Controller: Built-in switch-mode BEC 7.4V/8.4V 6A for usage with high torque and high voltage servos.
Descriptions:

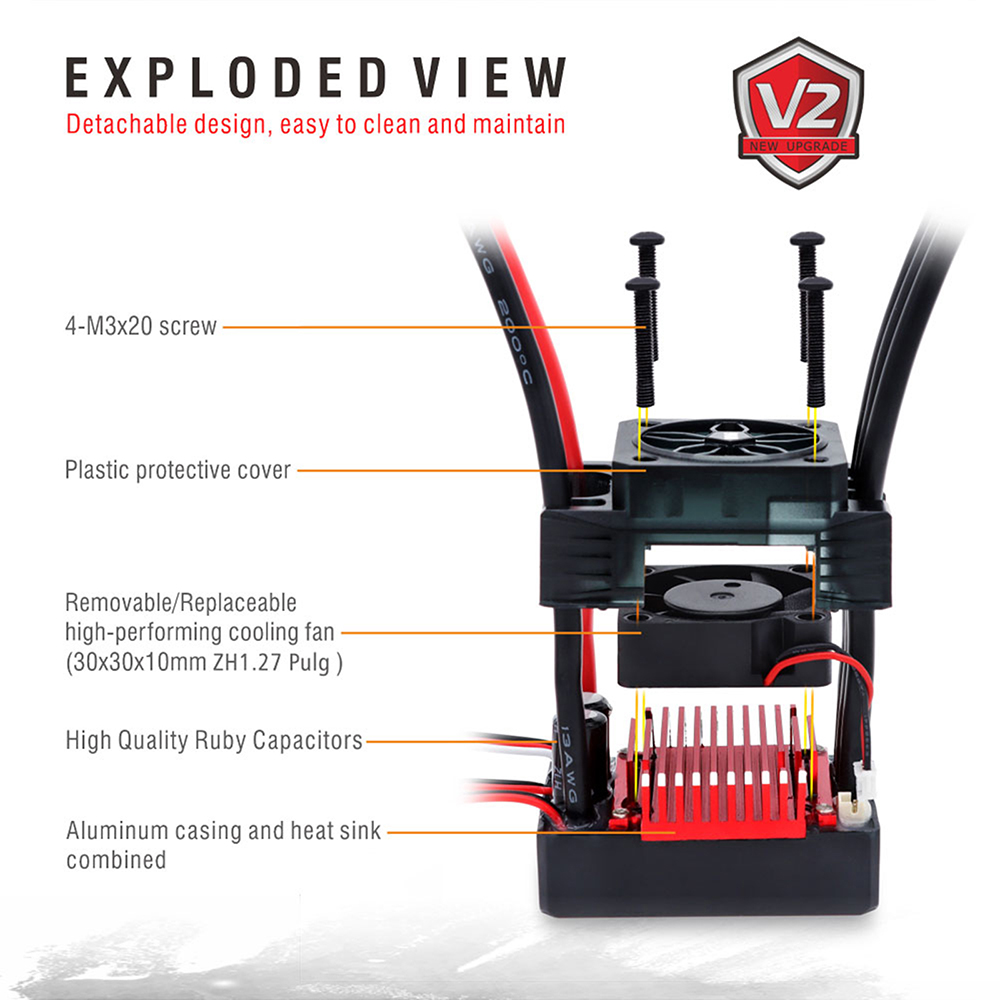

Rocket V2 Supersonic 110A ESC Waterproof Brushless Speed Controller ,with 5.8V/5A BEC for 3670 3674 Motor 1:10 RC Car Parts. Aluminum casing and heat-sink combined,and with cooling fan, Super good heat dissipation effect!

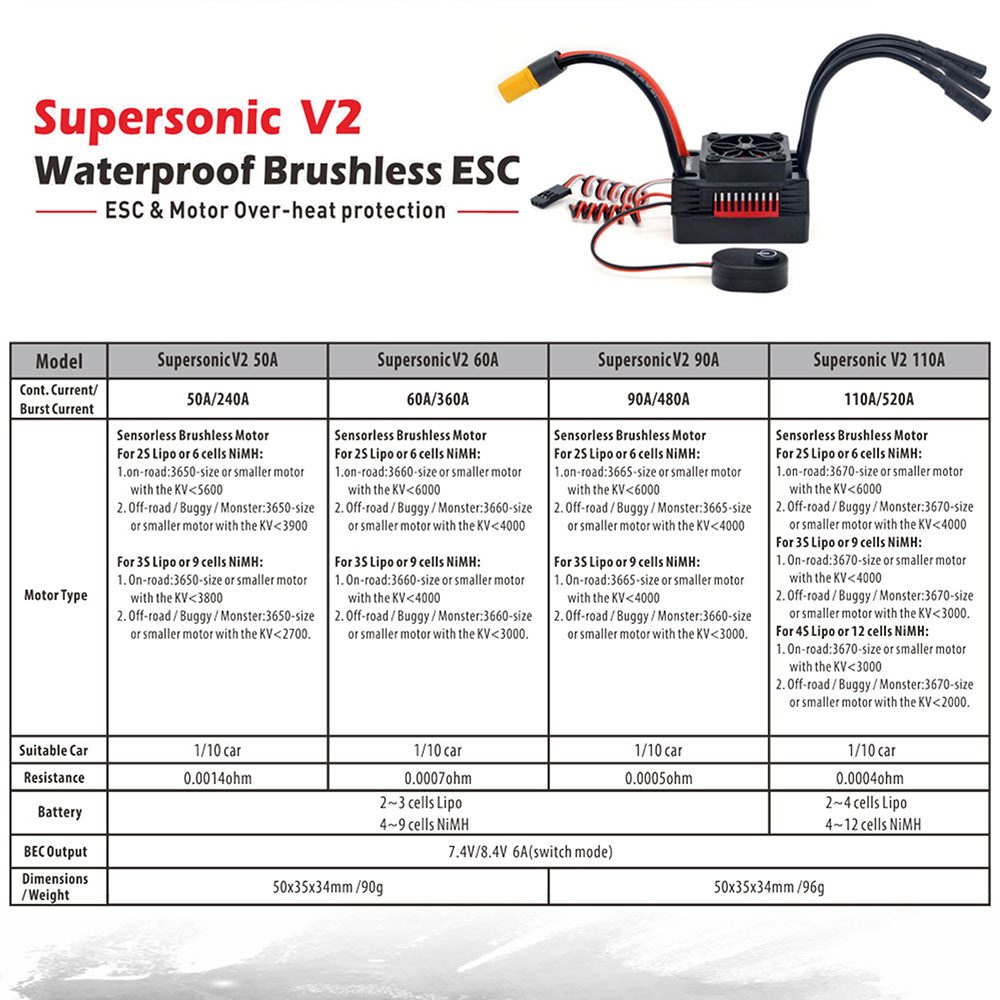

Specifications:
Brand: Rocket-RC
Item name: Supersonic 110A ESC
Cont.Current:110A
Burst Current: 520A
Motor Type: for Sensorless Brushless Motor
For 2S Lipo or 6 cells NIMH:
1 . on-road: 3670-size or smaller motor with the KV < 6000
2 . Off-road / Buggy / Monster: 3650-size or smaller motor with the KV < 4000
For 3S Lipo or 9 cells NIMH:
1 . On-road: 3670-size or smaller motor with the KV < 4000
2 . Off-road / Buggy / Monster: 3650 -size or smaller motor with the KV < 3000.
For 4S Lipo or 12 cells NIMH:
1 . On-road: 3670-size or smaller motor with the KV < 3000
2 . Off-road / Buggy / Monster: 3650 -size or smaller motor with the KV < 2000.
Resistance: 0.0014ohm
Suitable Car: 1/10 RC car
Battery: 2-4S Lipo/4-12Cells NiMH
BEC Output: 7.4V/8.4V 6A(switch mode）
Size: 50x35x34mm
Weight: 81g
Package Included:
1 x Rocket 3670 Brushless Motor
1 x Rocket-RC 110A ESC
1 x English Manual

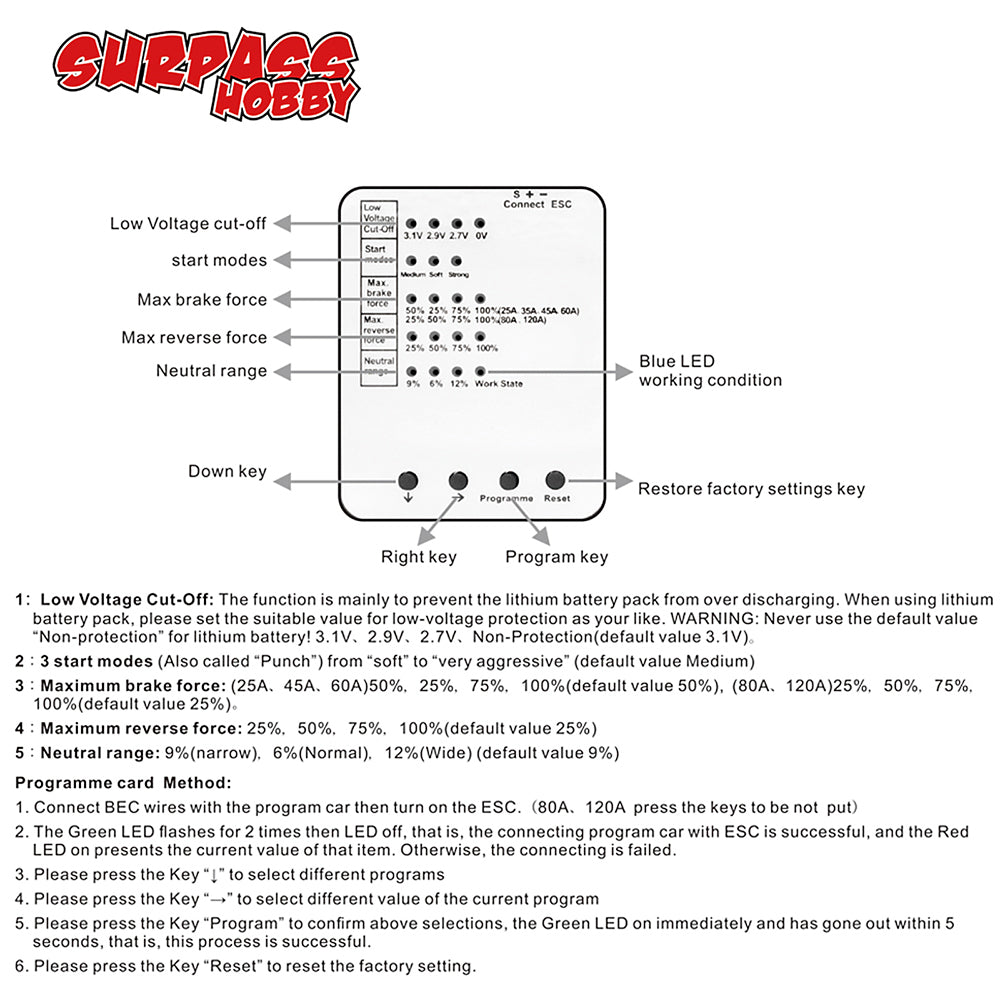

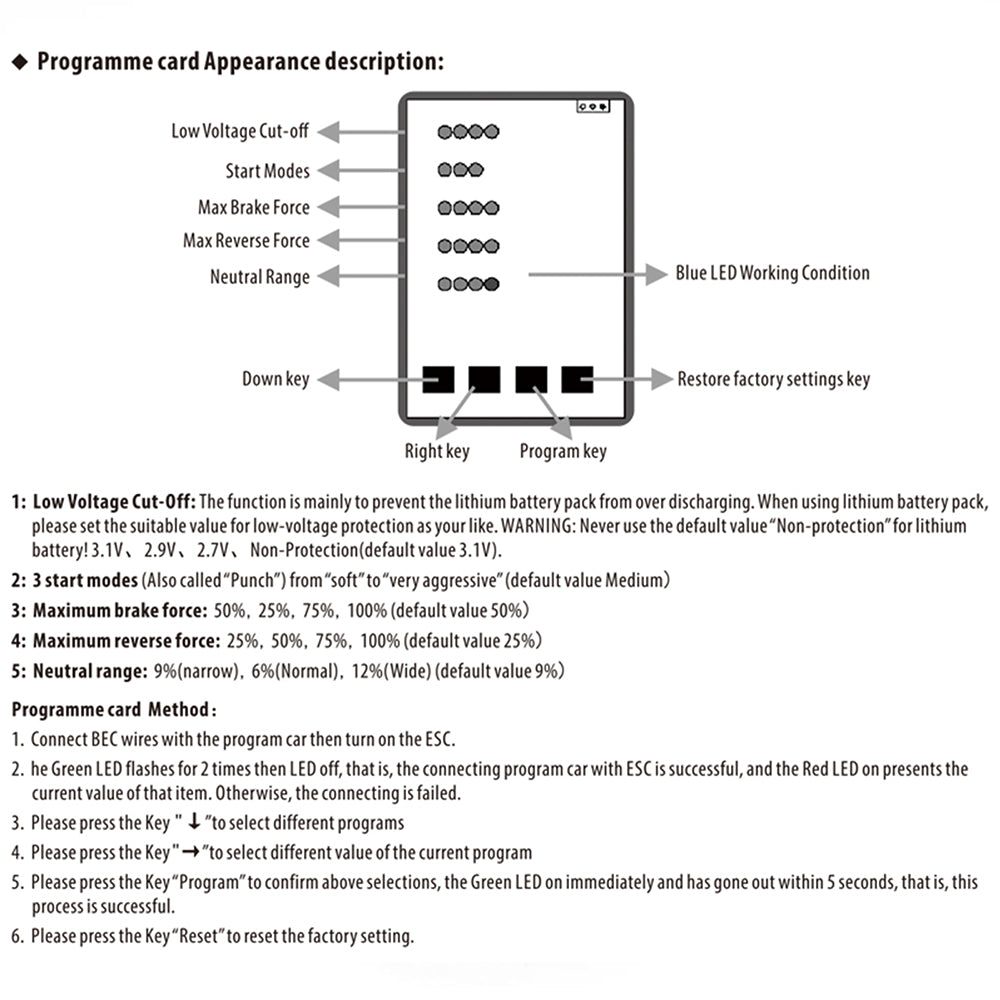

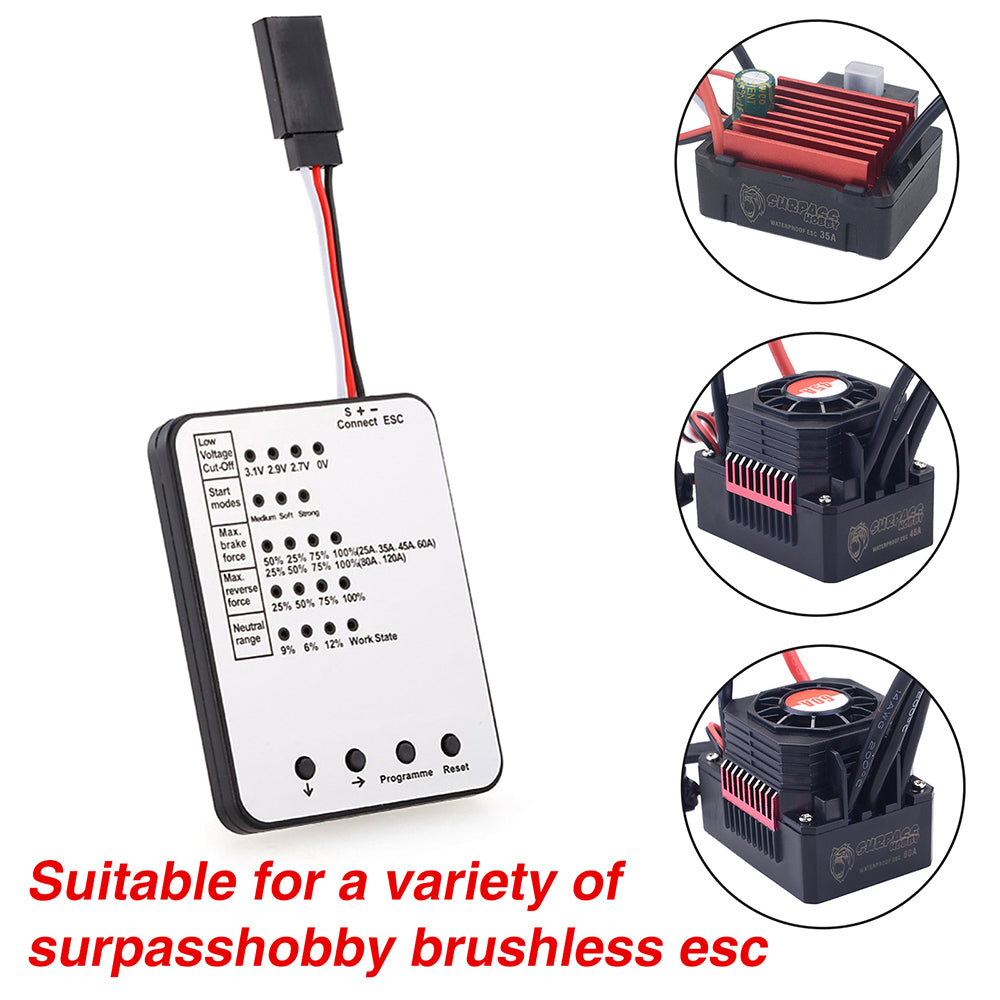

3.Surpass Hobby Supersonic LED ESC Program Card for Rocket-RC V2 50A/60A/90A/110A/130A/160A ESC Brushless Electronic Speed Controller For RC Car
Features:
1.ESC Programming Card: Specially designed for Rocket V2 Supersonic 50A/60A/90A/110A/130A/160A ESC with excellent start-up, acceleration and linearity features
2.Program Card for RC: Compatible with Supersonic Rocket V2 sensorless brushless motor
3.Performance: The strong resistant current capability, excellent heat dissipation. It can program brake force, reverse force, low voltage protection, start mode and neutral range
4.LED Programming Card: Easily programmed and compatible with pocket-sized program card.The setting card interface is very intuitive and friendly. It can easily set various parameters of electric regulation. The setting card is small and portable, which is very suitable for Outfield use
5.Low Voltage Cut-Off: The function is mainly to prevent the lithium
battery pack from over discharging. When using lithium battery pack,
please set the suitable value for low-voltage protection
Description:
Surpass Hobby Supersonic V2 LED Program Card specially designed for Rocket V2 Supersonic 50/60/90/130A/160A ESC with excellent start-up, acceleration and linearity features.Compatible with Supersonic Rocket V2 Motor sensorless brushless motor.Simple operation, suitable for a variety of ESC, is a good choice for RC fans.
Specifications:
Brand name: SURPASSHOBBY
Item name: Supersonic V2 LED Program Card
Use: Vehicles & Remote Control Toys
For Vehicle Type: Cars
Remote Control Peripherals/Devices: LED Program Card
Only Apply to: Supersonic Rocket V2 Motor
Material: plastic
1.Low Voltage Cut-Off: The function is mainly to prevent the lithium
battery pack from over discharging. When using lithium battery pack,
please set the suitable value for low-voltage protection as your like.
WARNING: Never use the default value “Non-protection” for lithium
battery! 3.1V Slow、2.9V Slow、2.7V Slow、Disable、3.4V Slow、3.1V
Stop、2.9V Stop、2.7V Stop、3.4V Stop(default value 3.1V Slow).
2.3 start modes (Also called “Punch”) Level3、Level1、Level6、Level2、 Level4、Level5、(default value Level3)
3.Maximum brake force: 50%、25%、75%、100%、Disable(default
value 50%)
4.Maximum reverse force: 25%、50%、75%、100%(default value 25%)
5.Neutral range: 9%(narrow),6%(Normal),12%(Wide) (default value 9%)
6.Motor Overheat Protection: 120℃Stop 、135℃ Stop、150℃
Stop、120℃ Slow、135℃ Slow、150℃ Slow、Disable(default value
120℃ Stop)
7.ESC Overheat Protection：105℃ Stop、95℃ Stop、105℃ Stop、 95℃ Stop、Disable(default 105℃ Stop)
8.Running Mode: Fwd/Rev/Br、Fwd /Br、Fwd/Rev(default value
Fwd/Rev/Br)(Fwd=Forward、Brk=Brake、Rev=Reverse)
9.Drag Brake Force: 0%、5%、10%、20%、30%(default value 0%).
Size:70*43*13mm
Weight:24g
Package included :
1x LED Program Card
1x Manual
