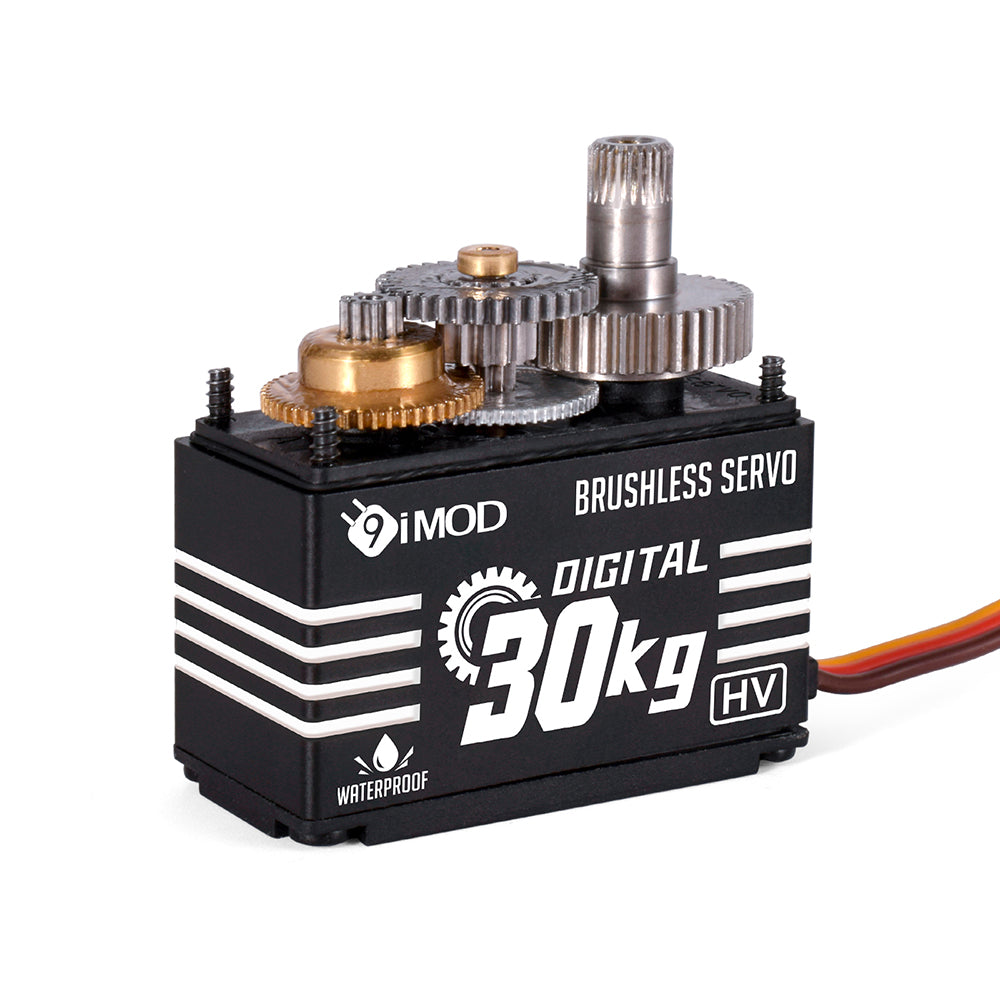

9imod BLS-HV Waterproof Metal Gear Digital Servo (20-40KG)
- £32.99
- £32.99
- Unit price
- per
Please hurry! Only 144 left in stock
10 customers are viewing this product
Couldn't load pickup availability
2-Year Warranty
Quality parts, fully tested before dispatch.
30-Day Returns
Hassle-free returns if you change your mind.
Dispatched in 24h
In stock now — fast, tracked worldwide shipping.
Technical Specifications
| Brand | 9IMOD |
| Color | Black |
| Gear Material | Metal Gear |
| Case Material | Aluminum alloy AL6061+Nylon additive |
| Control System | PWM Control (1500usec in the central point) |
| Operation Voltage Range | 6.0v ~8.4V |
| Direction | Re-clock wise/ Pulse Travel 500-2500 usec |
| Diver Type | Mos Drive |
| Motor Type | Brushless motor |
| Potentiometer Type | Direct Drive |
| Amplifier Type | Digital Control |

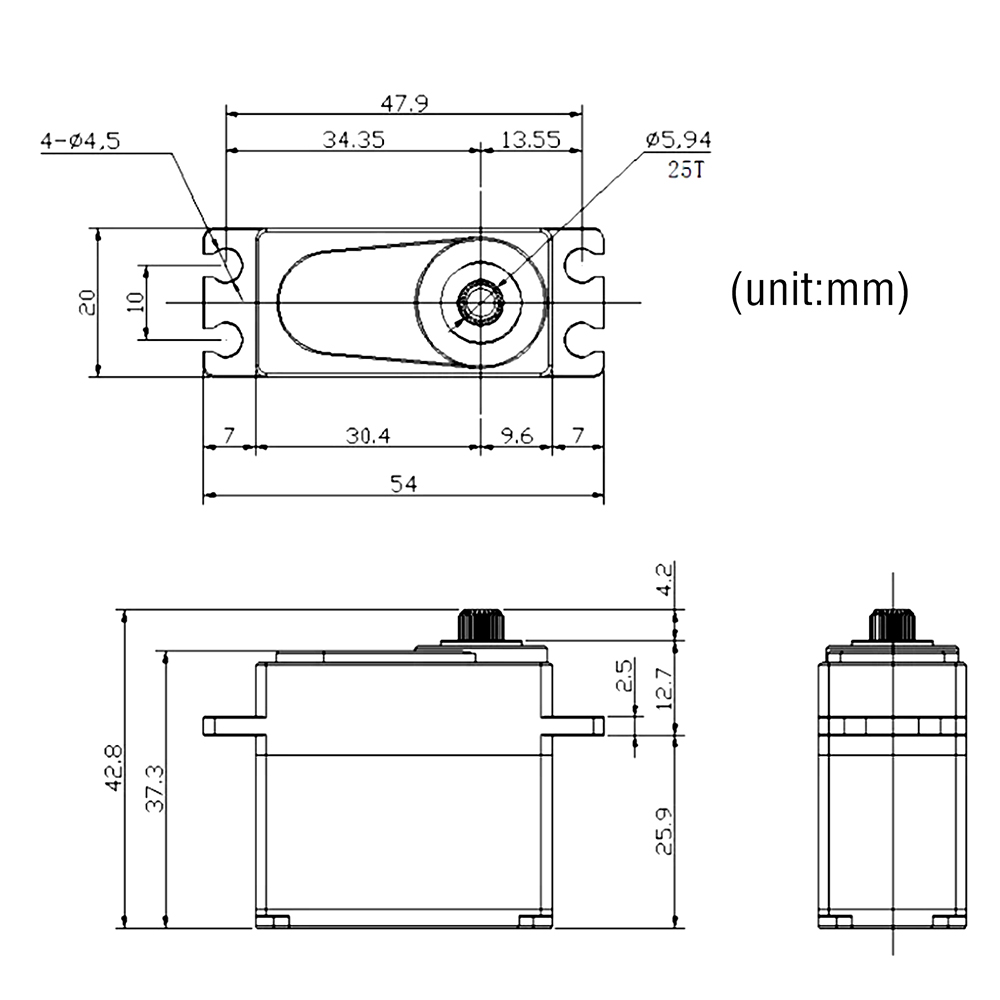

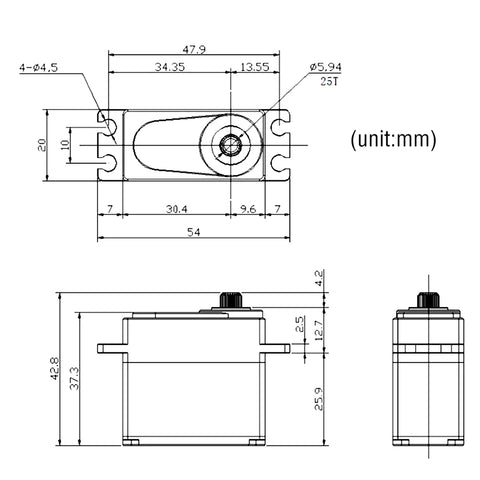

| Dimensions | 40x20x37.3mm |
| Weight | 69.2g (without servo horn) |
| Ball Bearing | 2BB |

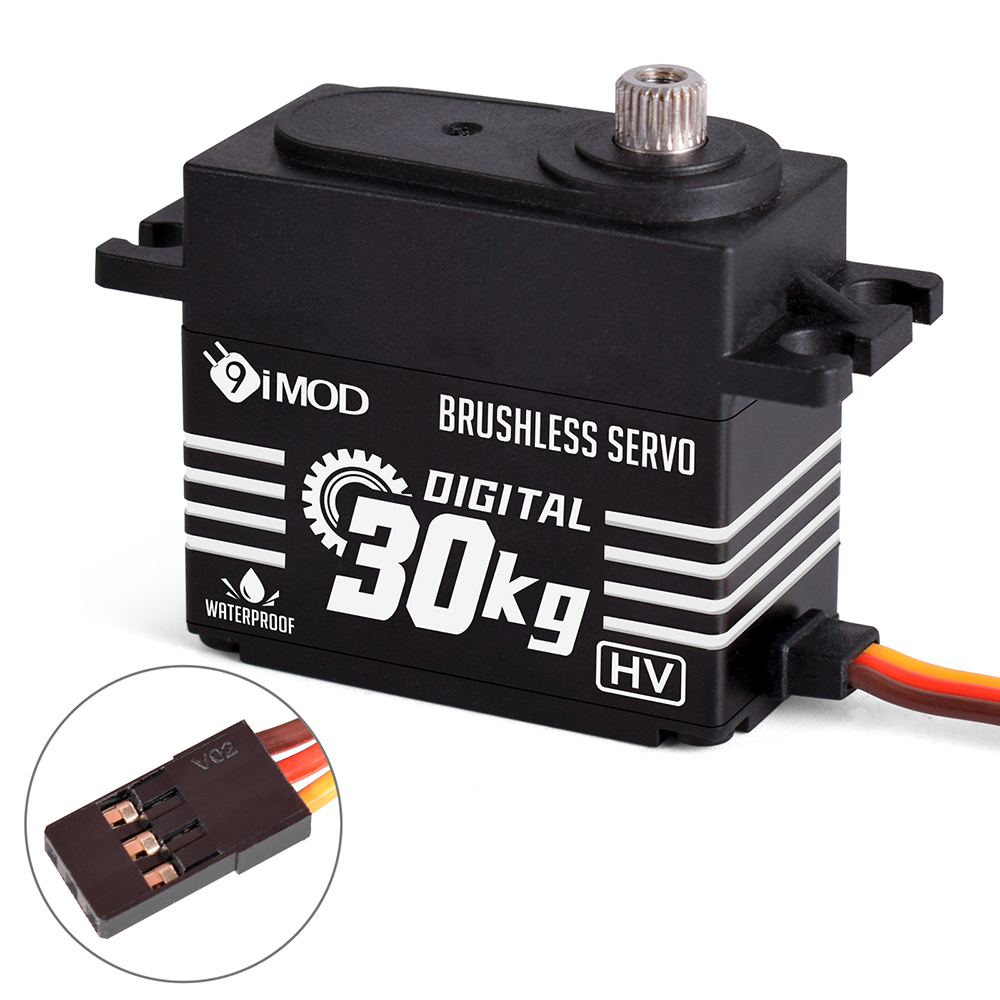

| Connector Wire Length | 300MMJR Plug |
| Dead Band Width | 2 usec |
| Pulse Width Signal | 500-2500 ms: 180 degrees |
| Gun Remote Control | 1000-2000 ms: 90 degrees |
| Model | BLS-HV20KG |
| Item Weight | 98 g |
| Package Size (cm) | 13*9*0.3 |
| Shipped Weight | 106 g |
9imod Brushless Servo 20KG 30KG 40KG Aluminum Alloy Case Waterproof Digital Metal Gear HV Servo for RC Car Truck Crawler Boat Robot DIY
Features:
1. 6.0V ~8.4V High voltage.High performance digital High Voltage Brushless
2. Waterproof performance: waterproof,Excellent linearity, precision control

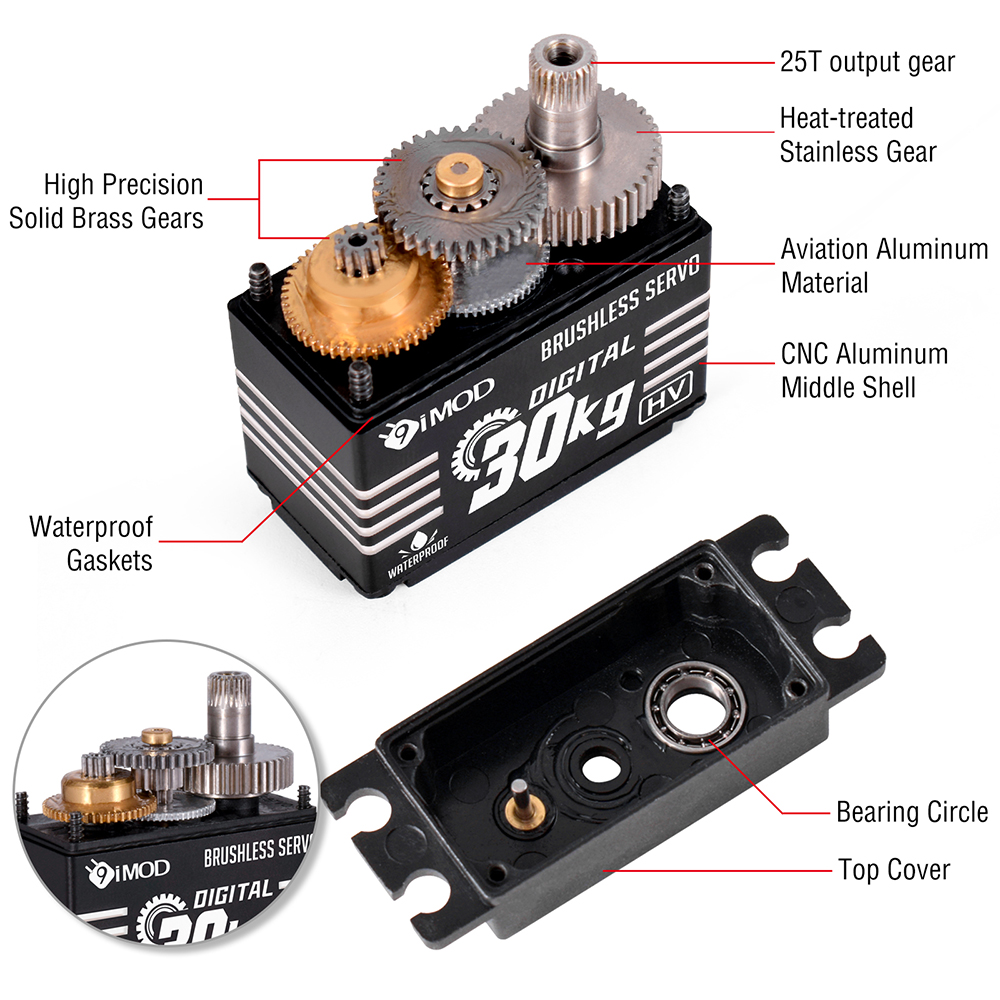

3. Equipped with Metal Gears, Aluminum alloy case, Less Noise, light weight.Dual ball bearings

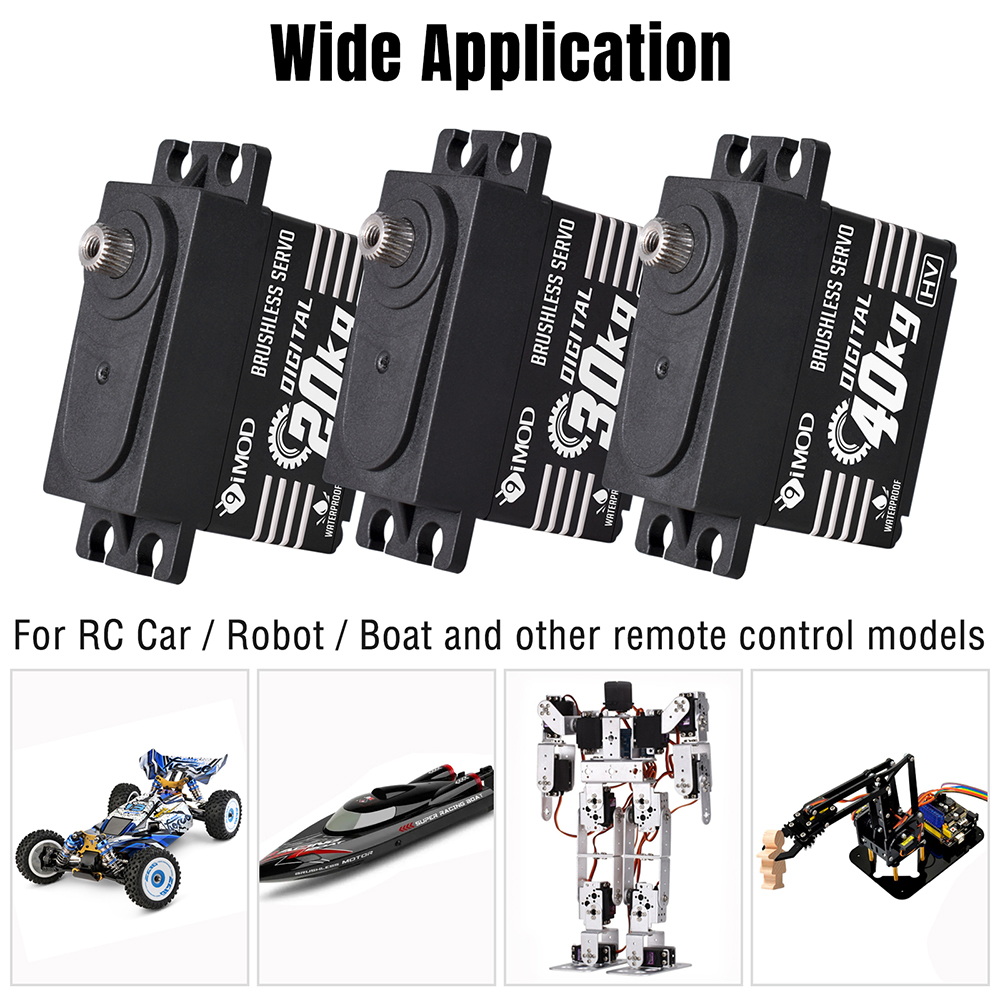

4. Widely Use Digital Servo:Compatible with 1/8, 1/10, 1/12 Scale Clawer Truck, Traxxas, scx10, RC Car/Robot /Boat and other remote control models
Description:
The 9imod BLS-HV Digital Waterproof servo,adopt Brushless motor,Compared with ordinary servo, the speed is much faster and the reaction is also fast,6.0V ~8.4V Operation Voltage Range,
It's a good accessory for your RC RC Car Truck Crawler Boat Robot and DIY model toy!
Specifications:
Brand:9imod
Color:Black
Gear Material:Metal Gear
Case Material:Aluminum alloy AL6061+Nylon additive
Control System:PWM Control (1500usec in the central point)
Operation Voltage Range:6.0v ~8.4V
Operation Temperature Range:-20c°~ +60C°
Direction:Re-clock wise/ Pulse Travel 500-2500 usec
Diver type:Mos Drive
Motor Type:Brushless motor
Potentiometer Type:Direct Drive
Amplifier Type:Digital Control
Dimensions:40x20x37.3mm
Weight:69.2g (without servo horn)
Ball Bearing:2BB
Connector Wire Length: 300MMJR Plug
Dead band width:2 usec
Pulse width signal: 500-2500 ms: 180 degrees
Remote control aerial template control: 900-2100 milliseconds: 120 degrees
Gun remote control: 1000-2000 ms: 90 degrees
Model:BLS-HV20KG
Standing Torque:
0.08sec/60° 15kg-cm@6.0V
0.06sec/60° 20kg-cm@7.4V
0.055sec/60° 25kg-cm@8.4V
Model:BLS-HV30KG
Standing Torque:
0.09sec/60° 25kg-cm@6.0V
0.075sec/60°30kg-cm@7.4V
0.07sec/60° 33kg-cm@8.4V
Model:BLS-HV40KG
Standing Torque:
0.1sec/60° 35kg-cm@6.0V
0.085sec/60°40kg-cm@7.4V
0.08sec/60° 43kg-cm@8.4V

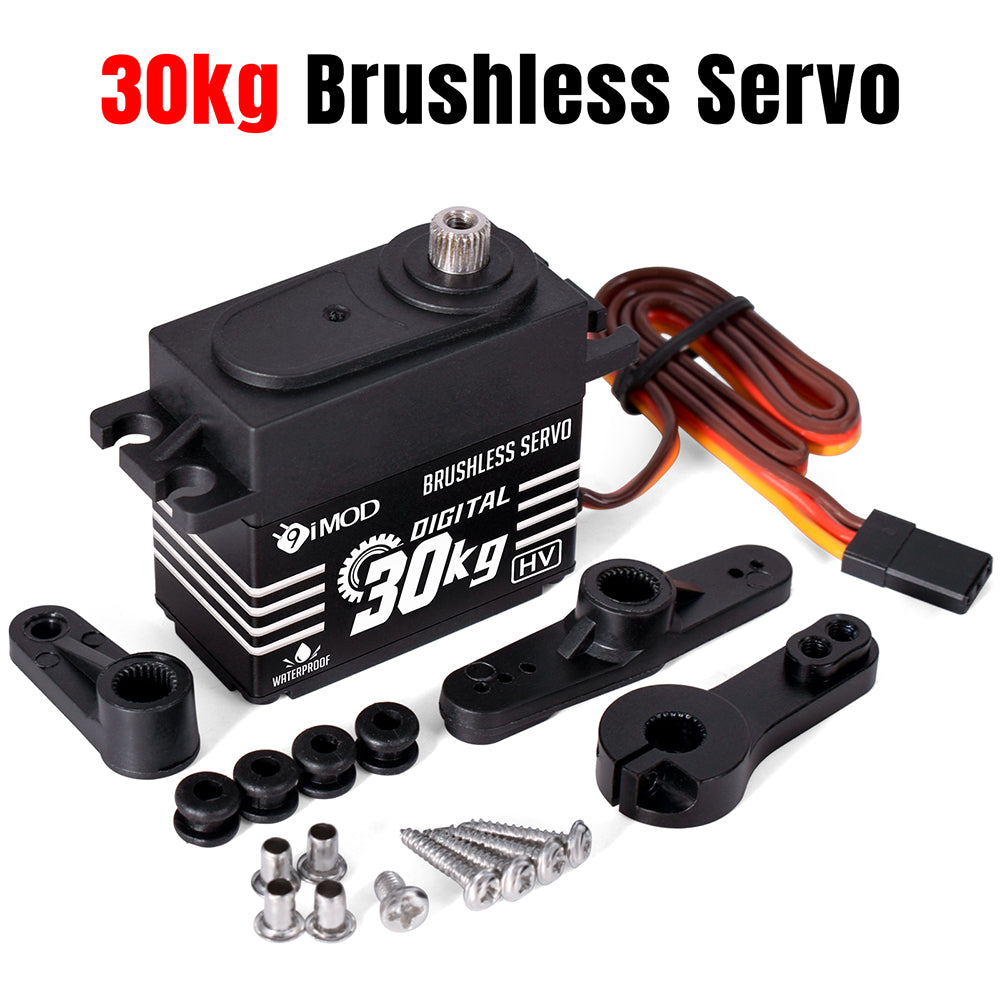

Package included:
1 x Servo
1 x Servo Accessories
Note: Please select the servo according to your own remote control signal and the desired servo angle.
