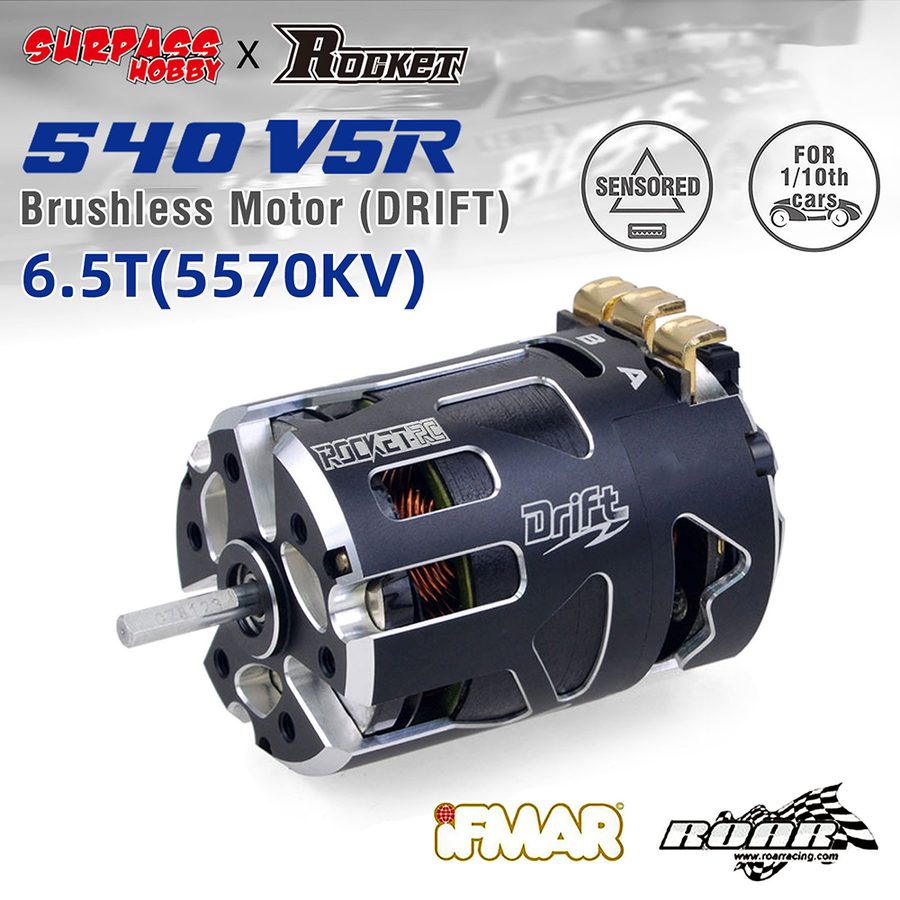

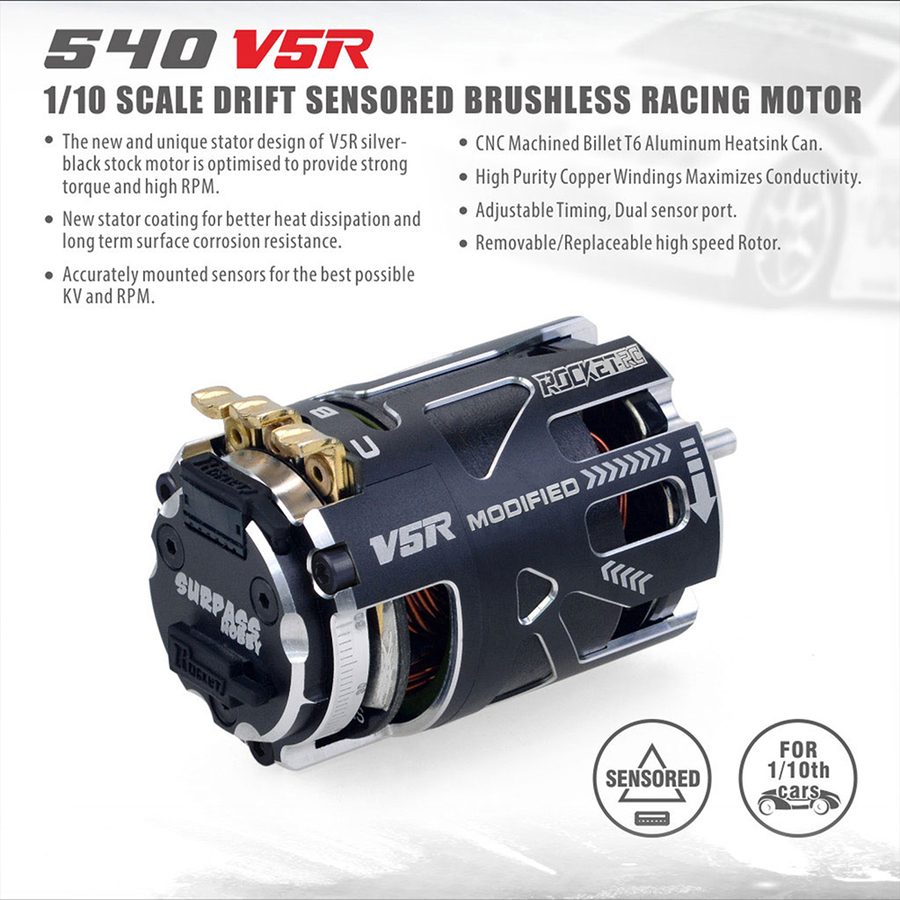

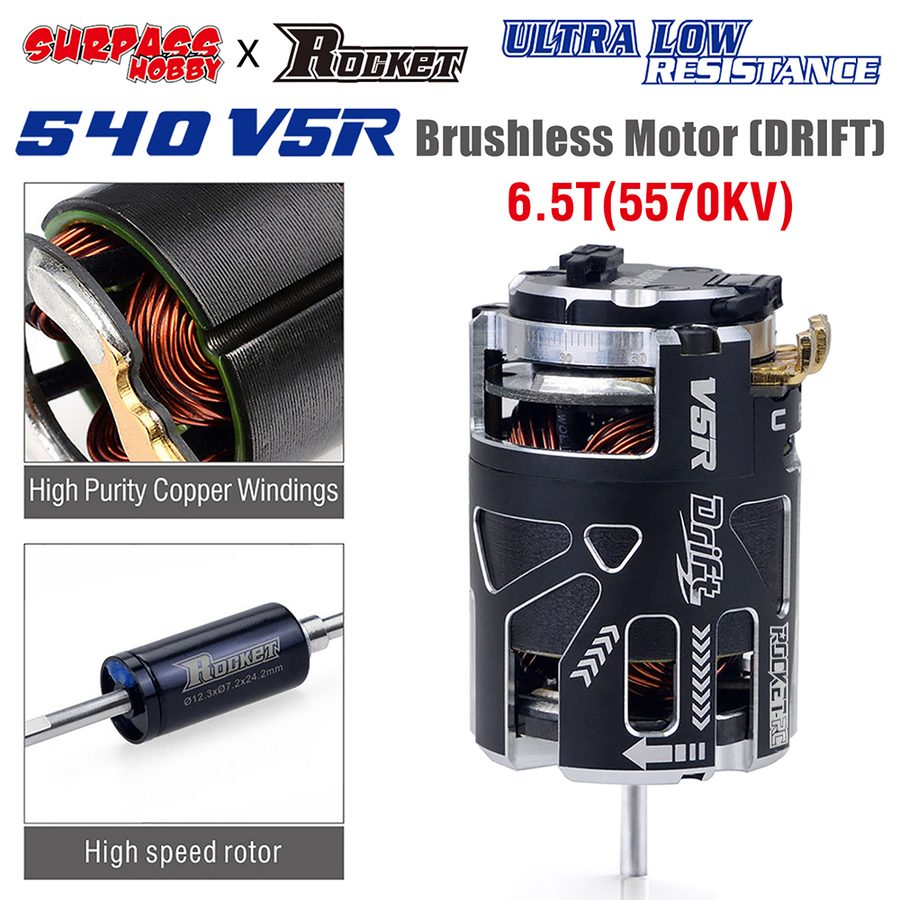

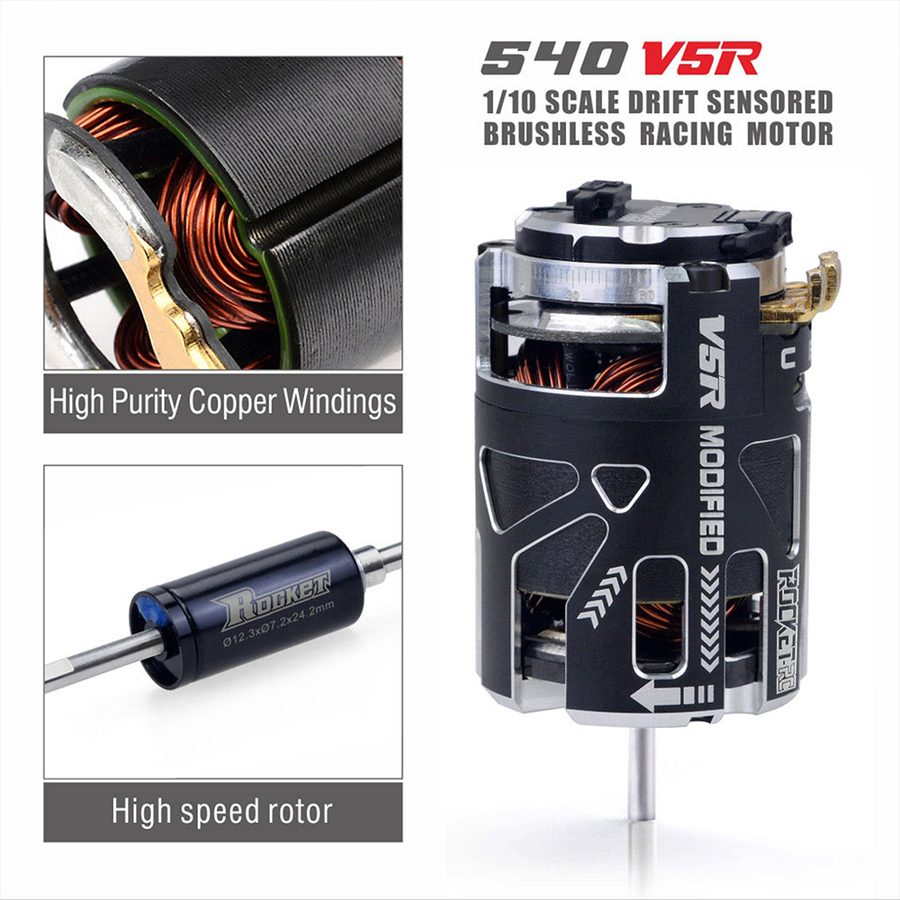

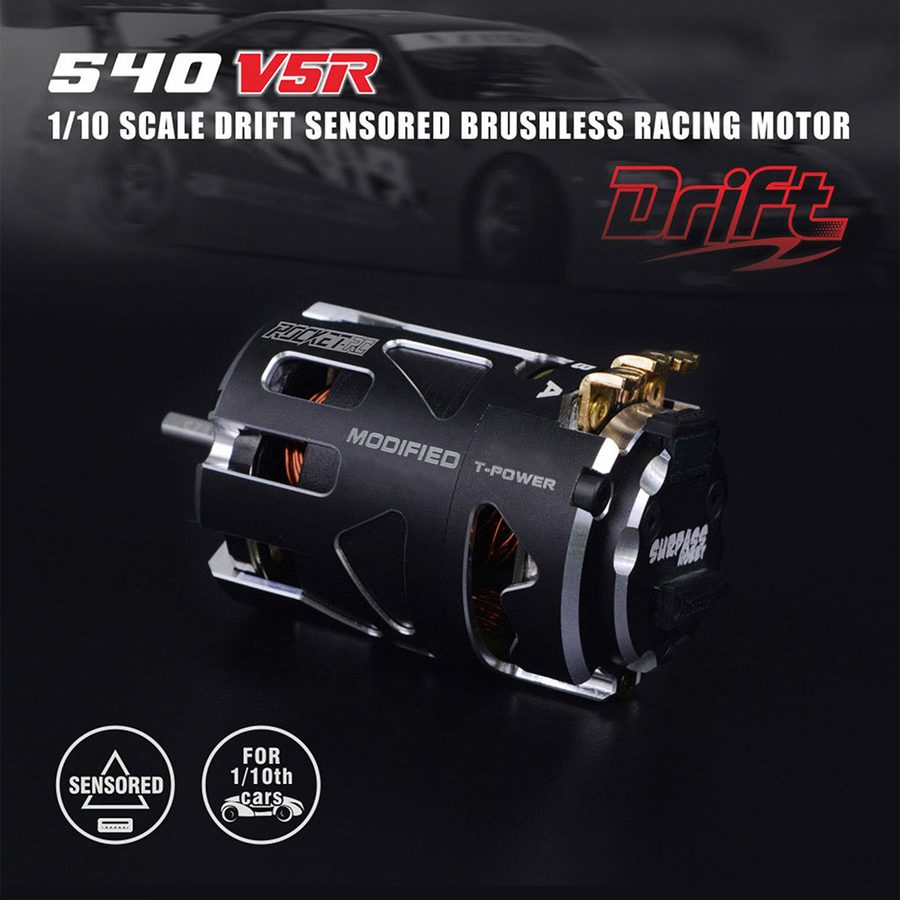

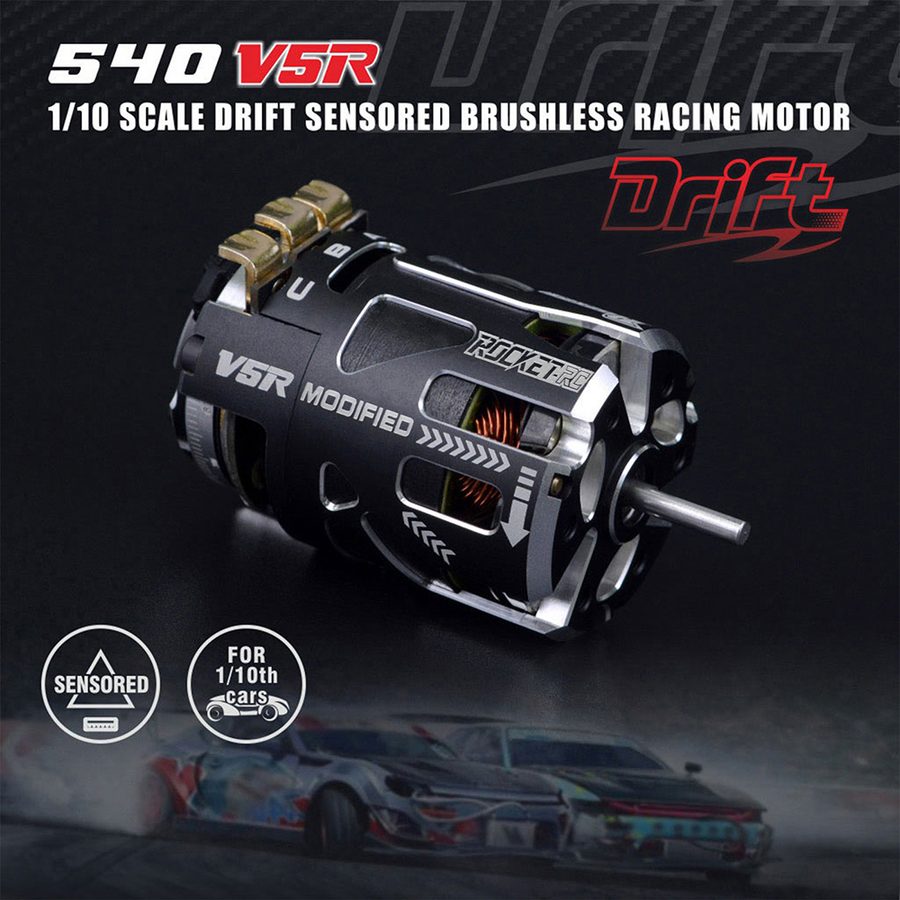

Rocket 540-V5R Sensored Brushless Motor 3.175mm Shaft Diameter 6.5T
- £91.99
- £91.99
- Unit price
- per
Please hurry! Only 3 left in stock
10 customers are viewing this product
Couldn't load pickup availability
2-Year Warranty
Quality parts, fully tested before dispatch.
30-Day Returns
Hassle-free returns if you change your mind.
Dispatched in 24h
In stock now — fast, tracked worldwide shipping.
Technical Specifications
| Brand | ROCKET-RC |
| Material | Alloy |
| Color | Black |
| Rotor Poles | 2 |
| Motor Length | 52mm |
| Motor Diameters | 36mm |
| Shaft | diameter 3.175mm |
| Weight | About 166g |
| Turns | 6.5T (Drift) |
| Kv(Rpm/Volt) | 5570KV |
| Watts | 390 |
| Lipo(S) | 1-2S |
| Max Amps(A) | 104 |
| Io(7.4V) | 3.2A |
| Item Weight | 225 g |
| Package Size (cm) | 18*15*5 |
| Shipped Weight | 233 g |
The new and unique stator design of V5R silver-black stock motor is optimised to provide strong torque and high RPM.
Updating the cover and installing the vacancy avoidance space is suitable for all modified stock car body in the market.
New stator coating for better heat dissipation and long term surface corrosion resistance.
Accurately mounted sensors for the best possible KV and RPM.
CNC Machined Billet T6 Aluminum Heatsink Can
Removable/Replaceable Rotor
Adjustable Timing
Compatible with any Sensored/ Sensorless ESC
Dual sensor port
IFMAR, ROAR Compliance
Desriptions:
SURPASSHOBBY ROCKET 540 V5R brushless pole-speed motor meets the requirements of ROAR (USA) competition and IFMAR rules. It provides 3.5T 4.5T 5.5T 6.5T 7.5T 8.5T 9.5T 10.5T 13.5T 17.5T 21.5T for all kinds of T numbers. It is suitable for F1, 1/12, 1/10 off-road, drift and electric car races. CNC6061 aluminum alloy shell, induction line interface, aluminum tail cover; ultra-low internal resistance, improve motor performance and reduce motor operating temperature, optimize heat dissipation efficiency, disassembly and adjustable timing.
Package included:
1 x Rocket 540 V5R Sensored Brushless Motor
1 x Sensored line
1 x English Manual
