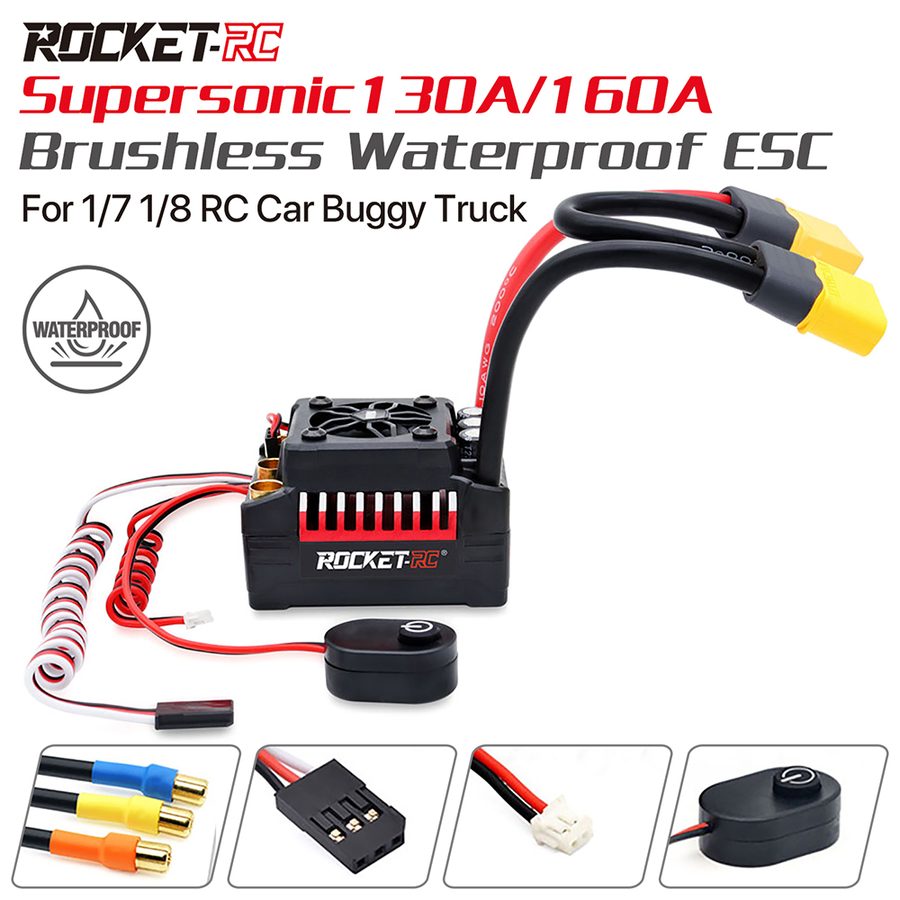

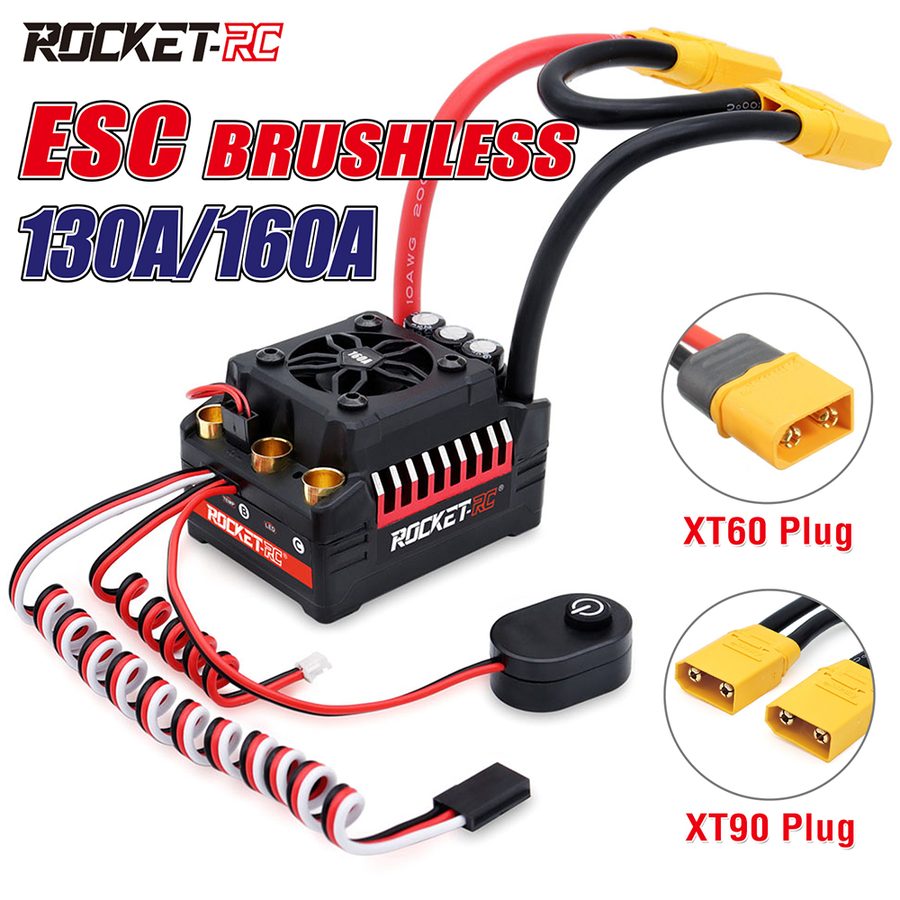

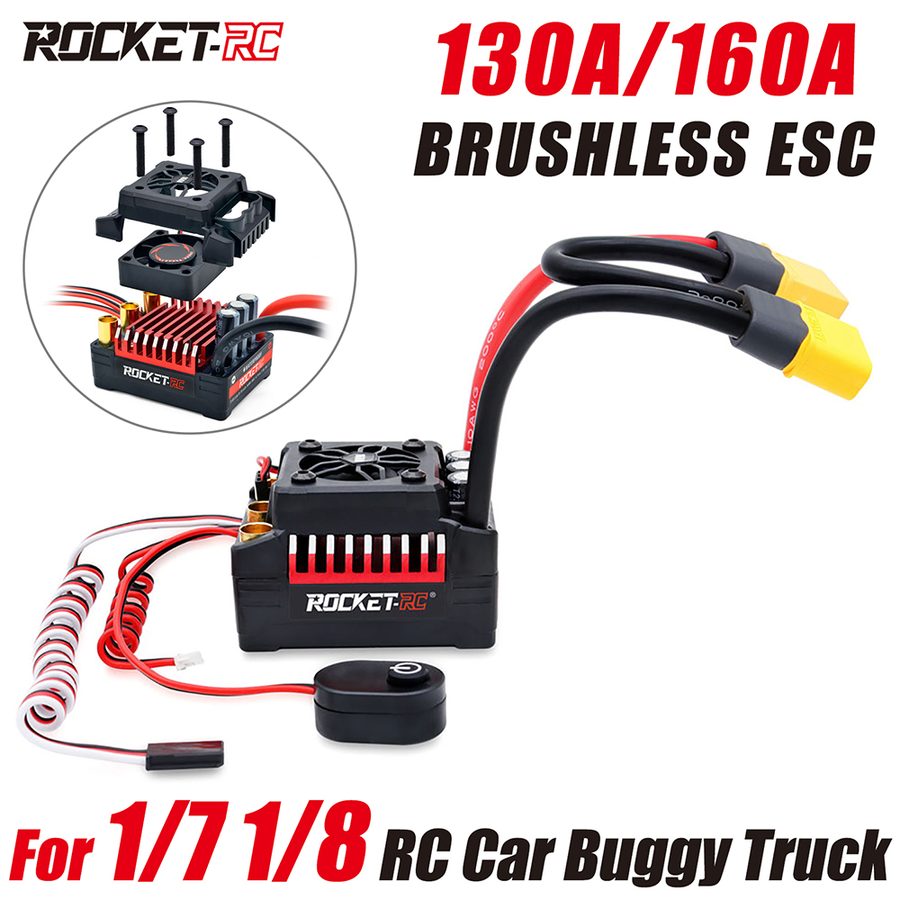

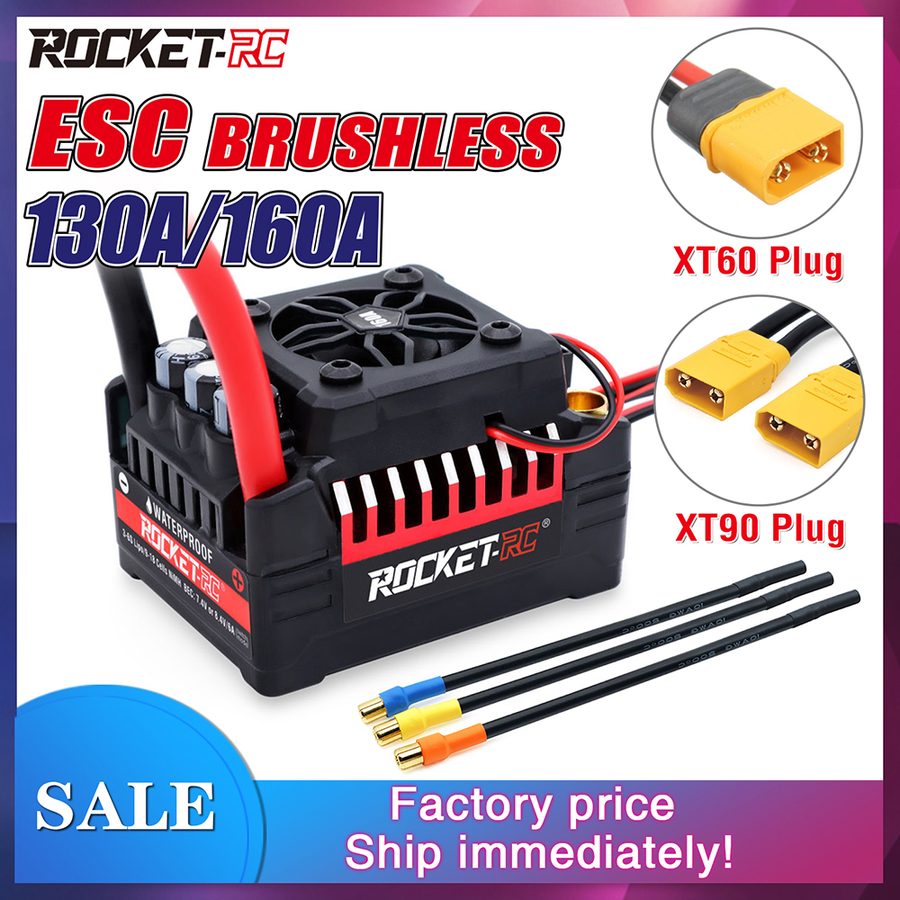

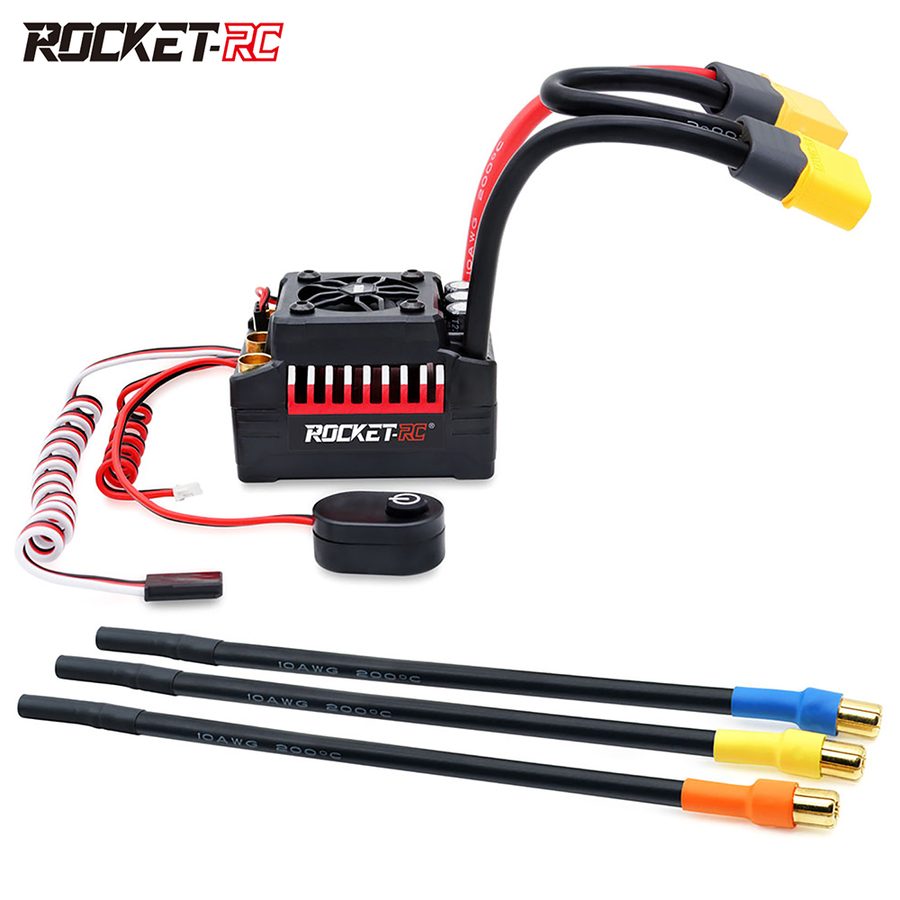

ROCKET-RC-V2 Series Waterproof Brushless ESC 130A/160A Sensorless

1.SURPASSHOBBY Rocket RC 130A ESC Brushless 160A ESC 4S Electronic Speed Controller Waterproof for 1/7 1/8 RC Car Buggy Truck

Feature:

1. RC Car ESC: Electronic Speed Controller application for 1/8 &1/7 RC car buggy truck.Water-proof and dust-proof for all-weather races (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)

2. RC ESC: Specially designed for RC car with excellent start-up, acceleration and linearity features.The strong resistant current capability, excellent heat dissipation.Easily programmed and compatible with pocket-sized program card

3. 130A Brushless ESC: Built-in switch-mode BEC 6.1V or 7 4V/5A for usage with high torque and high voltage servos.Compatible with Supersonic V2 sensorless brushless motor 4276 4268 4274 4282 4292

4. Multiple Protection ESC: Low voltage cut-off protection for lithium or nickel battery /ESC Over-heat protection / Motor Over-heat protection/ Throttle signal loss protection/ Motor blocked protection

5.4s ESC: For 4S Lipo or 12 cells NIMH :

1 . On-road : 40xx-size or smaller motor with the KV < 3000

2 . Off-road / Buggy / Monster : 40xx-size or smaller motor with the KV < 2500

For 6S Lipo or 18 cells NIMH :

1 . On-road : 40xx-size or smaller motor with the KV < 2500

2 . Off-road / Buggy / Monster : 40xx-size or smaller motor with the KV < 2000Battery 3~6 cells Lipo / 9~18 cells NiMH

Description:

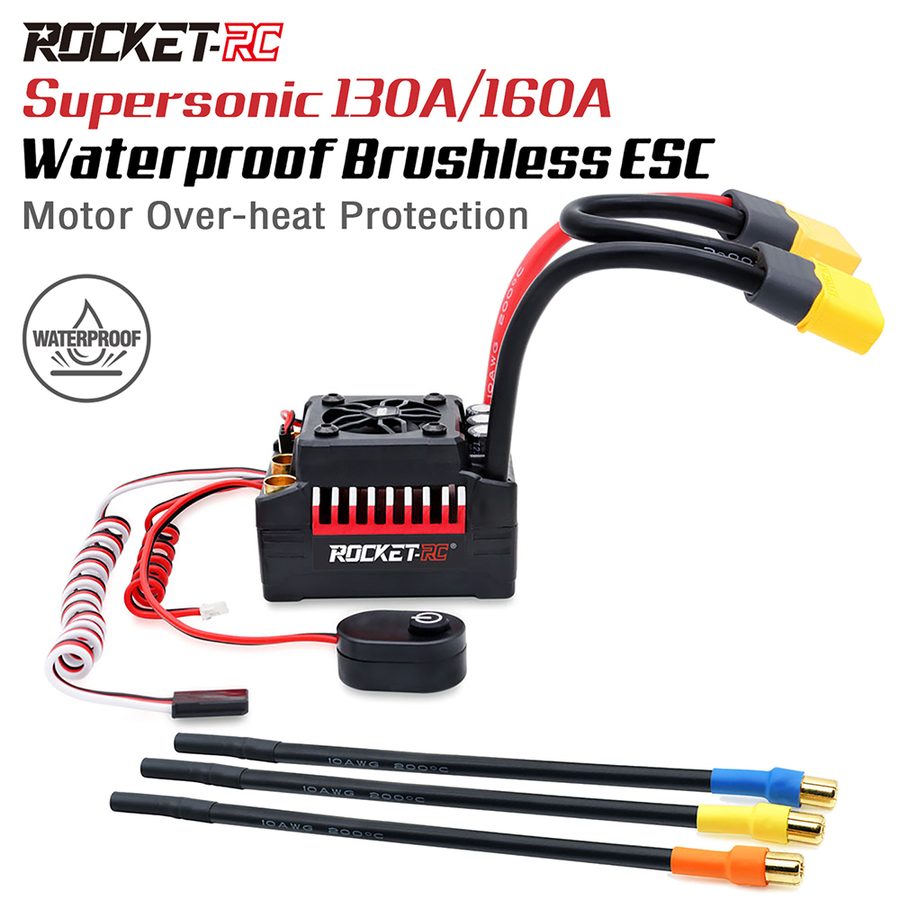

Rocket RC Supersonic 130A 160A Brushless ESC application for 1/8 car &1/7 car.Water-proof and dust-proof for all-weather races.Compatible with Supersonic V2 sensorless brushless motor

Specifications:

Brand Name:Rocket RC

Model: Supersonic 130A

Cont.Current / Burst Current: 130A/860A

Motor Type: Sensorless Brushless Motor

For 4S Lipo or 12 cells NIMH :

1 . on-road : 40xx-size or smaller motor with the KV < 3000

2 . Off-road / Buggy / Monster : 40xx-size or smaller motor with the KV < 2500

For 6S Lipo or 18 cells NIMH :

1 . On-road : 40xx-size or smaller motor with the KV < 2500

2 . Off-road / Buggy / Monster : 40xx-size or smaller motor with the KV < 2000

Suitable Car: 1/8 car

Resistance:0.00035ohm

Battery: 3~6 cells Lipo / 9~18 cells NiMH

BEC Output:6.1V/5A or 7.4V /5A (switch mode)

Dimensions/Weight: 57.5x45x37mm/132g

Model:Supersonic 160A

Cont.Current / Burst Current:160A/1080A

Motor Type: Sensorless Brushless Motor

For 4S Lipo or 12 cells NIMH:

1 . On-road: 42xx-size or smaller motor with the KV < 3000

2 . Off-road / Buggy / Monster: 42xx-size or smaller motor with the KV < 2500

For 6S Lipo or 18 cells NIMH:

1 . On-road: 42xx-size or smaller motor with the KV < 2500

2 . Off-road / Buggy / Monster: 42xx-size or smaller motor with the KV < 2000

Suitable Car: 1/8 car &1/7 car

Resistance: 0.00028ohm

Battery: 3~6 cells Lipo / 9~18 cells NiMH

BEC Output: 6.1V/5A or 7.4V /5A (switch mode)

Dimensions/Weight: 57.5x45x37mm/140g

Package including :

1x Waterproof Brushless ESC

1x Manual

2.Surpass Hobby Supersonic LED Program Card For 45A/60A/80A/120A/150A ESC Brushless Electronic Speed Controller For RC Car

Features:

1.ESC Programming Card: Specially designed for Rocket V2 Supersonic 45/60/80/120A/150A ESC with excellent start-up, acceleration and linearity features

2.Program Card for RC: Compatible with Supersonic Rocket V2 sensorless brushless motor

3.Performance: The strong resistant current capability, excellent heat dissipation. It can program brake force, reverse force, low voltage protection, start mode and neutral range

4.LED Programming Card: Easily programmed and compatible with pocket-sized program card.The setting card interface is very intuitive and friendly. It can easily set various parameters of electric regulation. The setting card is small and portable, which is very suitable for Outfield use

5.Low Voltage Cut-Off: The function is mainly to prevent the lithium

battery pack from over discharging. When using lithium battery pack,

please set the suitable value for low-voltage protection

Description:

Surpass Hobby Supersonic LED Program Card specially designed for Rocket V2 Supersonic 45/60/80/120A/150A ESC with excellent start-up, acceleration and linearity features.Compatible with Supersonic Rocket V2 Motor sensorless brushless motor.Simple operation, suitable for a variety of ESC, is a good choice for RC fans.

Specifications:

Brand name:SURPASSHOBBY

Use: Vehicles & Remote Control Toys

For Vehicle Type: Cars

Remote Control Peripherals/Devices: LED Program Card

Only Apply to: Supersonic Rocket V2 Motor

Material: plastic

1.Low Voltage Cut-Off: The function is mainly to prevent the lithium

battery pack from over discharging. When using lithium battery pack,

please set the suitable value for low-voltage protection as your like.

WARNING: Never use the default value “Non-protection” for lithium

battery! 3.1V Slow、2.9V Slow、2.7V Slow、Disable、3.4V Slow、3.1V

Stop、2.9V Stop、2.7V Stop、3.4V Stop(default value 3.1V Slow).

2.3 start modes (Also called “Punch”) Level3、Level1、Level6、Level2、 Level4、Level5、(default value Level3)

3.Maximum brake force: 50%、25%、75%、100%、Disable(default

value 50%)

4.Maximum reverse force: 25%、50%、75%、100%(default value 25%)

5.Neutral range: 9%(narrow),6%(Normal),12%(Wide) (default value 9%)

6.Motor Overheat Protection：120℃Stop 、135℃ Stop、150℃

Stop、120℃ Slow、135℃ Slow、150℃ Slow、Disable(default value

120℃ Stop)

7.ESC Overheat Protection：105℃ Stop、95℃ Stop、105℃ Stop、 95℃ Stop、Disable(default 105℃ Stop)

8.Running Mode：Fwd/Rev/Br、Fwd /Br、Fwd/Rev(default value

Fwd/Rev/Br)(Fwd=Forward、Brk=Brake、Rev=Reverse)

9.Drag Brake Force：0%、5%、10%、20%、30%(default value 0%).

Size:70*43*13mm

Weight:24g

Package included :

1x LED Program Card

1x Manual
