SG90 9G Micro Plastic Gear Analog Servo
- £11.99
£13.99- £11.99
- Unit price
- per
Please hurry! Only 1147 left in stock
10 customers are viewing this product
Couldn't load pickup availability
2-Year Warranty
Quality parts, fully tested before dispatch.
30-Day Returns
Hassle-free returns if you change your mind.
Dispatched in 24h
In stock now — fast, tracked worldwide shipping.
MG995 MG996r SG90 9g MG90s Metal/Plastic Gear 180 Degree Micro Servo Motor Set for RC Planes Racing Car model telecontrol
Specification :
Brand : 9IMOD
MG995 / MG996R / MG90S = Metal Gear
SG90 = Plastic Gear
Servo Size :
MG995 / MG996r= Standard Size Servo
SG90 / MG90s = Micro Servo
Servo Control Degree :
0-180 Deg (Can control with Arduino)

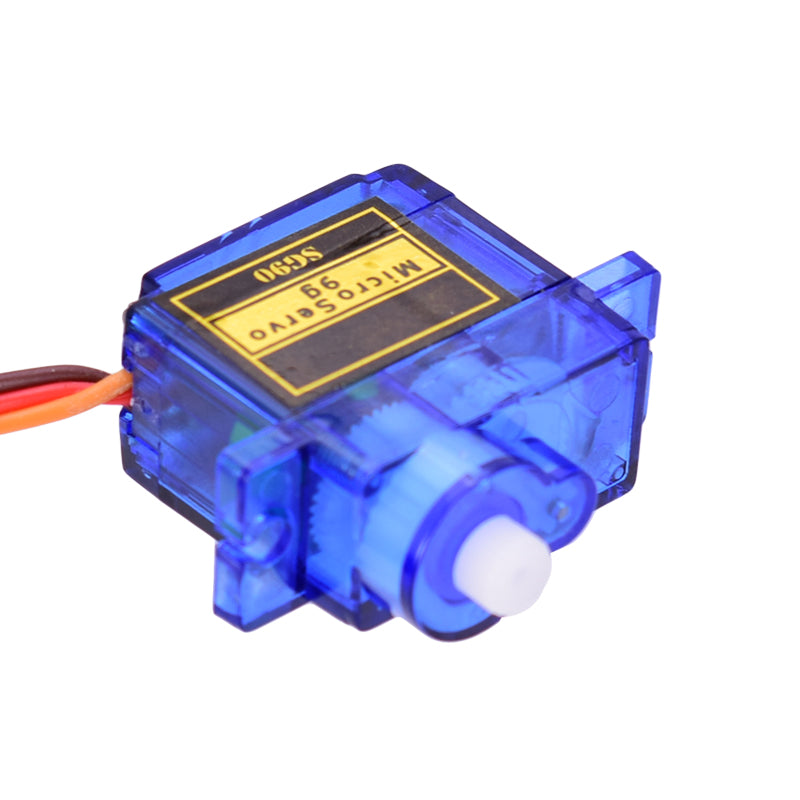

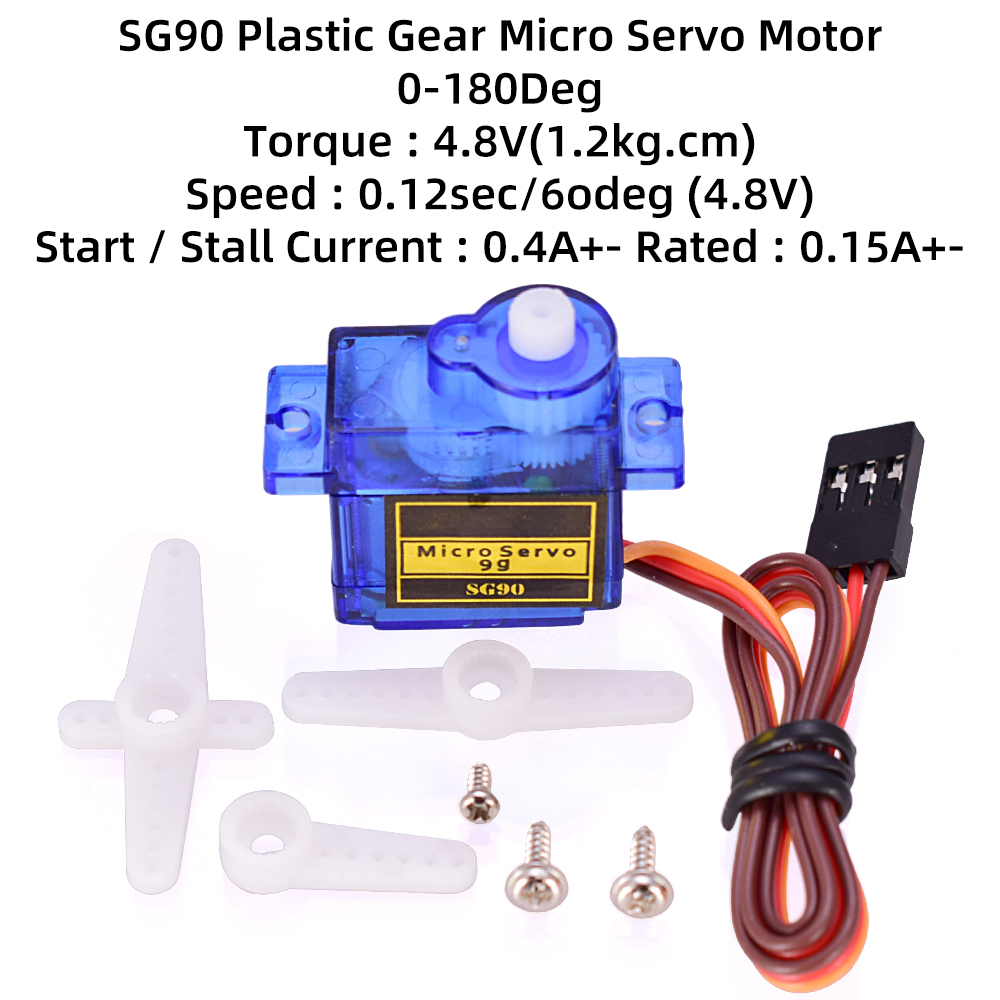

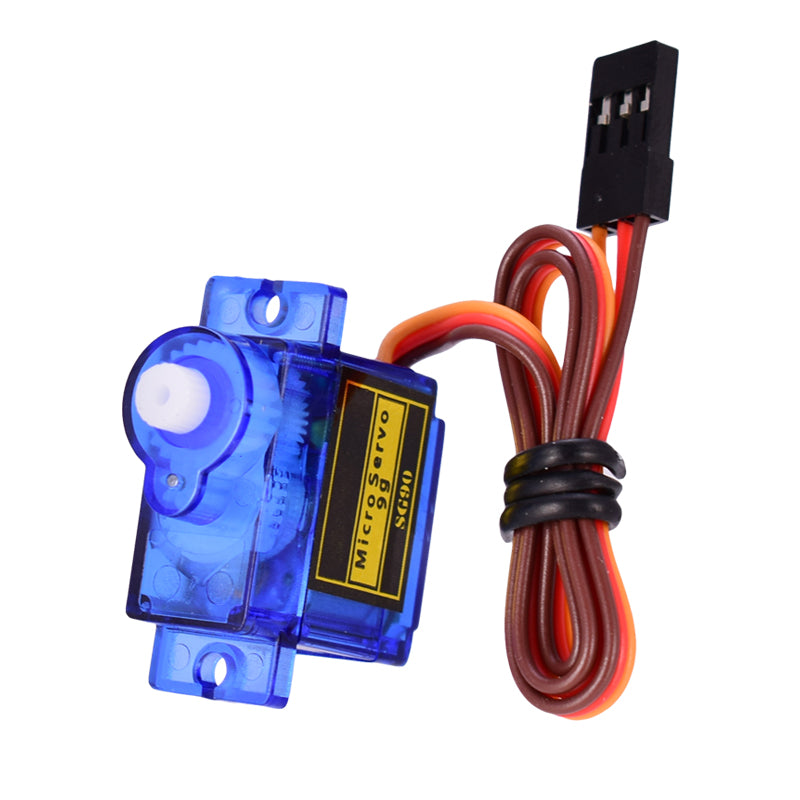

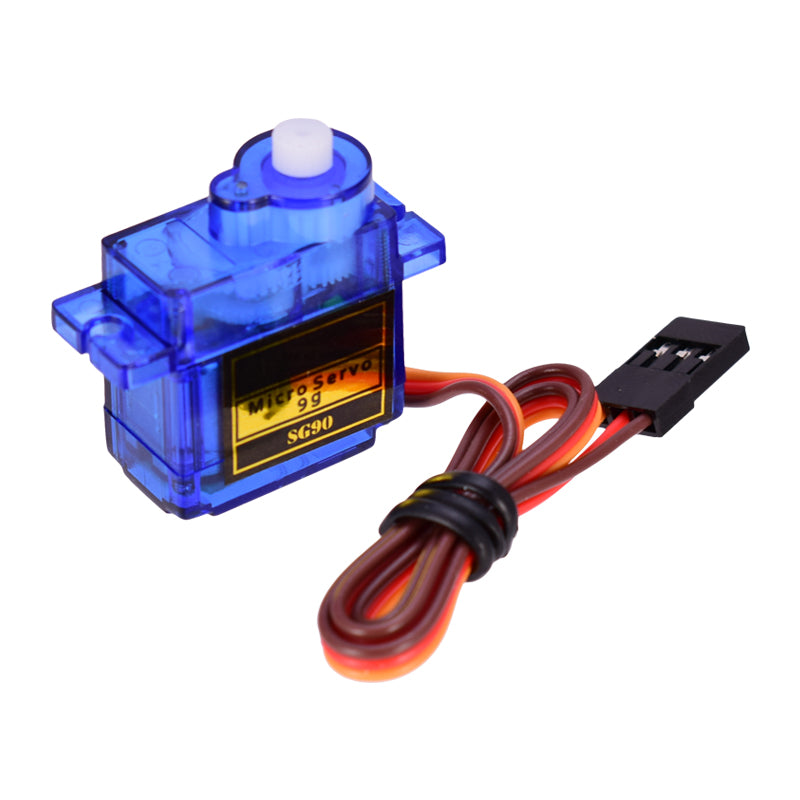

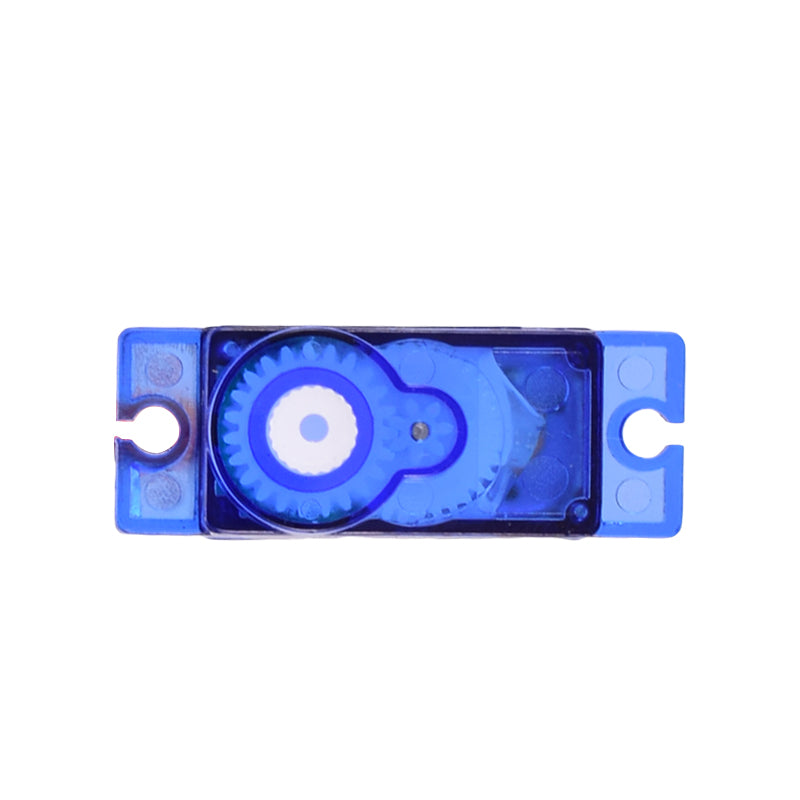

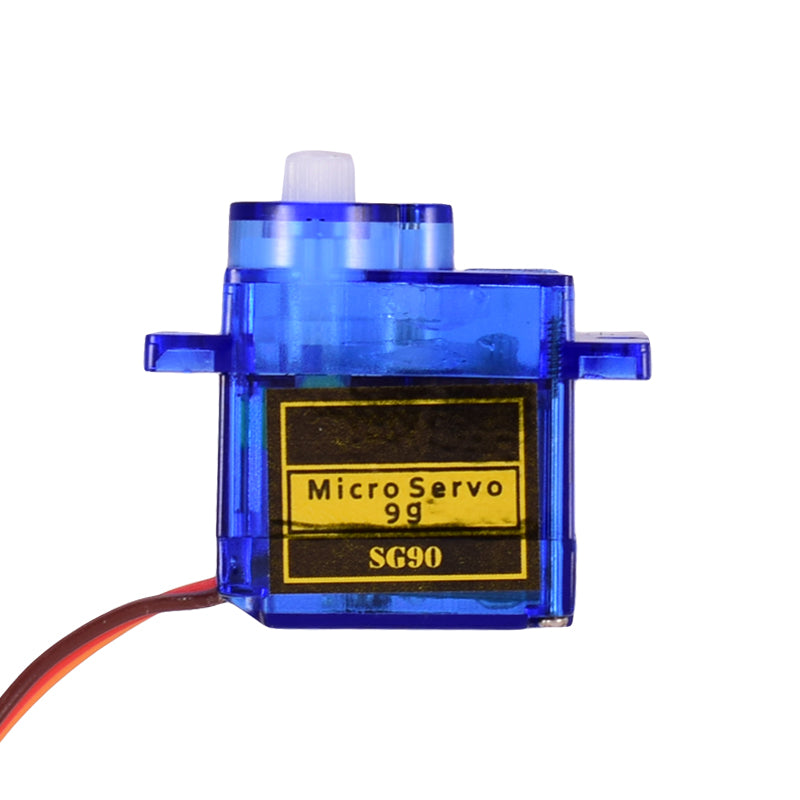

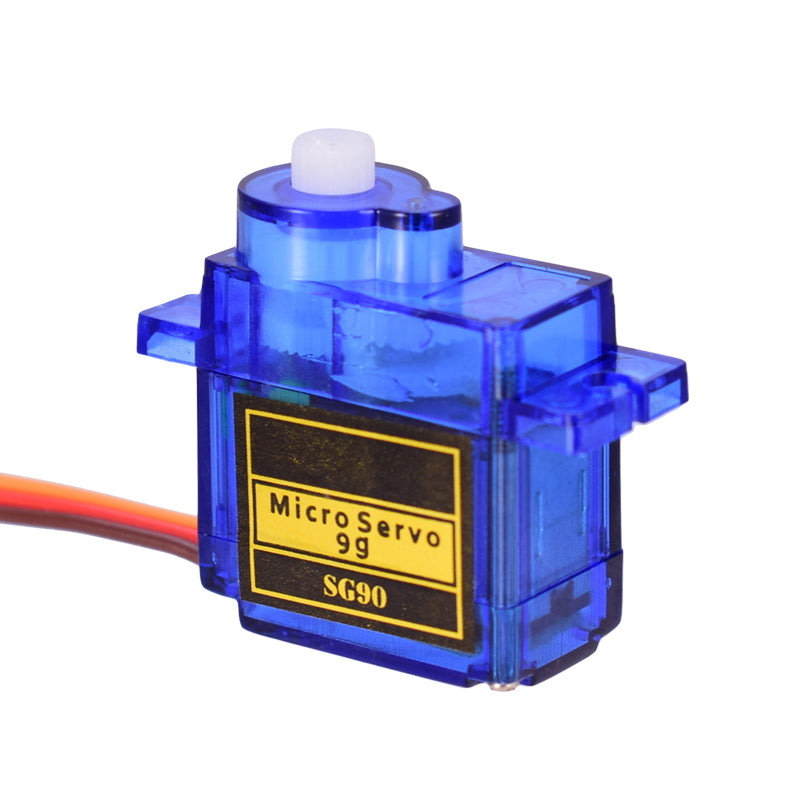

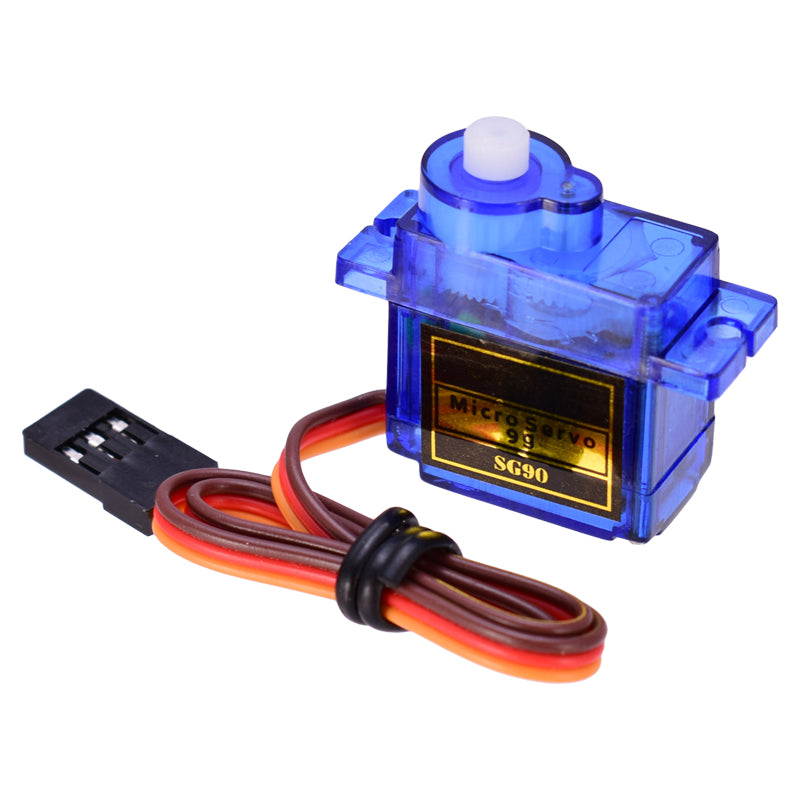

SG90

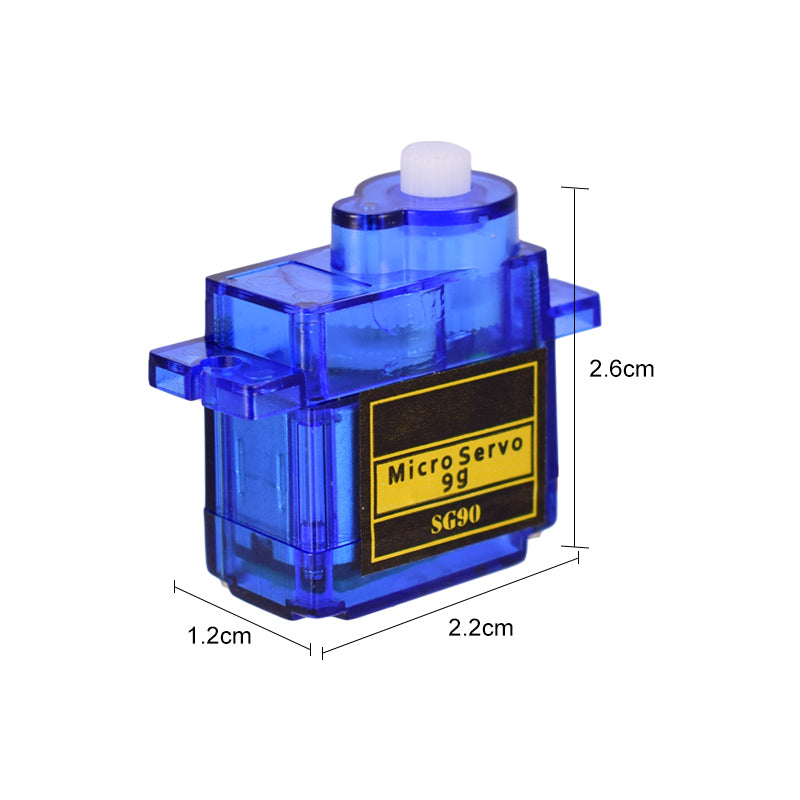

Size: 21.5mmX11.8mmX22.7mm
Weight: 9 grams
No-load speed: 0.12 seconds / 60 degrees (4.8V)
Stall torque of 1.2 - 1.4 kg / cm (4.8V)
Operating temperature: -30 to +60 degrees Celsius
Dead-set: 7 micro seconds
Operating voltage: 4.8V-6V

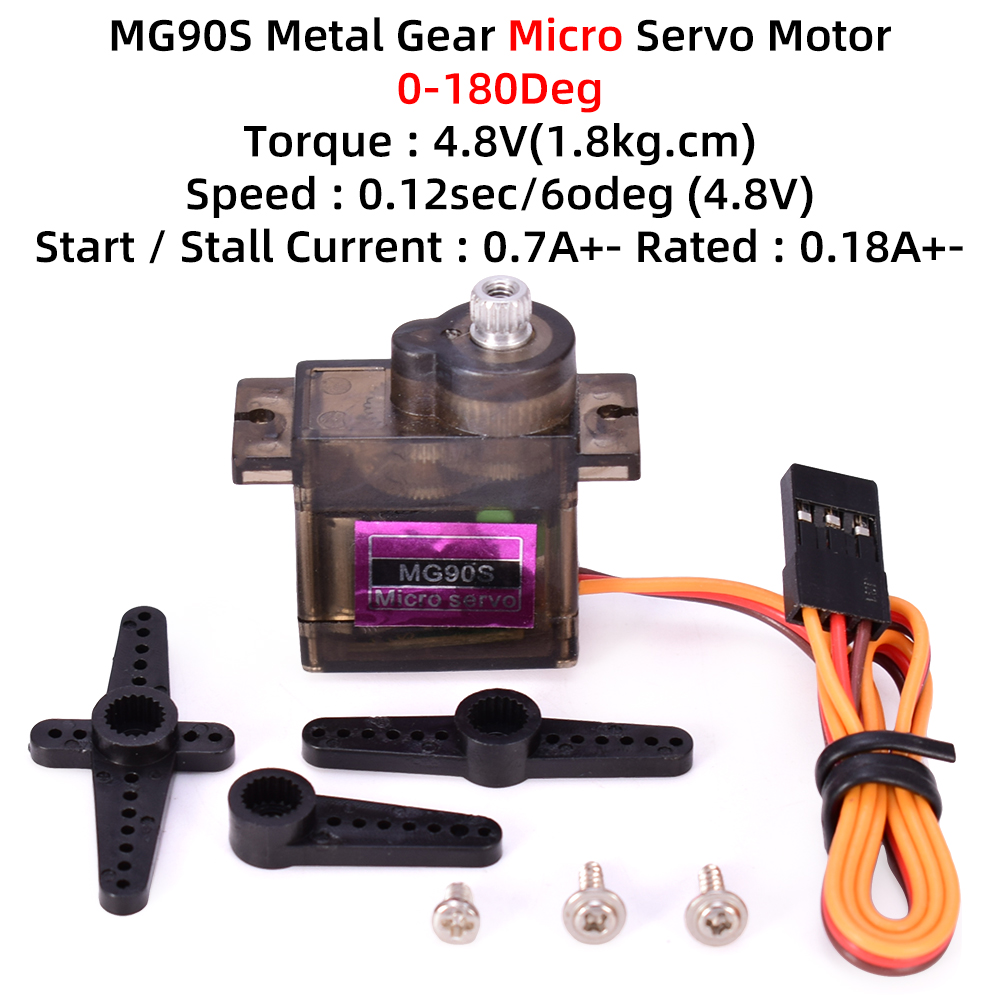

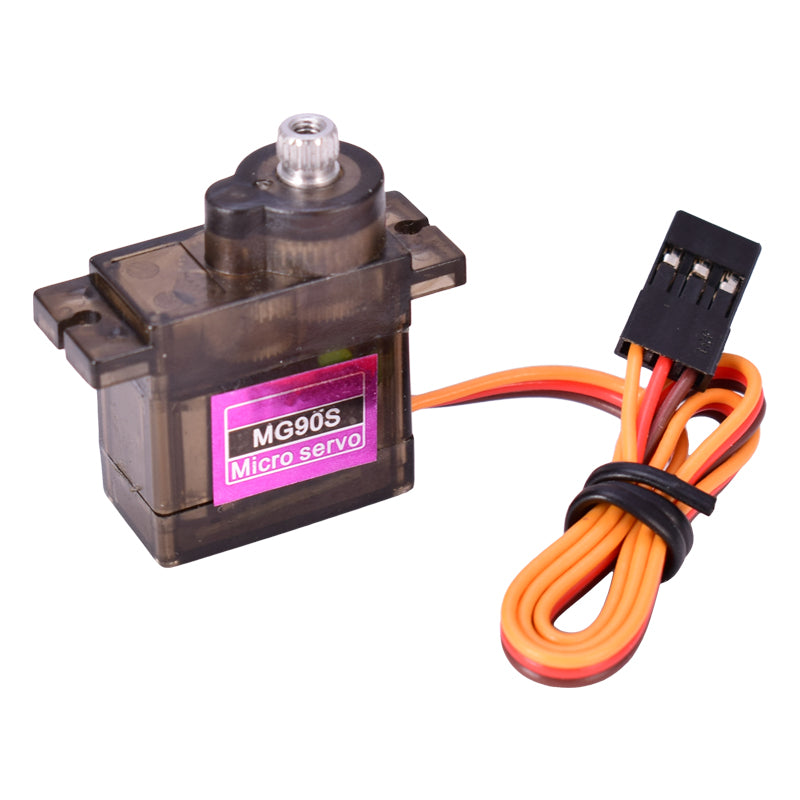

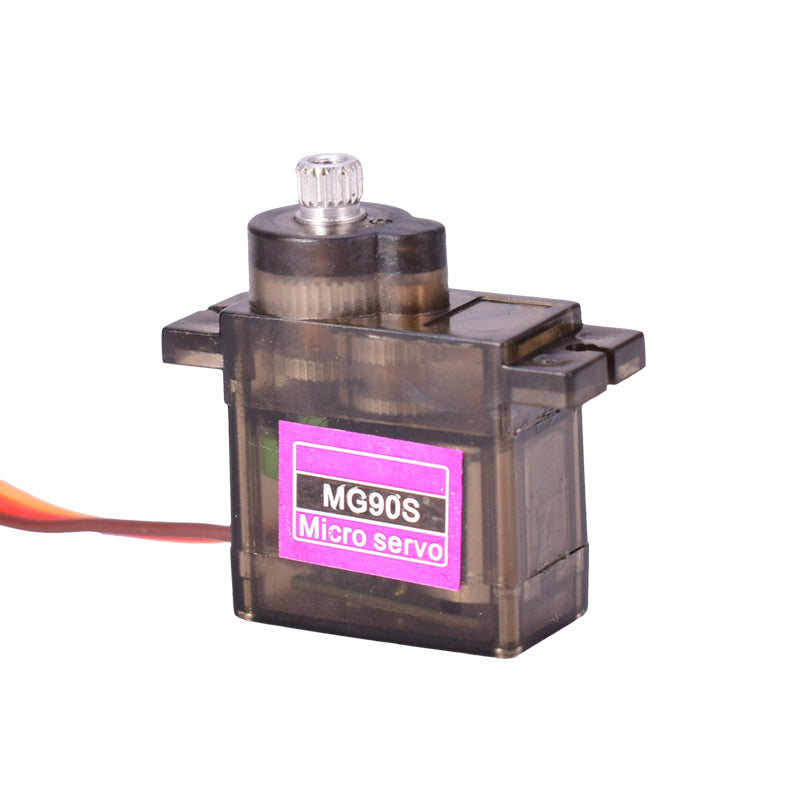

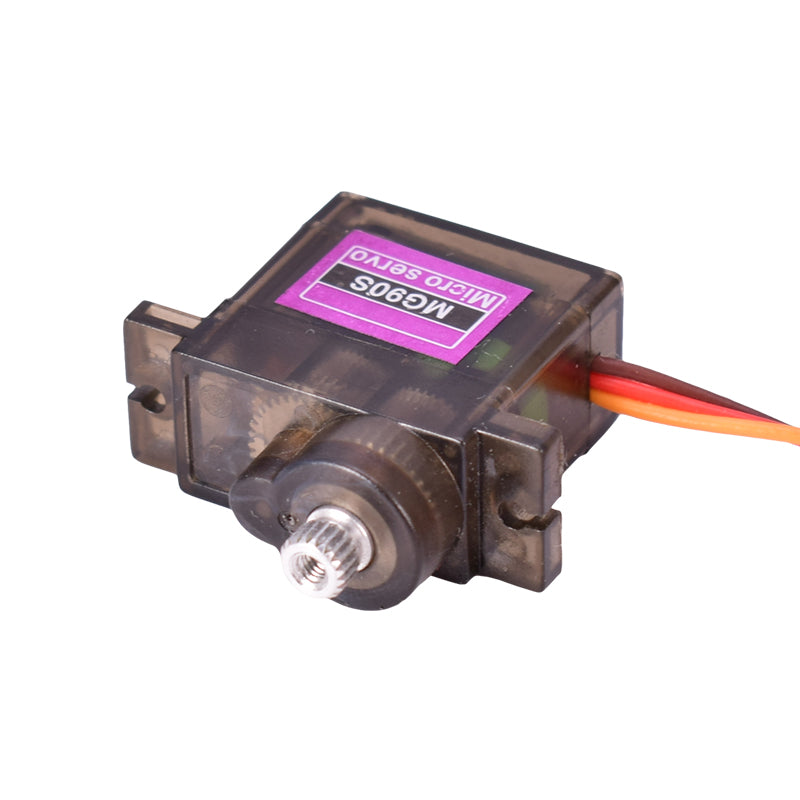

MG90S
For: Mini Car / Mini Ship / Helicopter & Airplane
Weight: 12G
Speed: 4.8V&0.10sec/60 degrees; 6.0V&0.09sec/60 degree
Torque: 4.8V&1.6KG-cm; 6.0V&1.8kg-cm
Voltage: 4.8V6.0V
Connector Wire Length 250mm

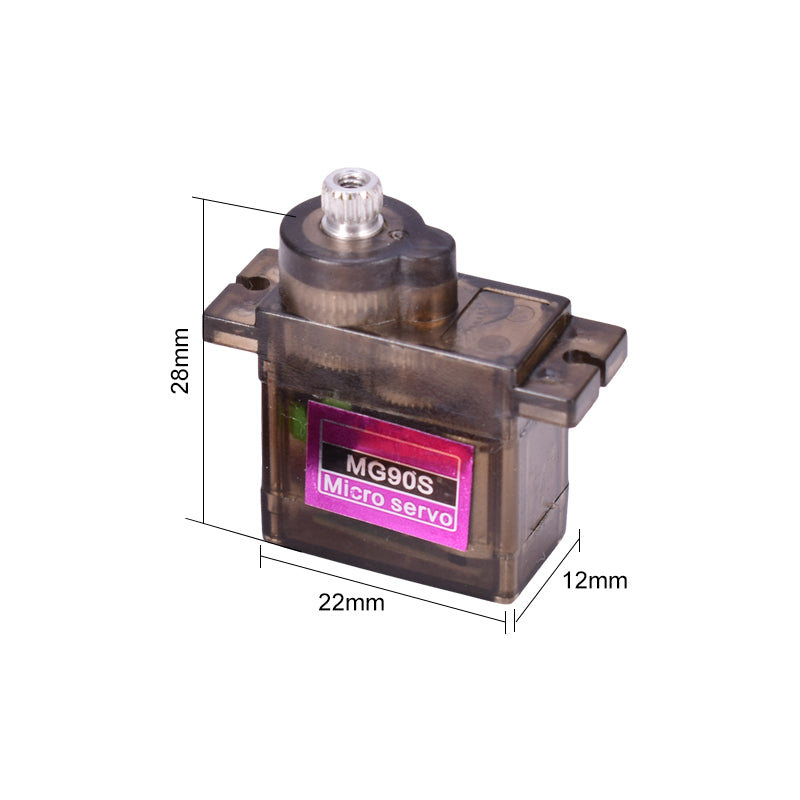

Dimension: 22.6mm x 12.1mm x 22.5mm
Dead Band Width: 5 usec
Interface Specifications: JR / FP General
Accessories: Multi-arm, fixing screws
Scope: Helicopters KT, fluttering, gliding, small robots, and other models
Recommend Model: Mini Car / Mini Ship / Helicopter & Airplane

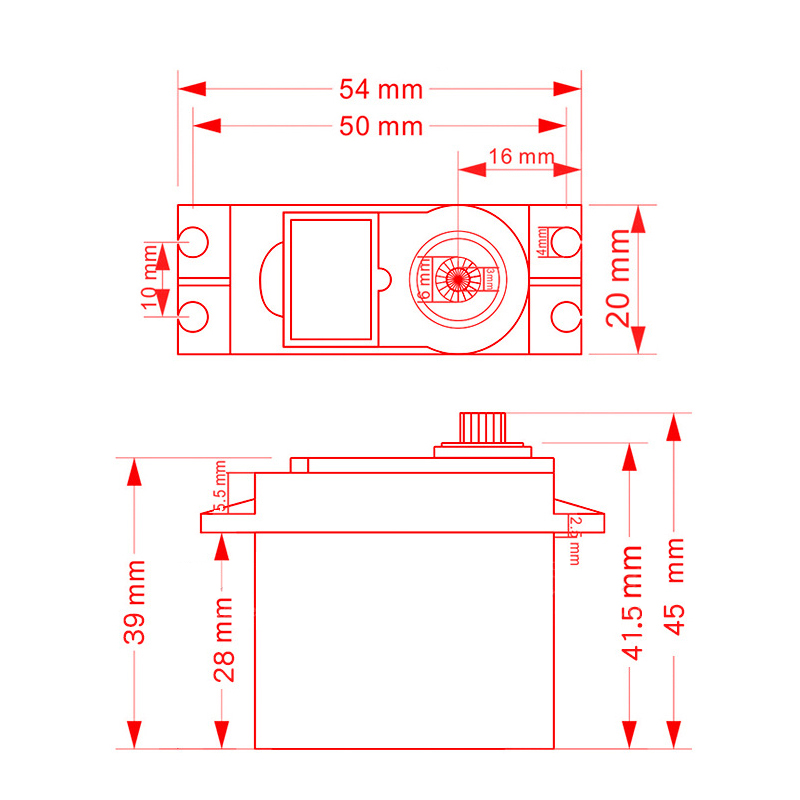

MG995
Features:
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...
Great for truck, Boat, Racing Car, Helicopter and Airplane.
Power Supply: Through External Adapter.
Connector Wire Length 300mm
Specification:
Dimension : 40mm x 19mm x 43mm
Color: Black
Operating Speed : 0.17sec / 60 degrees (4.8V no load)
Operating Speed : 0.13sec / 60 degrees (6.0V no load)
Stall Torque : 13 kg-cm (180.5 oz-in) at 4.8V
Stall Torque : 15 kg-cm (208.3 oz-in) at 6V
Operation Voltage : 4.8 - 7.2Volts
Connector Wire: Heavy Duty, 11.81\\\" (300mm)
MG996R
Color: Black
Dimension : 40 x 19 x 40mm
Stall torque:12kg/cm(6V)
Power Supply: Through External Adapter
Operation Voltage : 4.8 - 7.2 V
Temperature range: 0'C to 55‘C
Operating Speed: 0.17sec / 60 degrees (4.8V no load)
Operating Speed: 0.13sec / 60 degrees (6.0V no load)
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...
Stable and Shock Proof.
Connector Wire:Length 300mm
Great for truck, Boat, Racing Car, Helicopter and Airplane
Technical Specifications
| Brand | 9IMOD |
| Dimensions | 40mm x 19mm x 43mm |
| Color | Black |
| Operating Speed | 0.17sec / 60 degrees (4.8V no load) |
| Stall Torque | 13 kg-cm (180.5 oz-in) at 4.8V |
| Operation Voltage | 4.8 - 7.2Volts |
| Connector Wire | Heavy Duty, 11.81\\\" (300mm) |
| Power Supply | Through External Adapter |
| Temperature Range | 0'C to 55‘C |
| Item Weight | 16.02 g |
| Package Size (cm) | 18*15*4 |
| Shipped Weight | 24.02 g |
Note:
We guarantee the style is the same as shown in the pictures.
