Surpass Hobby Fixed-Wing V2 C50 Series Motor ESC Combo
- £115.99
£132.99- £115.99
- Unit price
- per
Please hurry! Only 1 left in stock
10 customers are viewing this product
Couldn't load pickup availability
2-Year Warranty
Quality parts, fully tested before dispatch.
30-Day Returns
Hassle-free returns if you change your mind.
Dispatched in 24h
In stock now — fast, tracked worldwide shipping.
Technical Specifications
| Brand | SURPASS HOBBY |
| Product Name | C5045-V2 C5055-V2 C5065-V2 |
| KV Rating | 890KV 760KV 435KV(optional) |
| Rotor Poles | 14 |
| Input Voltage | 2-6 cells lithium battery or 5-18 cells NiCd battery |
| Output | Continuous 60A, Burst 80A |
| Bec | 5V/6V 8A |
| Item Weight | 513.4 g |
| Package Size (cm) | 20*19*9 |
| Shipped Weight | 533.4 g |
SURPASS HOBBY C50 Series V2 890KV 760KV 435KV Brushless Outrunner Motor 60A 80A 100A ESC Combo Set for RC Fixed Wing Plane Airplane Aircraft Power System Upgrade Parts
Features:
1. 14 pole hi-torque rotor design, stable output power.
2. Fits all fixed wing aircraft model.
3. CNC machined 6061 T6 aluminum front and rear cover.
4. Precision balanced rotor, smoothness for best reliability and maximum RPM.
5. High purity copper windings maximizes efficiency.
6. Precision engineered for maximum energy conversion.

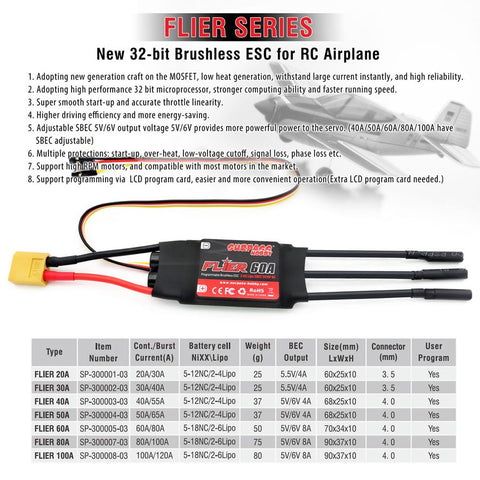

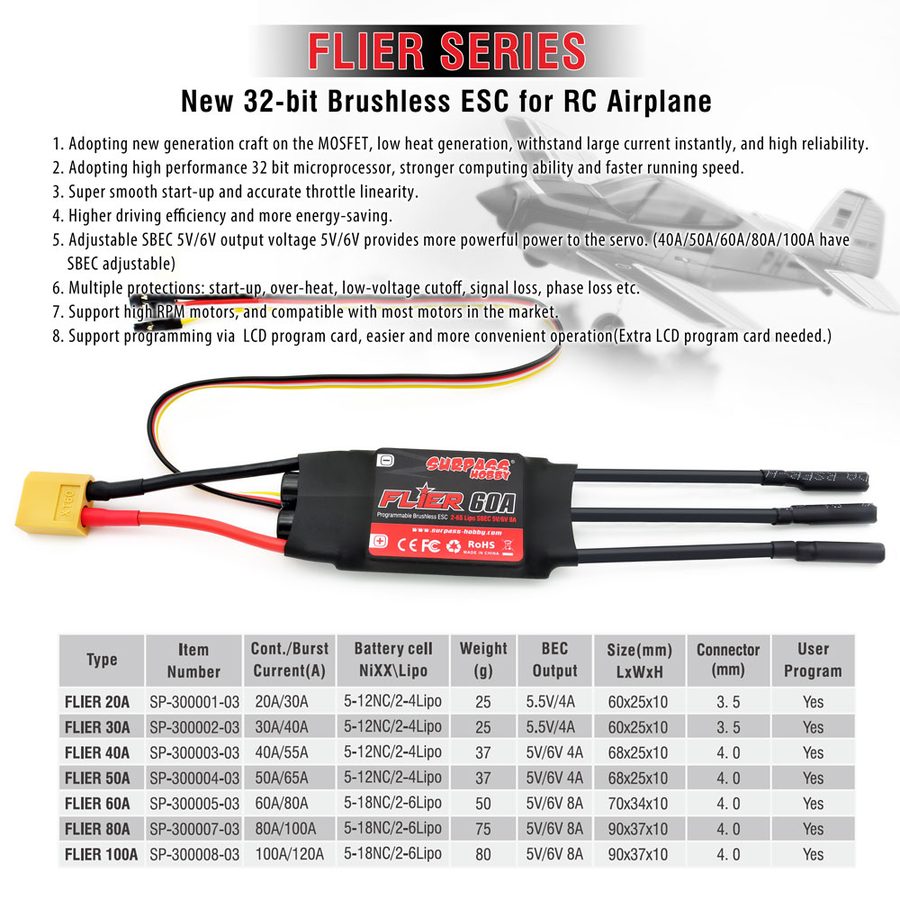

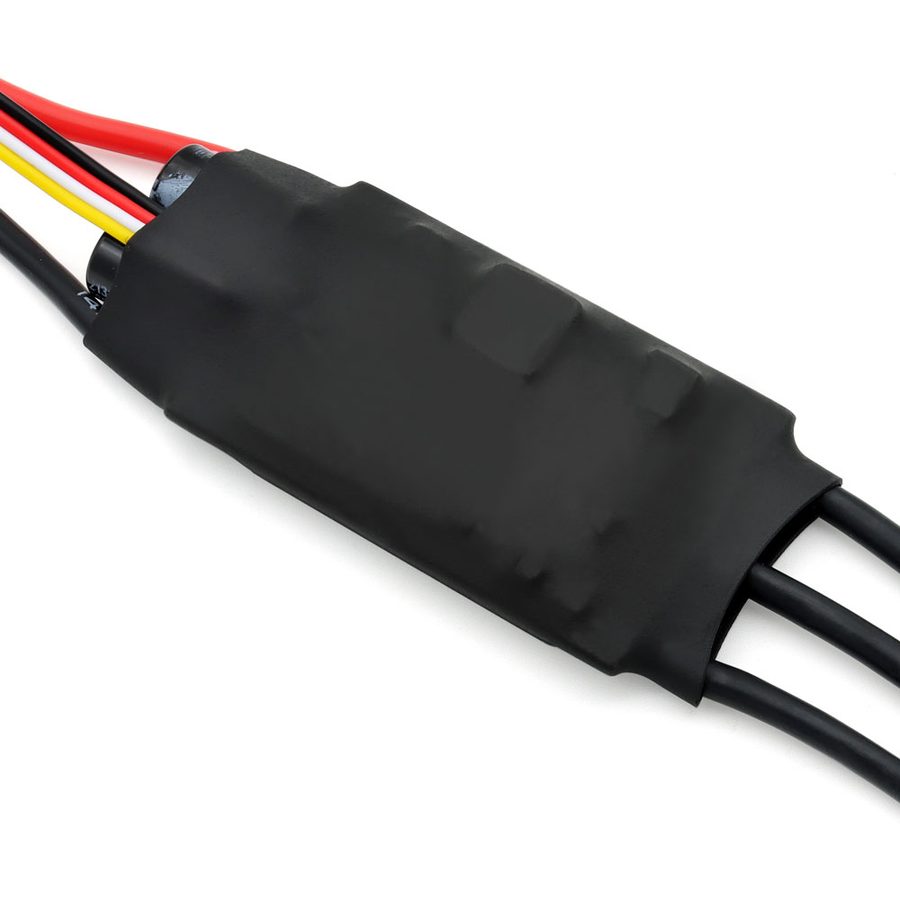

ESC
1. Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.
2. Adopting high performance 32 bit microprocessor, stronger computing ability and faster running speed.
3. Super smooth start-up and accurate throttle linearity.
4. Higher driving effciency and more energy-saving.
5. Adiustable SBEC 5V/6V output voltage 5V/6V provides more powerful power to the servo. (40A/50A/60A/80A/100A have
SBEC adjustable)
6. Multiple protections: start-up, over-heat, low-voltage cutoff, signal loss, phase loss etc.
7. Support high RPM motors, and compatible with most motors in the market.
8. Support programming via LCD program card, easier and more convenient operation(Extra LCD program card needed.)
Descriptions:

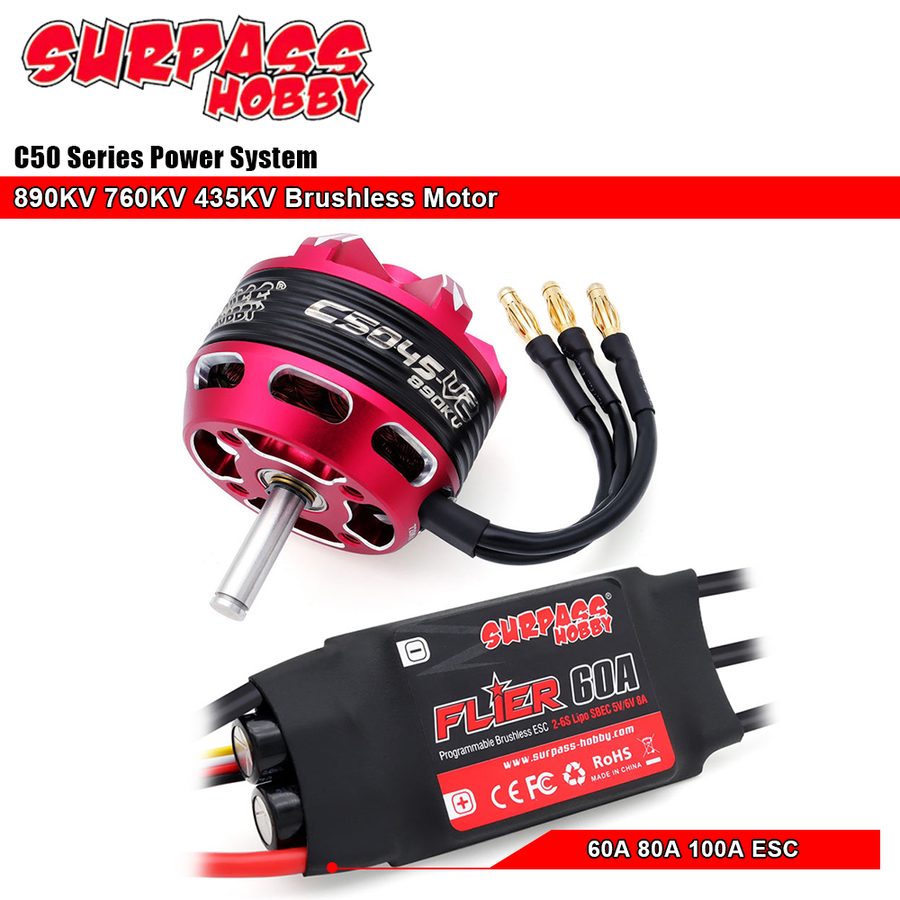

C50 Series V2 brushless motor ESC combo set for RC Fixed Wing Plane. 14 pole, CNC machined 6061-T6 heat sink, excellent heat dissipation; profession, with excellent start-up,acceleration and linearity features, strong resistant current capability.
Specification:

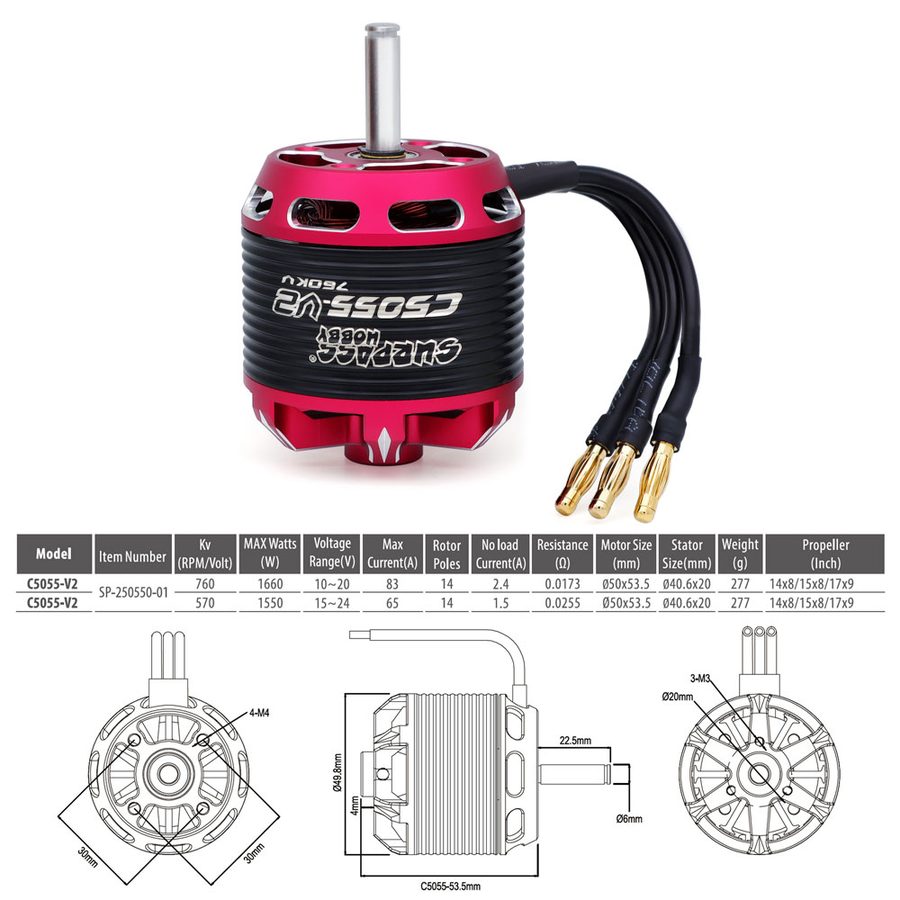

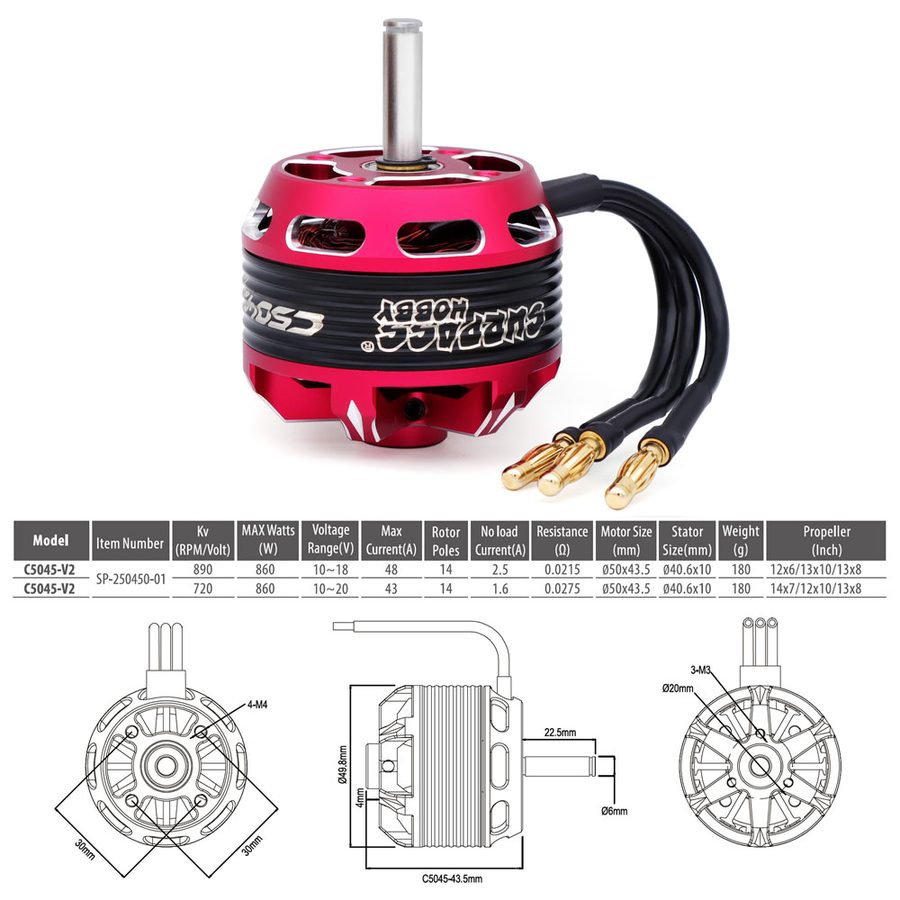

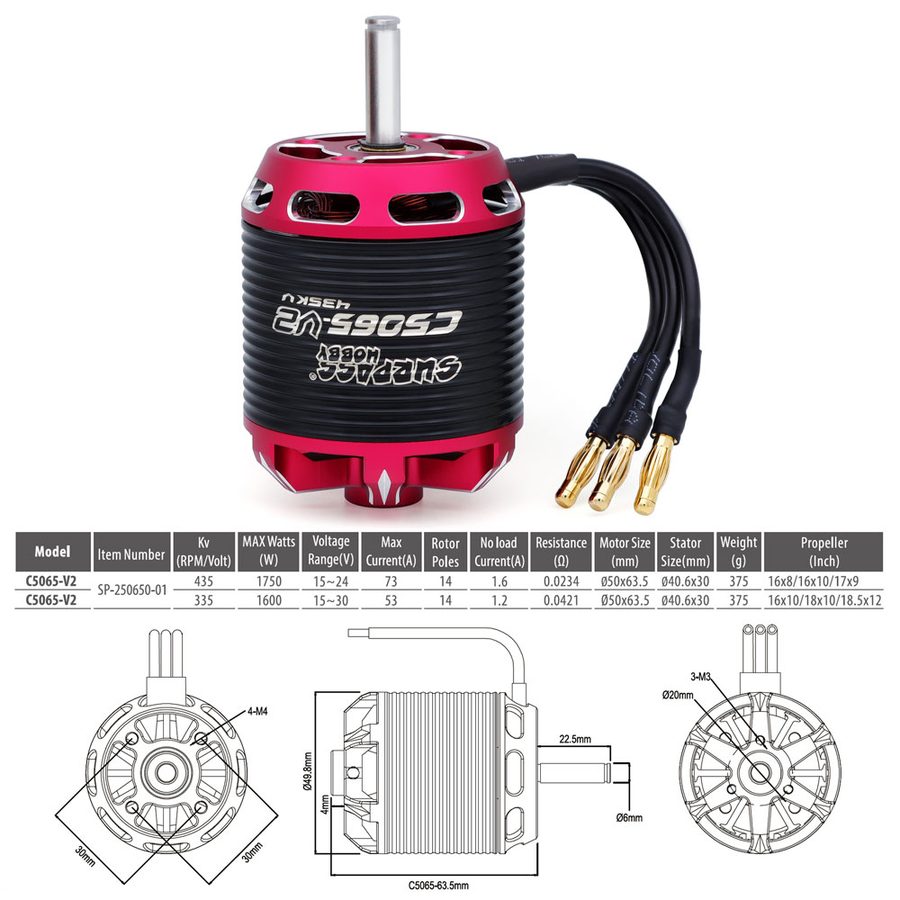

Motor
Item name: C5045-V2 C5055-V2 C5065-V2
KV: 890KV 760KV 435KV(optional)
Rotor poles: 14
ESC
60A
Input Voltage: 2-6 cells lithium battery or 5-18 cells NiCd battery.
Output: Continuous 60A, Burst 80A.
BEC: 5V/6V 8A.
80A
Input Voltage: 2-6 cells lithium battery or 5-18 cells NiCd battery.
Output: Continuous 80A, Burst 100A.
BEC: 5V/6V 8A.
100A
Input Voltage: 2-6 cells lithium battery or 5-18 cells NiCd battery.
Output: Continuous 100A, Burst 120A.
BEC: 5V/6V 8A.
Please see pictures for detailed parameters
Package list:
1 x Brushless Motor
1 x Brushless ESC
